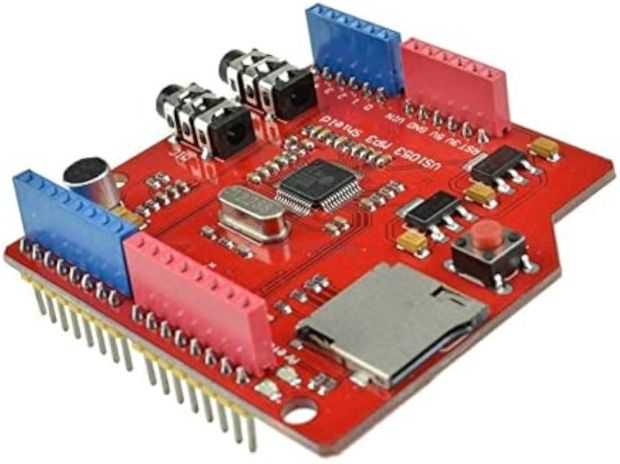

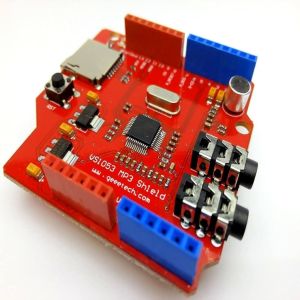

The VS1053 MP3 Recording Module Development Board is an audio processing and playback module that can be used with an Arduino UNO or similar microcontroller boards. It is designed to handle MP3 encoding/decoding and recording, making it ideal for audio-related projects, such as creating audio recorders, MP3 players, or sound effects generators. The board uses the VS1053 chip, which is a high-quality audio decoder and encoder IC.

Key Features of the VS1053 MP3 Recording Module:

1. MP3 Playback and Recording:

   • The VS1053 chip supports MP3 decoding (for playback) and MP3 encoding (for recording). This makes it suitable for applications where you need to record audio in MP3 format, store it on an SD card, or play MP3 files stored on the SD card.

2. High-Quality Audio:

   • The VS1053 module supports high-quality audio playback with 16-bit audio resolution and sample rates from 8 kHz to 48 kHz. This ensures good sound quality for both playback and recording.

3. Onboard SD Card Slot:

   • The module has a built-in microSD card slot for storing MP3 files (for playback) or audio recordings. This allows you to save and access large audio files directly from the SD card.

4. GPIO Pins:

   • The module exposes several GPIO pins (General Purpose Input/Output), which you can use to control other devices (such as buttons, sensors, or LEDs) or interact with external hardware in your project.

5. I2S Interface:

   • The module communicates with the microcontroller using the I2S (Inter-IC Sound) interface, which is a standard for audio data transfer. This ensures a high-quality audio signal transfer between the module and the Arduino.

6. Compatible with Arduino:

   • The VS1053 module is compatible with Arduino boards (like the Arduino UNO, Mega, Leonardo, etc.). It connects to the microcontroller through standard SPI (Serial Peripheral Interface) or I2S communication, depending on the specific application.

7. Power Supply:

   • The module operates on 3.3V to 5V and can be powered directly from the Arduino board's power supply (via the 5V pin). It is important to check the voltage requirements of the module and ensure your Arduino board can provide enough power.

8. External Audio Amplifier:

   • The module can output audio to external speakers via the analog audio output (LINE OUT) or stereo headphone jack, but you may need an external amplifier depending on the volume requirements of your speakers.

Applications:

• Audio Recorders: Create MP3 recorders where the VS1053 module records audio from a microphone (through the analog input), compresses it into MP3 format, and stores it on the SD card.
• MP3 Players: Use the module to build an MP3 player that plays audio files stored on an SD card.
• Sound Effects: Trigger different audio files stored on the SD card as sound effects in response to user inputs, sensors, or events.
• Voice-Based Systems: Incorporate recorded audio prompts or responses into a system, such as in a voice-controlled system.

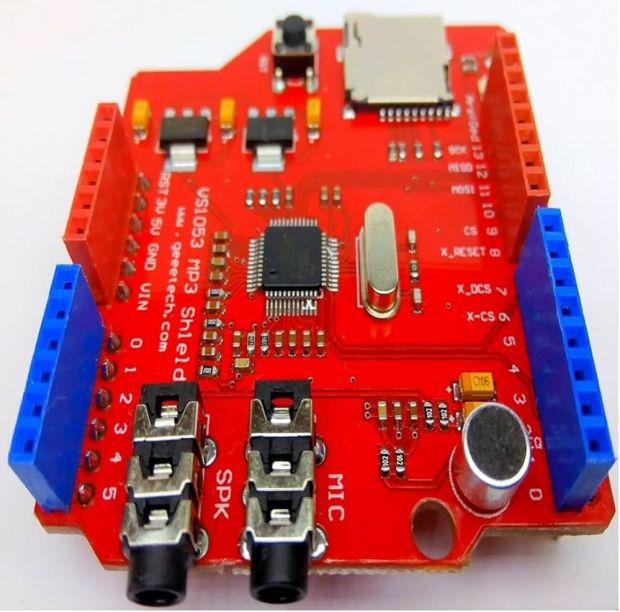

Pinout:

Here’s a basic pinout description for connecting the VS1053 MP3 Recording Module to an Arduino UNO:

• VCC: Power supply (3.3V to 5V)
• GND: Ground
• MISO: Master In Slave Out (SPI interface)
• MOSI: Master Out Slave In (SPI interface)
• SCK: Serial Clock (SPI interface)
• CS: Chip Select for SPI communication
• SD_CS: Chip Select for the SD card module
•
•
•
• DREQ: Data Request p
• in (used to notify w
•
•
• hen the VS1053 module is ready for data transmission)
• RESET: Reset pin for the module

Example Code for MP3 Playback:

Here is a simple example of using the VS1053 module with an Arduino UNO to play an MP3 file from an SD card:

#include
#include
#include

// Pin assignments for SPI and SD card
#define SD_CS    4   // SD card chip select
#define MP3_CS   6   // VS1053 chip select
#define MP3_DCS  7   // Data chip select
#define MP3_DREQ 3   // Data request (from VS1053 to Arduino)

// Create an instance of the VS1053 class
VS1053 mp3_player(MP3_CS, MP3_DCS, MP3_DREQ);

void setup() {
  Serial.begin(9600);
  pinMode(SD_CS, OUTPUT);
  pinMode(MP3_CS, OUTPUT);
  pinMode(MP3_DCS, OUTPUT);
  pinMode(MP3_DREQ, INPUT);

  // Initialize SD card
  if (!SD.begin(SD_CS)) {
    Serial.println("SD card initialization failed!");
    return;
  }
  Serial.println("SD card initialized.");

  // Initialize the VS1053 MP3 player
  if (!mp3_player.begin()) {
    Serial.println("VS1053 initialization failed!");
    return;
  }
  Serial.println("VS1053 initialized.");

  // Start playing MP3 from SD card
  File mp3File = SD.open("test.mp3");
  if (mp3File) {
    Serial.println("Playing MP3...");
    mp3_player.playStream(mp3File);
  } else {
    Serial.println("Failed to open MP3 file.");
  }
}

void loop() {
  // Continuously check for data request to maintain playback
  mp3_player.feedBuffer();
}

Example Code for MP3 Recording:

To record audio in MP3 format, you'll need to set up the VS1053 module in encoding mode and store the recorded data to an SD card. The code will be a bit more complex since it involves managing the recording process, controlling the input microphone (if required), and encoding the audio.

Conclusion:

The VS1053 MP3 Recording Module Development Board is a powerful tool for creating audio-centric Arduino projects. Whether you need to build an MP3 player, record audio, or implement sound effects, this module offers both decoding and encoding capabilities, a microSD card interface, and high-quality audio handling. By using it with an Arduino UNO, you can add audio processing to your projects without needing a complicated setup.
