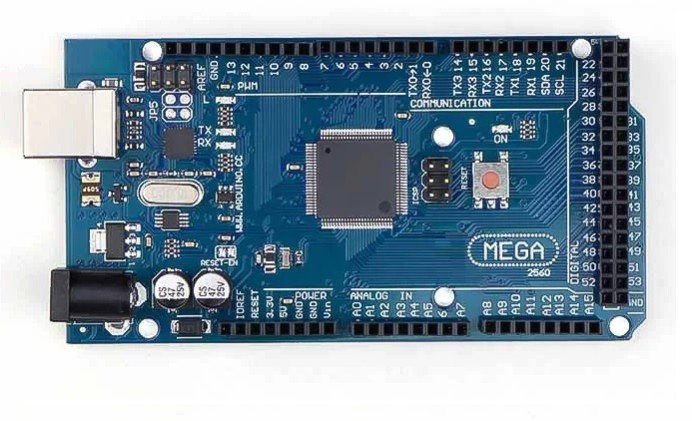

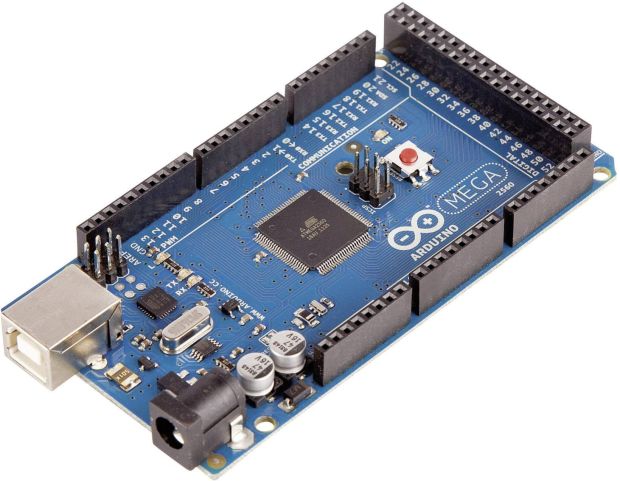

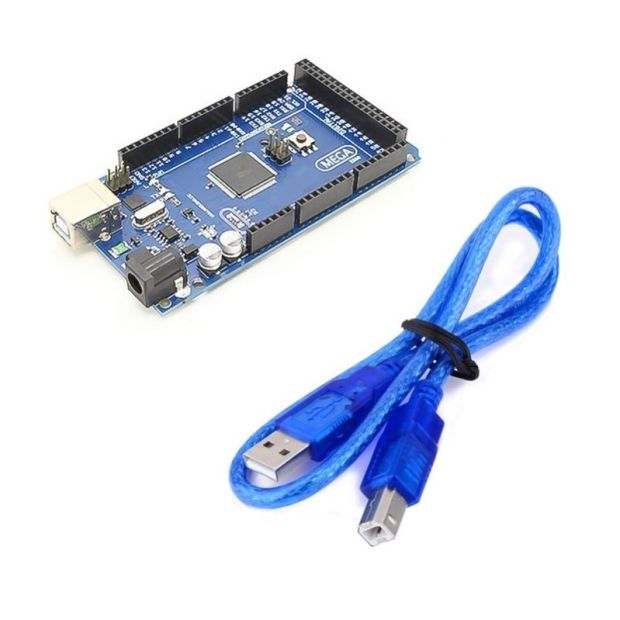

The Arduino Mega is a microcontroller board based on the ATmega2560 chip. It is one of the larger boards in the Arduino family and offers significantly more I/O pins and features compared to other Arduino boards like the Uno or Nano. Here's a detailed description of the Arduino Mega:

Key Features:

1. Microcontroller:

   • ATmega2560 microcontroller running at 16 MHz.
   • It has 256 KB of Flash memory for storing your program (of which 8 KB is used by the bootloader), 8 KB of SRAM, and 4 KB of EEPROM.

2. Operating Voltage:

   • 5V via USB or external power supply.

3. Input Voltage (recommended):

   • 7-12V.

4. Digital I/O Pins:

   • 54 (of which 15 provide PWM output).

5. Analog Input Pins:

   • 16.

6. UARTs (Serial Communication):

   • 4.

7. SPI (Serial Peripheral Interface) Communication:

   • 1.

8. I2C (Inter-Integrated Circuit) Communication:

   • 1.

9. Flash Memory:

   • 256 KB (8 KB used by bootloader).

10. SRAM:

    • 8 KB.

11. EEPROM:

    • 4 KB.

12. Clock Speed:

    • 16 MHz.

13. Power Supply:

    • Can be powered via USB connection or an external power supply (7-12V DC).

14. Reset Button:

    • Used to reset the microcontroller.

15. USB Connection:

    • Used for uploading sketches from your computer to the Arduino board.

16. Compatibility:

    • Compatible with most shields designed for the Arduino Uno and Mega.

Usage:

• The Arduino Mega is suitable for projects requiring a large number of digital and analog I/O pins.
• It is commonly used in projects that involve multiple sensors, actuators, displays, or complex communication protocols.
• Ideal for projects requiring more memory and processing power than what is offered by smaller Arduino boards.

Example Applications:

• Robotics projects.
• Home automation systems.
• Data logging and monitoring projects.
• Control systems with multiple inputs and outputs.
• Prototyping and development of complex embedded systems.

Programming:

• Programmed using the Arduino IDE, which supports a simplified version of C++.
• Libraries and example codes are available for various sensors, actuators, and communication protocols.

Considerations:

• Due to its larger size and higher power consumption, it may not be suitable for all projects where size and power efficiency are critical.
• It provides a significant number of I/O pins and features, making it versatile but also potentially more complex to work with compared to smaller Arduino boards.

The Arduino Mega is a powerful development board suitable for a wide range of projects requiring extensive I/O capabilities and processing power. Its versatility and compatibility with a wide range of shields and sensors make it a popular choice among hobbyists, educators, and professionals working on complex embedded systems and robotics projects.
