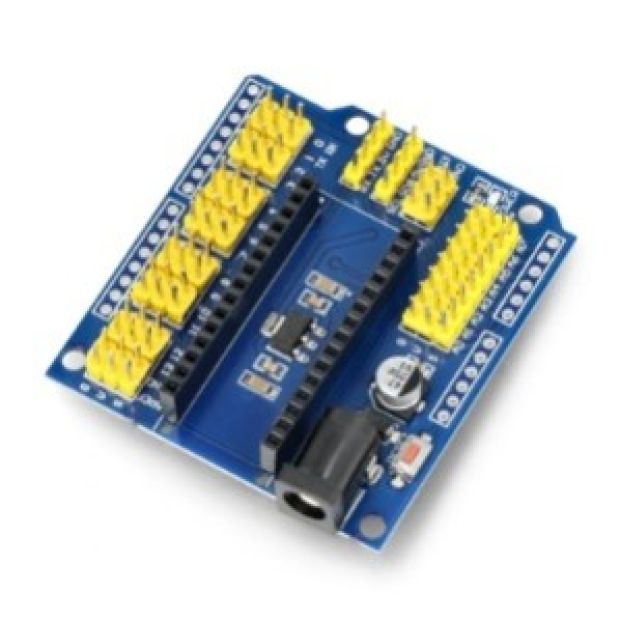

The Nano I/O Expansion Sensor Shield for Arduino is an extension board designed specifically for the Arduino Nano that simplifies the process of connecting various sensors, modules, and peripherals to the Nano. This shield provides easy-to-access connections and additional functionality by expanding the available input/output pins, making it easier to interface the Arduino Nano with external components.

Key Features of the Nano I/O Expansion Sensor Shield:

1. Compatibility with Arduino Nano:

   • This shield is designed to fit directly on the Arduino Nano, utilizing its pins and extending the number of available connections for external devices. The shield aligns with the Nano’s 40-pin header layout, making it easy to stack the two together.

2. Additional I/O Pins:

   • The shield provides access to extra digital I/O pins and analog input pins. Typically, the Arduino Nano has a limited number of accessible pins for sensors and actuators, but the expansion shield offers more convenient pinouts for connecting peripherals.

3. Multiple Sensor Connections:

   • It expands the Nano’s capability to connect various sensors like temperature, humidity, motion, light, sound, or distance sensors. The shield often includes pin headers specifically designed for these types of sensors, so you don't have to worry about wiring up each sensor manually.

4. Motor and Servo Control:

   • Many Nano I/O expansion shields also provide dedicated pins for controlling DC motors, stepper motors, or servos. These pins are often equipped with motor driver ICs or H-bridge circuits that allow you to control motors with ease.

5. External Power Supply:

   • The shield generally includes a power supply input for external power (e.g., DC 5V-12V), which can be used to power connected components (e.g., motors, sensors). This is especially useful for powering components that require more current than the Arduino can supply directly from its onboard voltage regulator.

6. Communication Protocols:

   • It may include pins for common communication protocols like I2C, SPI, and UART, which are often used to connect advanced sensors, displays, and other peripherals.
   • Some shields come with level shifters or logic level converters, which are used to connect 3.3V logic devices to 5V systems, ensuring compatibility between different voltage levels.

7. Breadboard-Friendly:

   • The shield typically exposes its pins in a breadboard-friendly format, allowing you to easily connect jump wires or place sensors and modules on a breadboard for prototyping.

8. Stackable Design:

   • In some cases, the Nano I/O shield is stackable, allowing you to stack multiple shields on top of the Arduino Nano to expand its capabilities even further (for example, adding more sensors or motor drivers). The shield should not interfere with other shields, as it provides access to the Nano’s pins.

Applications:

The Nano I/O Expansion Sensor Shield is designed for use in a wide range of electronics and IoT projects that require more I/O capacity, including:

1. Robotics:

   • Control multiple motors and servos to drive robot arms, mobile robots, or other robotic systems. Use sensors to detect obstacles, measure distances, and control movements.

2. Home Automation:

   • Integrate sensors such as motion detectors, temperature sensors, and light sensors to automate devices like fans, lights, or HVAC systems.

3. Sensor Networks:

   • Create wireless or wired sensor networks for collecting data from multiple sensors, processing the data with the Arduino Nano, and sending it to other devices or systems.

4. Prototyping:

   • Easily prototype circuits and devices by using the shield’s convenient access to power and I/O pins, enabling the connection of different modules without complex wiring.

5. IoT Devices:

   • Use sensors to collect data from the environment, control actuators remotely, or interact with other IoT devices by integrating the shield into your project.

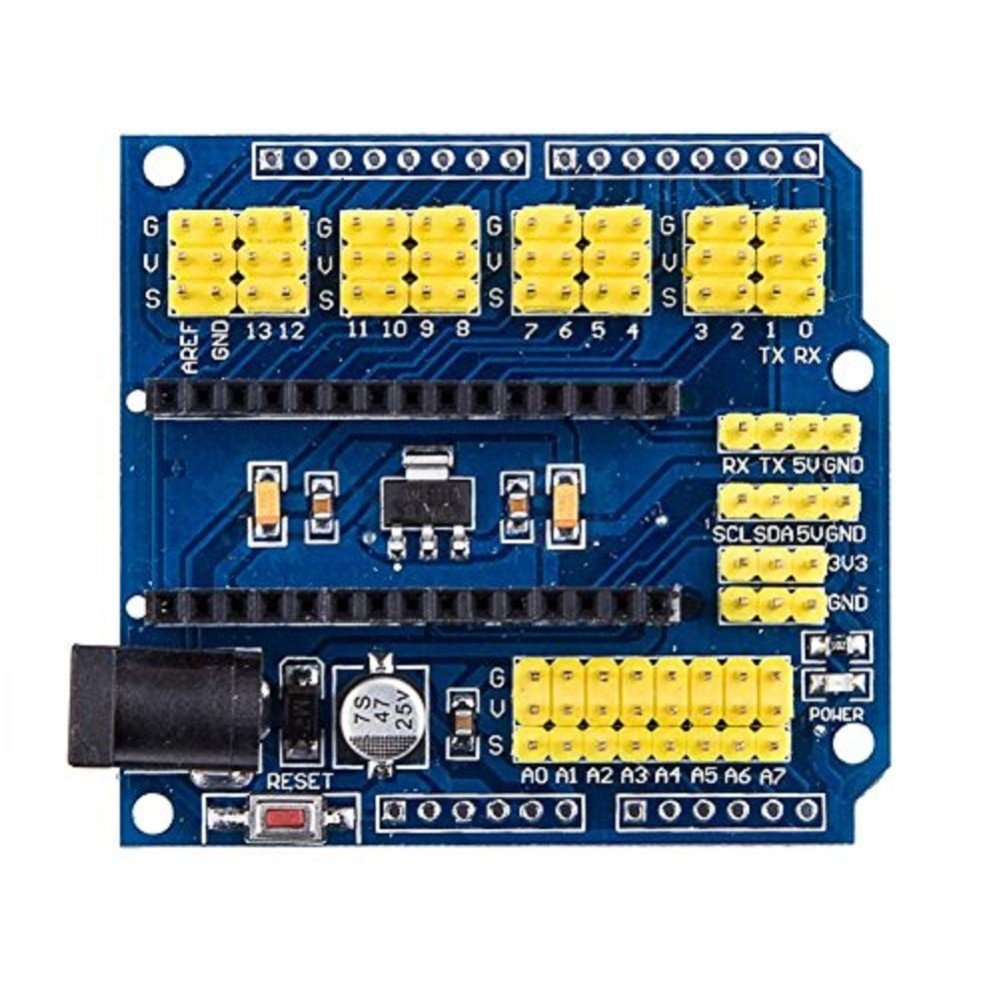

Pinout and Connections:

The Nano I/O Expansion Sensor Shield typically provides various pin headers and connections for different functions. Below is an example of how the pins are usually arranged:

• Digital I/O Pins (D0-D13): For connecting sensors, buttons, or actuators that require digital input or output.
• Analog Input Pins (A0-A7): For connecting analog sensors such as temperature sensors, light sensors, etc.
• PWM Pins (D3, D5, D6, D9, D10, D11): For controlling PWM-based devices like servos or dimmable LEDs.
• I2C Pins (SDA, SCL): For connecting I2C-based devices (e.g., displays, sensors).
• SPI Pins (MISO, MOSI, SCK, SS): For connecting SPI-based devices.
• Motor Driver Pins (if available): For controlling motors or servos with additional power.
• External Power Supply (Vin, GND): For providing power to the shield and external devices.

Example Project:

One possible project could involve building a home automation system using a temperature sensor (e.g., DHT11), motion sensor (e.g., PIR sensor), and controlling a fan with the Arduino Nano. The I/O expansion shield would make it easier to connect all of these components and power them with an external supply.

Example Code (Arduino) for a Simple Temperature Sensor:

Here’s an example of using the Nano I/O Expansion Sensor Shield to read a temperature sensor and control a fan based on the temperature.

// Include necessary libraries
#include

// Define pin for temperature sensor
#define DHTPIN A0      // Temperature sensor connected to analog pin A0
#define DHTTYPE DHT11  // DHT 11 sensor type

DHT dht(DHTPIN, DHTTYPE); // Initialize DHT sensor

int fanPin = 9;  // Fan control connected to digital pin 9

void setup() {
  // Initialize the serial communication
  Serial.begin(9600);
  dht.begin();  // Start the DHT sensor
  pinMode(fanPin, OUTPUT);  // Set fan pin as output
}

void loop() {
  // Read the temperature from the sensor
  float temperature = dht.readTemperature();

  // Print temperature to serial monitor
  Serial.print("Temperature: ");
  Serial.print(temperature);
  Serial.println(" °C");

  // If the temperature is above a threshold, turn on the fan
  if (temperature > 30.0) {
    digitalWrite(fanPin, HIGH);  // Turn on the fan
  } else {
    digitalWrite(fanPin, LOW);  // Turn off the fan
  }

  delay(2000);  // Wait for 2 seconds before the next reading
}

Conclusion:

The Nano I/O Expansion Sensor Shield for Arduino is a versatile and convenient accessory that extends the functionality of the Arduino Nano by offering additional I/O pins and sensor connections. It simplifies the process of connecting and controlling a wide range of sensors, motors, and other peripherals. Whether you're working on robotics, home automation, sensor networks, or IoT projects, this shield makes the development process easier and more efficient.
