The NodeMCU is a popular open-source development platform for creating Internet of Things (IoT) projects. It integrates the functionality of the ESP8266 WiFi module with an easy-to-use development board and a Lua-based programming environment or the popular Arduino IDE. Here's a detailed description of the NodeMCU:

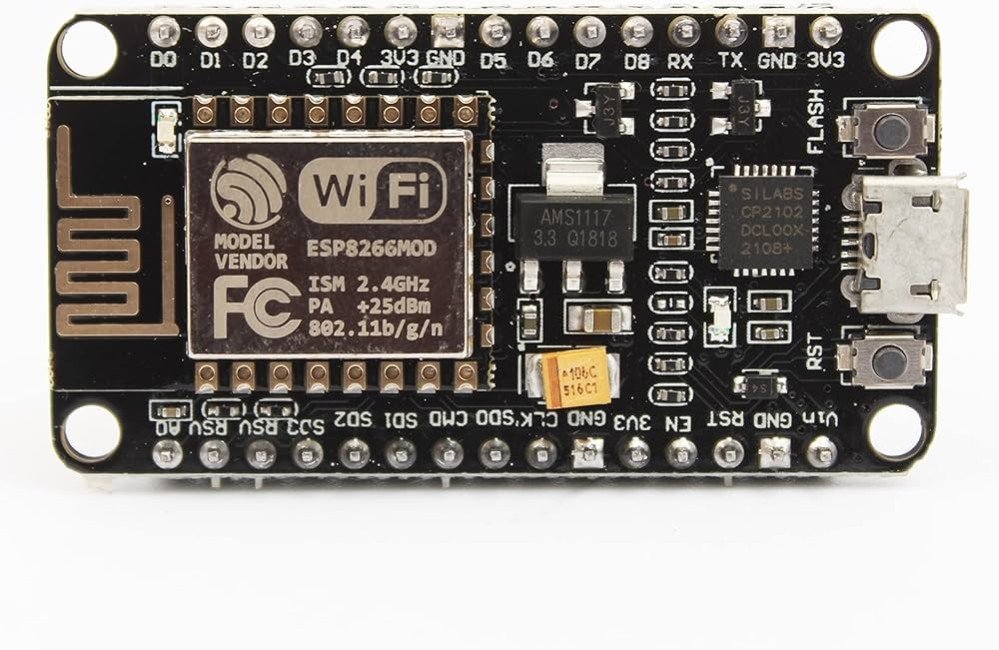

NodeMCU Overview

1. Microcontroller:

   • ESP8266: The core of the NodeMCU is the ESP8266 microcontroller, which is a low-cost WiFi-enabled chip with integrated TCP/IP stack and microcontroller functionality.

2. Operating Voltage:

   • 3.3V: The NodeMCU operates at 3.3V. The onboard voltage regulator can convert a higher voltage from an external source to 3.3V.

3. Input Voltage:

   • 5V: Can be powered through the USB connection (5V) or an external power source connected to the Vin pin.

4. Flash Memory:

   • 4 MB: The NodeMCU typically has 4 MB of Flash memory for storing firmware and data.

5. RAM:

   • 80 KB: The ESP8266 chip has around 80 KB of SRAM available for runtime operations.

6. Digital I/O Pins:

   • 17 GPIO Pins: General Purpose Input/Output pins that can be used for various digital input/output operations.

7. Analog Input Pins:

   • 1 ADC Pin: The analog-to-digital converter (ADC) pin can read analog signals and convert them to digital values (10-bit resolution).

8. PWM (Pulse Width Modulation):

   • Supported on several GPIO pins, useful for tasks like controlling the speed of motors or brightness of LEDs.

9. Communication Interfaces:

   • UART (Serial Communication): Used for debugging and communicating with other serial devices.
   • SPI (Serial Peripheral Interface): For connecting to various peripherals.
   • I2C (Inter-Integrated Circuit): For connecting sensors and other devices using I2C protocol.

10. Onboard Features:

    • USB-to-Serial Converter: Facilitates programming and serial communication via a USB connection.
    • Built-in LED: Often connected to GPIO 2, useful for status indicators and debugging.

Software and Development:

• Lua Script: NodeMCU originally came with a firmware that supports Lua scripting. This makes it easy to develop applications directly using Lua scripts, which can be uploaded via a web interface or serial connection.
• Arduino IDE: The NodeMCU can also be programmed using the Arduino IDE, which is widely used in the maker community. This requires installing the ESP8266 board support package in the Arduino IDE.
• PlatformIO: Another popular development environment that supports NodeMCU for more advanced features and project management.

Example Connections:

To get started with NodeMCU, you might connect it to various peripherals like sensors, actuators, or other devices. Here’s an example setup to connect an LED:

Wiring Example:

• NodeMCU Pin D1 (GPIO 5) to the Anode (longer leg) of an LED.
• Cathode (shorter leg) of the LED to a 330-ohm resistor.
• The other end of the resistor to GND.

#include
#include

#define SS_PIN 10  // Pin 10 connected to SDA on the RC522
#define RST_PIN 9  // Pin 9 connected to RST on the RC522

MFRC522 mfrc522(SS_PIN, RST_PIN); // Create MFRC522 instance

void setup() {
  // Start the Serial Monitor for debugging
  Serial.begin(9600);

  // Initialize SPI communication
  SPI.begin();

  // Initialize the MFRC522 RFID module
  mfrc522.PCD_Init();

  Serial.println("Place your RFID card near the reader...");
}

void loop() {
  // Check if a new RFID card is detected
  if (mfrc522.PICC_IsNewCardPresent()) {
    // Read the RFID card's UID
    if (mfrc522.PICC_ReadCardSerial()) {

      // Print UID of the RFID card
      Serial.print("UID tag: ");
      for (byte i = 0; i < mfrc522.uid.size; i++) {
        Serial.print(mfrc522.uid.uidByte[i] < 0x10 ? " 0" : " ");
        Serial.print(mfrc522.uid.uidByte[i], HEX);
      }
      Serial.println();

      // Stop reading the RFID card
      mfrc522.PICC_HaltA();
    }
  }
}
