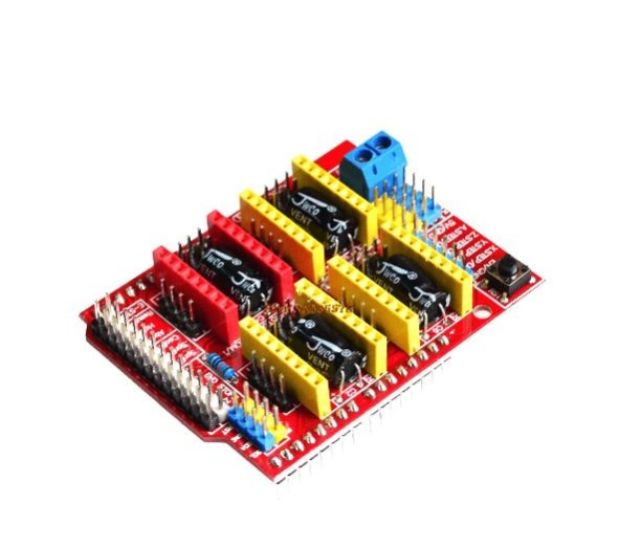

An Arduino CNC Shield is a specialized board designed to interface with an Arduino microcontroller to control CNC (Computer Numerical Control) machines such as milling machines, lathes, and 3D printers. It simplifies the process of connecting the Arduino to stepper motors, endstops, and other essential components of a CNC system.

Key Features:

1. Stepper Motor Drivers:

   • Driver Slots: Typically, CNC shields come with slots for stepper motor drivers like A4988 or DRV8825, which control the movement of the motors.

2. Motor Control:

   • Axis Control: Usually supports control of multiple axes (commonly X, Y, Z, and sometimes an additional axis or spindle control).

3. Endstops:

   • Limit Switches: Includes connectors for endstop switches to prevent the machine from moving beyond its physical limits.

4. Power Supply:

   • Power Input: Provides connections for powering the stepper motors and the shield itself, often through a dedicated power supply.

5. Connectors:

   • Input/Output Ports: Includes various ports for connecting motors, endstops, and other peripherals.

6. Compatibility:

   • Arduino Boards: Designed to be compatible with common Arduino boards like the Arduino Uno or Mega.

Applications:

1. CNC Machines:

   • Milling Machines: Controls the movement of the milling head.
   • Lathes: Manages the rotation and movement of the lathe.
   • 3D Printers: Used to control the movement of the print head and bed.

2. Robotics:

   • Precision Movement: Used in robotic arms and other automated systems requiring precise movement control.

3. Automation Projects:

   • DIY CNC Projects: Ideal for custom-built CNC machines or automated tools.

Selecting the Right CNC Shield:

1. Motor Driver Compatibility:

   • Driver Types: Ensure the shield is compatible with the stepper motor drivers you plan to use (e.g., A4988, DRV8825).

2. Axis Support:

   • Number of Axes: Choose a shield that supports the number of axes you need for your project.

3. Arduino Compatibility:

   • Board Compatibility: Ensure the shield is designed to work with the Arduino board you are using.

4. Power Requirements:

   • Voltage and Current: Verify that the shield and power supply can handle the voltage and current requirements of your motors.

5. Features:

   • Additional Functions: Check for additional features like spindle control, cooling fans, or LCD support if needed.

Wiring and Installation:

1. Installing the Shield:

   • Mount the Shield: Place the CNC shield on top of the Arduino board, aligning the pins. Secure it with any provided clips or mounting hardware.

2. Connecting Motors:

   • Motor Connections: Connect the stepper motors to the motor driver slots on the shield.

3. Connecting Endstops:

   • Limit Switches: Wire the endstops to the designated connectors on the shield.

4. Powering the System:

   • Power Supply: Connect the power supply to the appropriate power input terminals on the shield.

5. Configuring Software:

   • Firmware: Upload the appropriate firmware to the Arduino board (e.g., GRBL) to control the CNC machine.

Example Wiring Diagram:

Here’s a basic wiring diagram for a CNC shield:

Maintenance Tips:

1. Inspect Connections:

   • Check Wiring: Ensure all connections are secure and properly insulated.

2. Monitor Power Supply:

   • Avoid Overload: Ensure the power supply is sufficient for the motors and shield.

3. Test Functionality:

   • Regular Testing: Test the system regularly to ensure it operates correctly.

Purchasing:

• Retailers: Available from electronics suppliers, online retailers like Amazon, eBay, and specialized CNC hardware stores.
• Specifications: Verify the CNC shield’s compatibility with your Arduino board, stepper drivers, and motors.

Example Products:

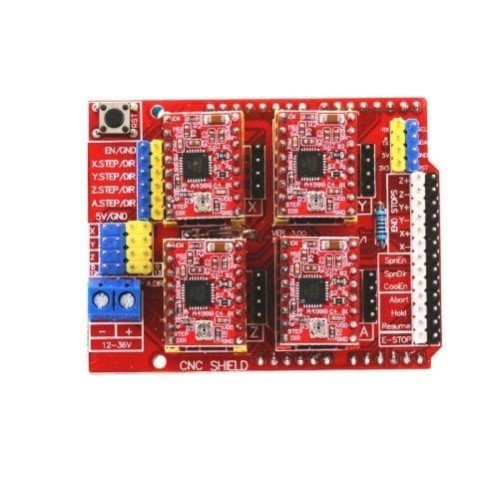

1. Arduino CNC Shield V3:

   • Features: Supports A4988 or DRV8825 drivers, control up to 4 axes, compatible with Arduino Uno.

2. CNC Shield for Arduino Mega:

   • Features: Designed for use with Arduino Mega, often supports more axes and additional features.

By selecting the appropriate Arduino CNC shield and following proper wiring and installation procedures, you can effectively control your CNC machine or automation project, achieving precise and reliable performance.
