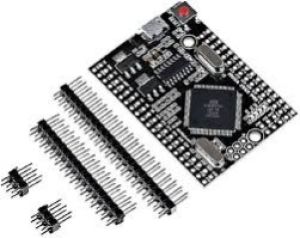

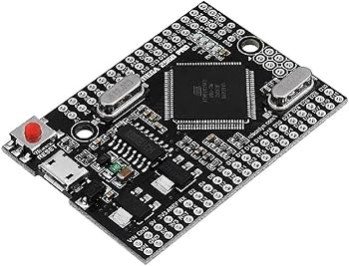

The Arduino Mega Pro Mini CH340 Development Board is a compact and cost-effective version of the Arduino Mega, designed for users who need more I/O pins and memory than the standard Arduino Uno but prefer a smaller, more affordable form factor. The CH340 chip refers to the USB-to-serial converter used in this board, allowing it to communicate with a computer for programming and debugging.

Key Features of the Arduino Mega Pro Mini CH340:

1. Compact Design:

   • The Arduino Mega Pro Mini is a smaller version of the Arduino Mega 2560, and it retains most of the essential features in a more compact, board-friendly form. This makes it ideal for space-constrained projects while still offering the power and functionality of a full-sized Mega.

2. Processor:

   • The board is powered by the ATmega2560 microcontroller, which is the same microcontroller used on the full-sized Arduino Mega. The ATmega2560 features:
     • 256KB of flash memory (for storing code)
     • 8KB of SRAM
     • 4KB of EEPROM
   • This allows for more complex and memory-intensive projects compared to smaller Arduino boards like the Uno.

3. Pinout:

   • The Mega Pro Mini offers 54 digital I/O pins, including 15 PWM (pulse width modulation) outputs.
   • It also has 16 analog input pins, providing ample options for sensors, actuators, and other I/O devices.
   • The Mega Pro Mini provides the same pinout as the regular Arduino Mega 2560 but in a more compact form factor.

4. CH340 USB-to-Serial Converter:

   • The CH340 chip is a USB-to-serial converter that allows the board to communicate with a computer via USB for programming and serial communication. It replaces the FTDI chip used on some Arduino boards, providing a low-cost alternative while maintaining reliable communication.
   • The CH340 chip is commonly used in many inexpensive Arduino-compatible boards, and it supports a variety of operating systems, including Windows, Linux, and macOS.

5. Voltage Options:

   • The board typically operates at either 5V or 3.3V, depending on the version you choose.
   • 5V boards are compatible with most Arduino shields and external devices, while 3.3V boards may be used for low-power, 3.3V logic systems.

6. USB Interface:

   • The Mega Pro Mini typically uses a micro-USB connector to interface with a computer. This is more compact than the traditional Type B USB connector used on full-sized Arduino boards like the Mega 2560.
   • The CH340 chip facilitates communication between the Mega Pro Mini and a computer for uploading sketches (programming the microcontroller) and for serial communication during debugging or data transfer.

7. External Power Supply:

   • The board can be powered through the USB connection, but it also includes a barrel jack or pin headers for an external power supply. This external supply typically ranges from 7V to 12V (depending on the board version) and can be used for projects requiring more power than what the USB connection can provide.

8. Development Environment:

   • Like other Arduino boards, the Arduino Mega Pro Mini CH340 is programmed using the Arduino IDE. This open-source software makes it easy to write and upload sketches (program code) to the board.
   • The board is fully compatible with all the Arduino libraries and shields, which makes it easy to integrate with various sensors, actuators, and other modules.

Pinout Overview:

The Arduino Mega Pro Mini retains the same basic pinout as the Arduino Mega 2560. Here is an overview of its key pins and features:

• Digital I/O Pins (D0 - D53): Up to 54 digital I/O pins for connecting sensors, switches, LEDs, and other devices.
• Analog Input Pins (A0 - A15): 16 analog input pins, useful for reading analog sensors like temperature sensors, light sensors, etc.
• PWM Pins: 15 PWM outputs available on pins D2 to D13 and D44 to D46, useful for controlling motor speeds or dimming LEDs.
• UART (Serial Communication): The board has multiple UART ports for serial communication, making it suitable for more complex applications that require multiple serial devices.
• External Interrupts: The Arduino Mega Pro Mini supports external interrupts on several digital pins, allowing for more advanced event-driven programming.
• Power Pins: The board features multiple power pins such as VCC, GND, 5V, and 3.3V, plus a reset pin.
• I2C and SPI: The board supports I2C and SPI communication, which can be used to interface with a wide range of sensors, displays, and other peripherals.

Use Cases and Applications:

1. Robotics:

   • The Arduino Mega Pro Mini is great for robotics applications due to its large number of I/O pins, PWM control, and compatibility with motor driver shields and sensors. You can control multiple motors, servos, and sensors simultaneously, making it ideal for mobile robots, robotic arms, or other automated systems.

2. Home Automation:

   • This board can be used in home automation projects to control devices like lights, fans, and security systems. With its ample I/O pins, you can easily interface with a variety of sensors (motion, temperature, light) and relays or other actuators.

3. IoT Projects:

   • With additional modules (such as Wi-Fi or Bluetooth modules), the Arduino Mega Pro Mini can be used in Internet of Things (IoT) applications, where data from sensors is collected and sent over a network for monitoring or control.

4. Data Logging:

   • The board's large memory and multiple I/O pins make it perfect for data logging applications where sensors gather data that needs to be stored, processed, and analyzed.

5. Wearables and Portables:

   • Due to its compact size and versatility, the Mega Pro Mini can also be used in wearable or portable projects that require significant processing power and I/O connectivity.

Example Project: LED Control Using Arduino Mega Pro Mini CH340

In this simple example, the Arduino Mega Pro Mini CH340 will control an LED based on the input from a button.

Circuit:

• Connect an LED to digital pin D13 (built-in pin for the Mega Pro Mini).
• Connect a pushbutton between digital pin D2 and GND.
•

Code:

const int ledPin = 13;    // LED pin
const int buttonPin = 2;  // Button pin

int buttonState = 0;      // Variable to hold the button state

void setup() {
  pinMode(ledPin, OUTPUT);      // Set LED pin as output
  pinMode(buttonPin, INPUT);    // Set button pin as input
}

void loop() {
  buttonState = digitalRead(buttonPin);  // Read the button state

  if (buttonState == HIGH) {  // Button pressed
    digitalWrite(ledPin, HIGH);  // Turn on LED
  } else {
    digitalWrite(ledPin, LOW);   // Turn off LED
  }
}

Conclusion:

The Arduino Mega Pro Mini CH340 Development Board offers the same powerful features as the regular Arduino Mega 2560 but in a more compact and cost-effective form. It is ideal for projects that require a large number of I/O pins, more memory, and advanced features like PWM, UART, I2C, and SPI, while still being compatible with the vast ecosystem of Arduino libraries and shields. The inclusion of the CH340 USB-to-serial chip makes it affordable and suitable for hobbyists and engineers who need a compact and reliable platform for their projects.
