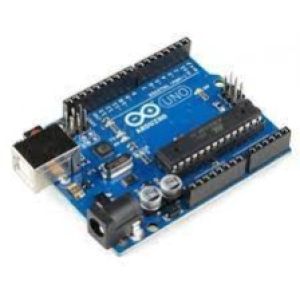

ARDUINO UNO R3 DIP

Arduino Uno Rev3 is a microcontroller board based on the ATmega328P, an 8-bit microcontroller with 32KB of Flash memory and 2KB of RAM. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

( No Reviews )

₹ 487 ^₹699

Order From Whatsapp

Seller Electro Boat

Tags ARDUINO UNO R3 DIP

COD

Cancelable till shipped

7 Days Returnable

Product Details :

Made In :

India

The Arduino Uno R3 DIP is a popular microcontroller board from the Arduino family, based on the ATmega328P microcontroller. It is known for its ease of use and versatility, making it a great choice for both beginners and experienced makers.

Key Features:

Microcontroller: ATmega328P.
Clock Speed: 16 MHz.
Digital I/O Pins: 14 (6 of which can be used as PWM outputs).
Analog Input Pins: 6.
Flash Memory: 32 KB (of which 0.5 KB is used by the bootloader).
SRAM: 2 KB.
EEPROM: 1 KB.
Communication: UART, SPI, and I2C.

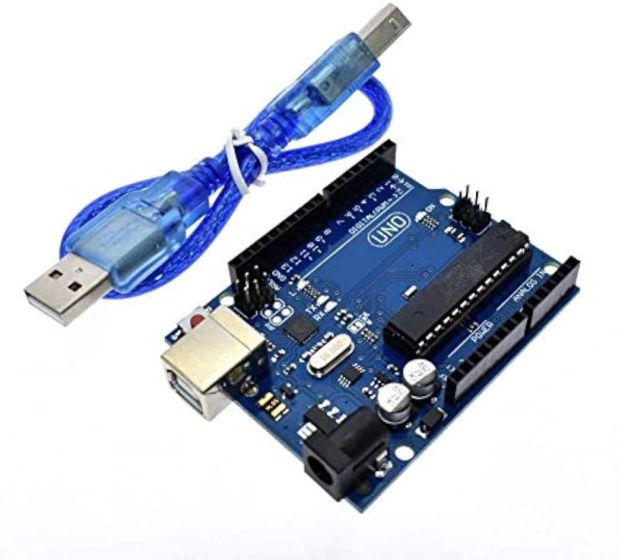

USB Connection: For programming and power.
Power Supply: Can be powered via USB or an external power source (7-12V).

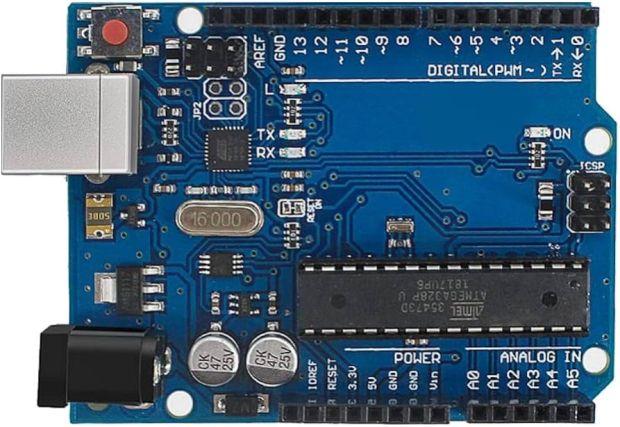

Board Layout:

Power Jack: For external power supply.
USB Connector: For connecting the board to your computer for programming and power.
Digital I/O Pins: For digital input and output.
Analog Input Pins: For reading analog signals.
PWM Outputs: For Pulse Width Modulation control.
Reset Button: To reset the microcontroller.
ICSP Header: For programming the ATmega328P directly.
Power and Status LEDs: For visual feedback of power and activity.

Programming:

Arduino IDE: The Uno R3 is programmed using the Arduino Integrated Development Environment (IDE), which is available for Windows, macOS, and Linux. You write your code in a simplified C++ and upload it to the board via USB.
