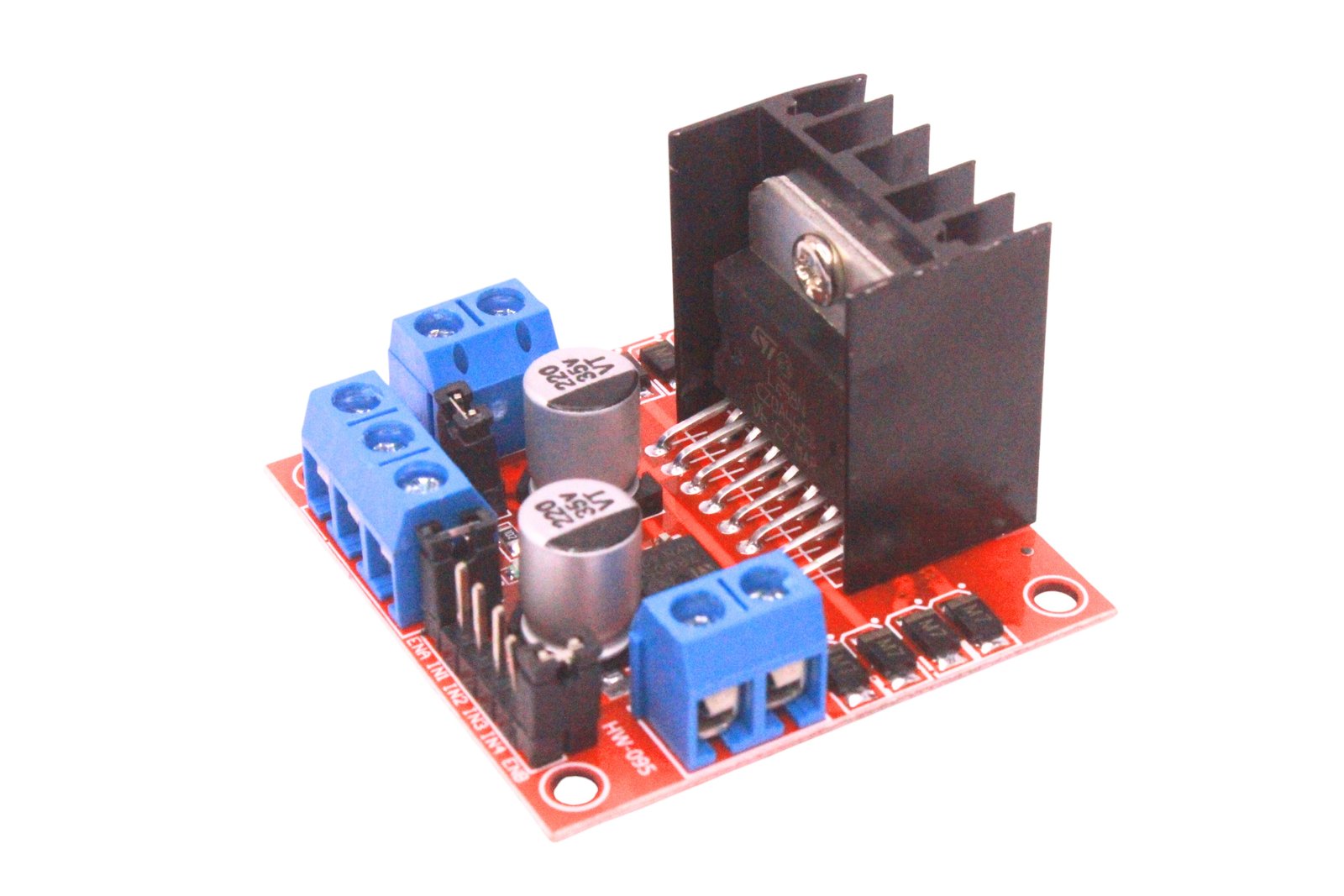

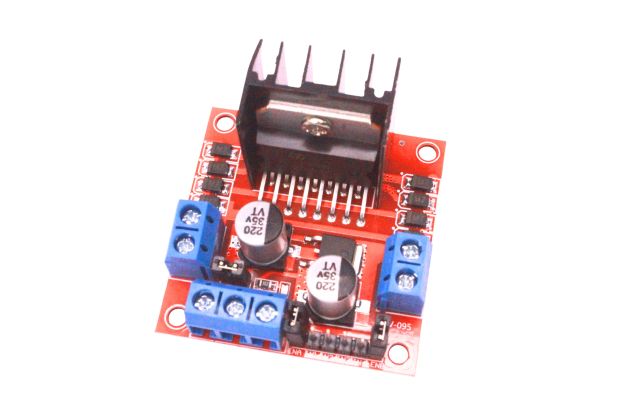

L298N DC Motor Driver for Arduino – Dual H-Bridge 2A DC/Stepper Motor Controller PWM
The L298N is a dual H-Bridge motor driver which allows speed and direction control of two DC motors at the same time. The module can drive DC motors that have voltages between 5 and 35V, with a peak current up to 2A. L298N Dual H-Bridge Motor Driver Module (2A per channel) for controlling DC and stepper motors in Arduino, Raspberry Pi, and robotics applications. Supports PWM speed control and bidirectional rotation for two motors.
₹ 109 ₹149
149
Electro Boat Detailed Product Description:
The L298N Motor Driver Module is a powerful and compact dual H-bridge motor controller that allows you to independently control the speed and direction of two DC motors or a single stepper motor. Built around the robust L298N IC, this module can handle up to 2A per channel with onboard heatsinks for better thermal performance.
It supports PWM (Pulse Width Modulation) for speed control and features onboard 5V regulator, motor direction control inputs, and terminal blocks for easy wiring. Compatible with Arduino, ESP32, STM32, Raspberry Pi, and most microcontrollers, this module is widely used in robotics, automation, RC vehicles, and smart DIY systems.
L298N Dual H-Bridge DC Motor Driver Module – Best for Arduino, Robotics & DIY Projects
The L298N DC Motor Driver Module interfacing with arduino is a high-performance dual H-bridge driver board, ideal for controlling the speed and direction of two DC motors or one stepper motor. It is widely used in Arduino projects, robotics applications, automation systems, and DIY electronics kits.
This module supports 5V to 35V motor operating voltage and can deliver up to 2A current per channel, making it perfect for building line-following robots, smart cars, home automation prototypes, and sensor-based projects. It includes onboard voltage regulator, heat sink, power LED, and enable pins for full motor control.
Compatible with Arduino Uno, Mega, ESP32, Raspberry Pi, and other microcontrollers, the L298N module provides bidirectional control, PWM speed regulation, and reliable motor protection during sudden voltage drops.
Buy L298N motor driver online at the best price in India only on Electroboat – preferred by students, hobbyists, and developers for reliable motor control.
#L298N motor driver for Arduino, #DC motor driver module, buy L298N online India, Arduino motor driver, dual H-bridge controller, robotics motor driver board, motor driver module for smart car.
Key Features:
-
2A Dual H-Bridge Motor Driver using L298N IC
-
Drives 2 DC motors or 1 stepper motor
-
PWM control supported for variable speed
-
Onboard 5V regulator (can power logic circuit)
-
Compatible with Arduino, Raspberry Pi, STM32, ESP32
-
Screw terminals for easy motor/power connections
Technical Specifications:
| Parameter | Specification |
|---|---|
| Driver IC | L298N Dual H-Bridge |
| Motor Voltage (VMS) | 5V to 35V |
| Logic Voltage (VSS) | 5V (onboard 5V regulator included) |
| Current per Channel | Up to 2A (with heatsink) |
| Logic Control | IN1, IN2, IN3, IN4 (direction control) |
| Enable Pins | ENA, ENB (speed via PWM) |
| Output Channels | 2 (OUT1-OUT2, OUT3-OUT4) |
| Dimensions | ~43 × 43 × 27 mm (varies slightly) |
| Built-in 5V Regulator | Yes (Jumper selectable) |
How to Use:
-
Connect Motor Power Supply to
+12VandGNDterminals -
Connect Motors to
OUT1–OUT4(two motors or one stepper) -
Connect Control Pins (IN1–IN4) to Arduino digital I/O
-
Send PWM signals to
ENAandENBto control speed -
Remove the 5V jumper if using external logic supply
Applications:
-
Arduino robot car motor control
-
Line-following robots, obstacle avoidance bots
-
Conveyor belts and mechanical arms
-
Stepper motor control for CNC, 3D printers
-
Home automation motorized systems
Package Includes:
-
1 × L298N Dual Motor Driver Module with onboard heatsink
