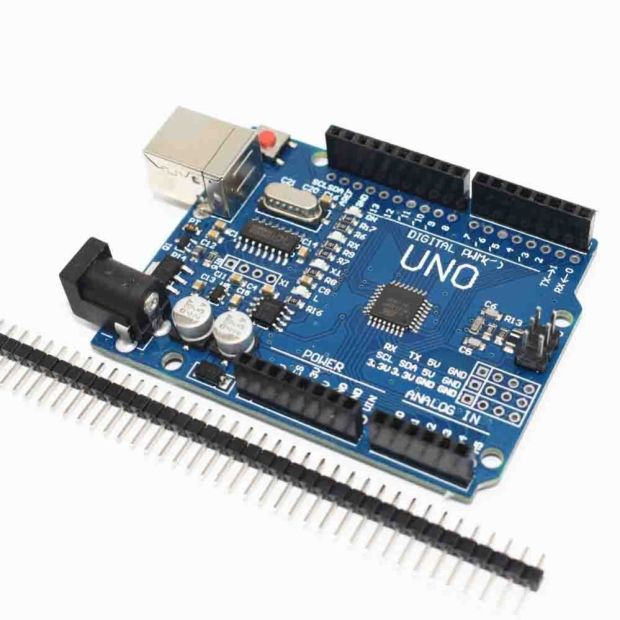

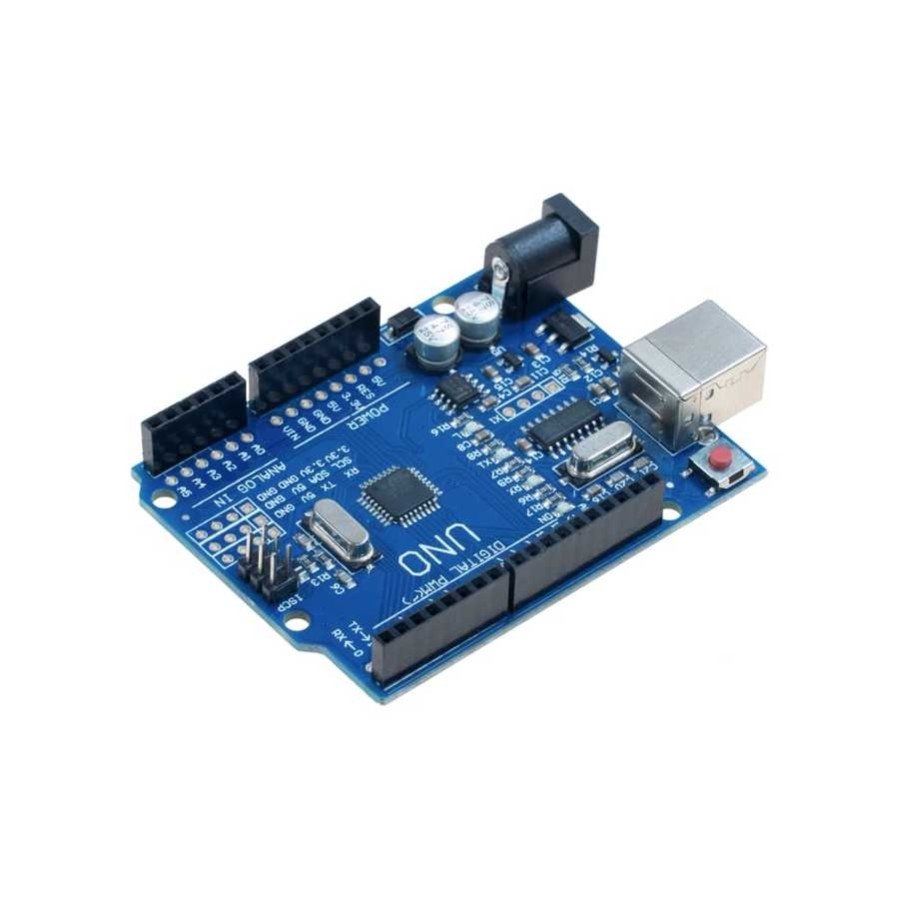

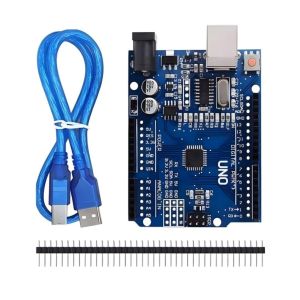

The Arduino Uno SMD (Surface-Mount Device) board is a variant of the Arduino Uno, designed with surface-mount components rather than through-hole components. Here's a detailed description of the Arduino Uno SMD board:

Overview:

• Microcontroller: The Arduino Uno SMD board is based on the ATmega328P microcontroller, the same as the through-hole Arduino Uno. The ATmega328P operates at 5V logic and has 32KB of flash memory for storing code.

• Form Factor: It follows the same physical dimensions and pinout as the original Arduino Uno board, making it compatible with shields and accessories designed for the Uno.

• Power Supply:

  • USB Power: It can be powered via USB using a micro-USB connector, providing 5V DC.
  • External Power: Alternatively, it can be powered through an external DC power supply connected to the VIN pin, which can range from 7V to 12V DC.

• Programming: Like the Arduino Uno, it can be programmed via the Arduino IDE using a USB connection to your computer. The microcontroller includes a bootloader that allows you to upload sketches over USB.

• Clock Speed: The ATmega328P operates at a clock speed of 16 MHz.

Key Features:

• Digital I/O Pins: It has 14 digital input/output pins (of which 6 can be used as PWM outputs).
• Analog Inputs: It includes 6 analog input pins.
• UART, SPI, I2C: Supports serial communication (UART), SPI, and I2C protocols for interfacing with other devices and sensors.
• Reset Button: Allows you to reset the microcontroller and start your program execution from the beginning.

Differences from Through-Hole Arduino Uno:

• Component Type: The main difference lies in the type of components used. The SMD version uses surface-mount technology (SMT), which allows for smaller components to be mounted directly onto the PCB, making the board more compact and potentially cheaper to manufacture.

• Size and Weight: Due to the use of SMD components, the overall size and weight of the Arduino Uno SMD board might be slightly different from the through-hole version, but functionality remains the same.

Typical Applications:

• Prototyping: Ideal for rapid prototyping of electronic projects due to its ease of use and compatibility with a wide range of sensors and shields.
• Education: Widely used in educational settings to teach programming, electronics, and microcontroller concepts.
• DIY Projects: Popular among hobbyists and makers for creating various interactive and automated projects.

// This program will blink the onboard LED of the Arduino Uno connected to pin 13

void setup() {
  // Initialize pin 13 as an output pin
  pinMode(13, OUTPUT);
}

void loop() {
  // Turn the LED on by setting the pin 13 high
  digitalWrite(13, HIGH);

  // Wait for 1000 milliseconds (1 second)
  delay(1000);

  // Turn the LED off by setting the pin 13 low
  digitalWrite(13, LOW);

  // Wait for another 1000 milliseconds (1 second)
  delay(1000);
}
