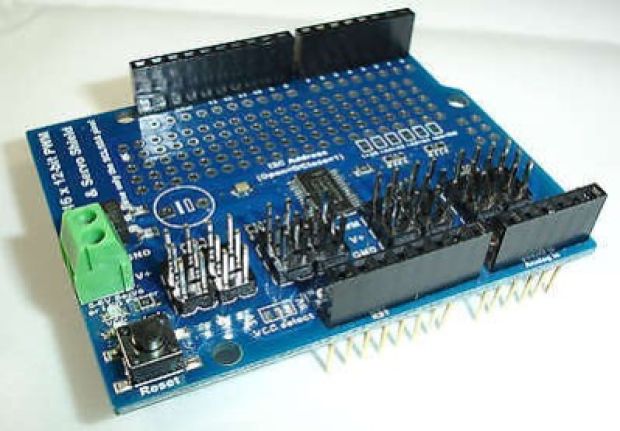

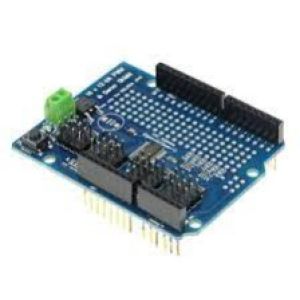

The 16 Channel 12-bit PWM Servo Drive Shield Board (PCA9685) for Arduino is a specialized module designed to control multiple servo motors and other devices requiring PWM (Pulse Width Modulation) signals. It features the PCA9685 chip, which is an I2C-controlled PWM driver capable of driving up to 16 servos simultaneously. This shield is highly useful for projects that require precise control of multiple servos, such as robotic arms, model vehicles, or automated systems.

Key Features of the 16 Channel 12-bit PWM Servo Drive Shield (PCA9685):

1. 16 Servo Control Channels:

   • The shield allows you to control up to 16 PWM channels, each capable of controlling a servo or any device that accepts a PWM signal (such as LEDs or motors).
   • This is ideal for projects where you need to manage multiple servos without using a large number of digital pins on the Arduino board.

2. I2C Communication:

   • The PCA9685 chip uses the I2C protocol for communication, which means that the board only requires two pins (SDA and SCL) for communication, significantly reducing the number of pins needed on the Arduino.
   • I2C allows you to easily add multiple shields or devices to the same bus, meaning you can control more than one 16-channel board from a single Arduino, expanding the number of servos controlled even further.

3. 12-bit PWM Resolution:

   • The board supports 12-bit PWM resolution, which provides fine control over the servo position, giving you 4096 steps of resolution (from 0 to 4095) for each PWM channel.
   • This high resolution ensures smoother and more precise movements for the connected servos.

4. Precise Timing:

   • The PCA9685 chip can generate precise PWM signals with independent frequency control, allowing each servo to operate independently of the others.
   • The board can run at a frequency of up to 1.6 kHz, which is suitable for most standard servos and other PWM-driven devices.

5. Onboard Power Supply:

   • The board features an external power input (usually 5V to 6V), which is necessary to provide sufficient current for multiple servos. Servos can draw significant current, especially under load, so it's crucial to power them separately from the Arduino board to avoid power instability.
   • There is a power jumper to allow the shield to be powered directly from the Arduino or an external power source.

6. Stackable and Expandable:

   • The shield is designed to be stackable. You can easily attach multiple shields (each controlling 16 servos) to the same Arduino board using I2C. The I2C address can be adjusted via soldering pads or jumpers on the shield, allowing you to control many more servos by adding additional boards.

7. Easy to Use:

   • The module comes with libraries and example code to make it easy to integrate with the Arduino IDE. The Adafruit PCA9685 library is commonly used to control the shield, which abstracts the complexity of I2C communication and PWM signal generation.

8. Wide Compatibility:

   • It is compatible with most Arduino boards, including Arduino UNO, Mega, Leonardo, and other compatible boards that support I2C communication.

Applications:

The 16 Channel 12-bit PWM Servo Drive Shield is ideal for projects that involve controlling multiple servos. Some typical applications include:

1. Robotic Arms:

   • Control the joints of a robotic arm, which requires precise control over several servos to achieve movement in multiple degrees of freedom.

2. RC Vehicles:

   • Use the shield to control servos in an RC car or boat, such as steering, throttle, and other functions.

3. Automation:

   • Create automation systems where multiple servos are used to control cameras, doors, or robotic tools.

4. Drones:

   • For controlling gimbals, camera mounts, or other servo-driven components in drone projects.

5. Animatronics:

   • Build animatronic figures that require the precise movement of multiple parts, such as eyes, mouth, arms, etc.

6. Model Railroads:

   • Control multiple servos for operating switches, gates, and other moving components of model railroad setups.

Wiring and Pinout:

To use the 16 Channel 12-bit PWM Servo Drive Shield (PCA9685) with your Arduino, follow these basic steps:

• I2C Pins:
  • SDA (Data) and SCL (Clock) pins from the Arduino connect to the corresponding pins on the PCA9685 shield.
  • These are typically located on A4 (SDA) and A5 (SCL) on Arduino UNO or similar pins on other boards.
• External Power Supply:
  • The servos are powered by an external power supply (5V to 6V, depending on the servo specifications). Connect the power supply’s positive terminal to the VCC pin and the ground to the GND pin on the shield.
• Servo Pins:
  • Connect the PWM pins of your servos to the P0 to P15 pins (for 16 servos). Each pin controls one servo’s PWM signal.
• Arduino Power:
  • The shield is powered via the Arduino's 5V pin, or you can power it via an external 5V power supply.

Example Code (Arduino) to Control Servos:

Using the Adafruit PCA9685 library, you can control the servos with ease. Below is an example code to control one servo on channel 0:

#include
#include
#include

// Create an instance of the PCA9685
Adafruit_PCA9685 pwm = Adafruit_PCA9685();

void setup() {
  Serial.begin(9600);
  pwm.begin();  // Initialize the PWM driver

  pwm.setPWMFreq(60);  // Set the frequency of PWM to 60 Hz (default for servos)
}

void loop() {
  for (int pulselen = 0; pulselen < 4096; pulselen++) {
    pwm.setPWM(0, pulselen);  // Set PWM for servo 0
    delay(20);  // Delay for a short time
  }

  delay(1000);  // Wait before resetting
}

In this example, the servo connected to channel 0 will move based on the PWM values sent to it. The pwm.setPWM(0, pulselen); command sends the PWM signal to servo 0 with values ranging from 0 to 4095, allowing for fine control over the servo's position.

Conclusion:

The 16 Channel 12-bit PWM Servo Drive Shield (PCA9685) is an excellent solution for controlling multiple servos or other PWM-controlled devices from an Arduino. With its high resolution, I2C communication, and the ability to control up to 16 servos, it is ideal for robotics, automation, animatronics, and many other servo-driven projects. The use of I2C reduces the need for multiple pins on your Arduino, making it an efficient way to manage numerous servos or PWM devices in a compact form.
