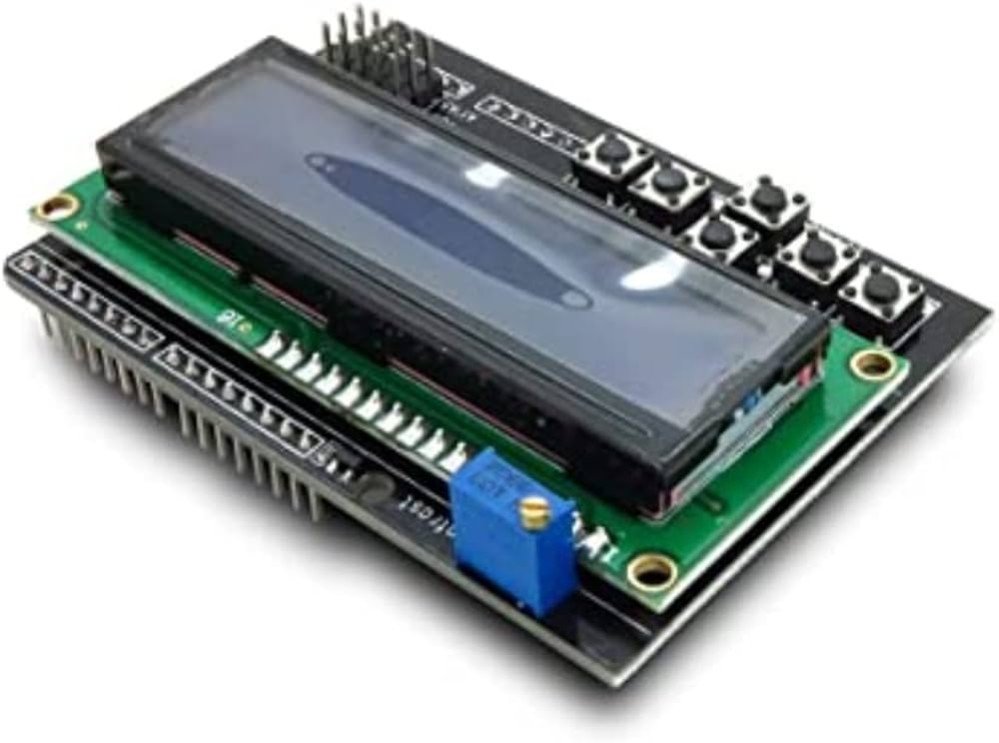

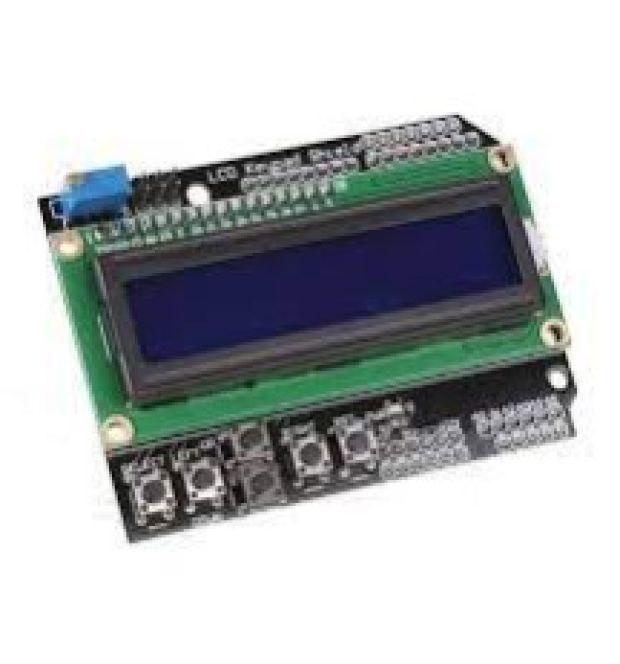

The 1602 LCD Board Keypad Shield with a blue backlight for Arduino is a versatile and commonly used expansion shield for Arduino projects. It combines both a 16x2 LCD display and a keypad on a single board, making it ideal for creating user interfaces, displaying data, and accepting input in your Arduino-based projects, such as robots or home automation systems.

Key Features:

1. 16x2 LCD Display:

   • The shield features a 16x2 LCD display, which can show up to 16 characters per line and has 2 lines. This is useful for displaying text, sensor data, or status messages.
   • Blue Backlight: The blue backlight provides clear visibility in low-light environments, and it can be controlled programmatically, allowing for customized user experiences.

2. Keypad with 5 Keys:

   • The shield includes a 5-key keypad (usually arranged as 3x2 matrix), which allows the user to input data or make selections from a list.
   • The keys are commonly labeled as A, B, C, D, and an Enter key, but this may vary.

3. Arduino Compatibility:

   • The 1602 LCD Keypad Shield is designed to plug directly into the Arduino's header pins (usually Arduino Uno or similar boards), without needing additional wiring.
   • It uses the I2C or parallel communication (depending on the model), with most models requiring fewer pins compared to traditional LCD wiring (especially if using I2C).

4. Easy to Use:

   • With Arduino's built-in LiquidCrystal library, setting up and controlling the LCD is straightforward.
   • The keypad is generally accessed using libraries like Keypad.h, which simplifies the process of reading user input.

5. Adjustable Contrast:

   • The contrast of the LCD can be adjusted using a small potentiometer (usually located on the board), which helps to adjust the visibility of the characters depending on ambient light.

Typical Pin Mapping (for 16x2 LCD):

The pinout is similar to most Arduino 16x2 LCD modules:

• VSS: Ground
• VCC: 5V
• VO: Contrast control (connected to potentiometer)
• RS: Register Select
• RW: Read/Write
• E: Enable
• D4-D7: Data pins (for parallel communication)
• A: Anode (Backlight control)
• K: Cathode (Backlight control)

Libraries:

• LiquidCrystal Library: This library is used to control the 16x2 LCD. It allows for basic text output and cursor manipulation.
• Keypad Library: This library is used to read input from the onboard keypad, allowing you to detect key presses and perform corresponding actions.

Example Code for LCD and Keypad:

Here's a basic example code to display a message on the LCD and read inputs from the keypad:

#include
#include

// Initialize the LCD (pin configuration depends on the model)
LiquidCrystal lcd(8, 9, 4, 5, 6, 7);  // Adjust pins if necessary

// Define the keypad's layout
const byte ROW_NUM    = 4;  // Four rows
const byte COLUMN_NUM = 4;  // Four columns

char keys[ROW_NUM][COLUMN_NUM] = {
  {'1','2','3','A'},
  {'4','5','6','B'},
  {'7','8','9','C'},
  {'*','0','#','D'}
};

byte pin_rows[ROW_NUM] = {9, 8, 7, 6};     // Pin numbers for rows
byte pin_column[COLUMN_NUM] = {5, 4, 3, 2};  // Pin numbers for columns

Keypad keypad = Keypad( makeKeymap(keys), pin_rows, pin_column, ROW_NUM, COLUMN_NUM );

void setup() {
  lcd.begin(16, 2);   // Initialize the 16x2 LCD
  lcd.print("Arduino Keypad");
  delay(2000);  // Show initial message for 2 seconds
  lcd.clear();
}

void loop() {
  char key = keypad.getKey();  // Get the key press

  if (key) {  // If a key is pressed
    lcd.clear();  // Clear the LCD
    lcd.print("You pressed: ");
    lcd.print(key);  // Display the key pressed
  }
}

How It Works:

1. LCD Setup:

   • The LCD is initialized with the lcd.begin(16, 2) command, which sets it to show 16 columns and 2 rows.
   • The initial message ("Arduino Keypad") is displayed for a few seconds using lcd.print().

2. Keypad Input:

   • The Keypad object listens for key presses, and once a key is pressed, it is captured using keypad.getKey().
   • The pressed key is then displayed on the LCD screen.

Applications:

• Arduino Robots: You can use the LCD to display sensor data (like distance, speed, or battery level) and the keypad for controlling movement or other robot functions.
• User Interfaces: For simple menu systems where users select options using the keypad.
• Data Entry: For entering parameters (such as numeric values) or controlling settings in a system.
• Security Systems: Using the keypad as a password input mechanism for security systems.

Conclusion:

The 1602 LCD Board Keypad Shield is an excellent tool for creating interactive projects, particularly those that require user input and display. It offers both a simple way to show information on a screen and collect input from a user, all integrated onto one convenient board for Arduino.
