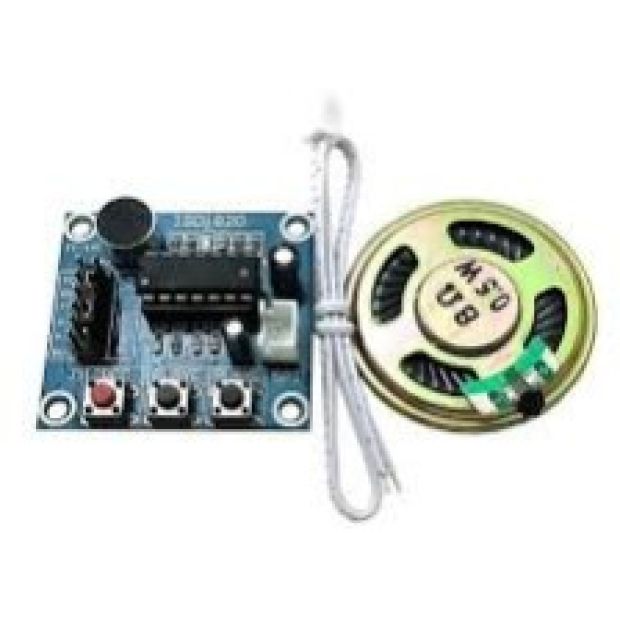

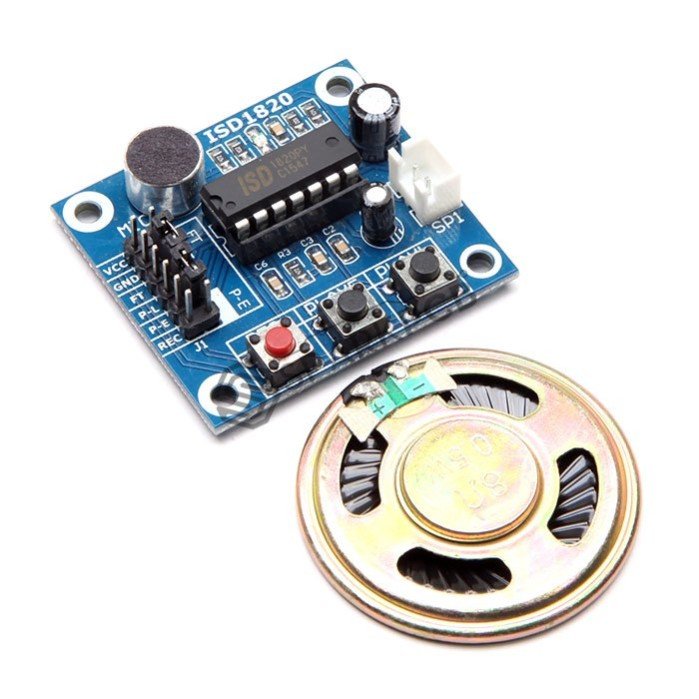

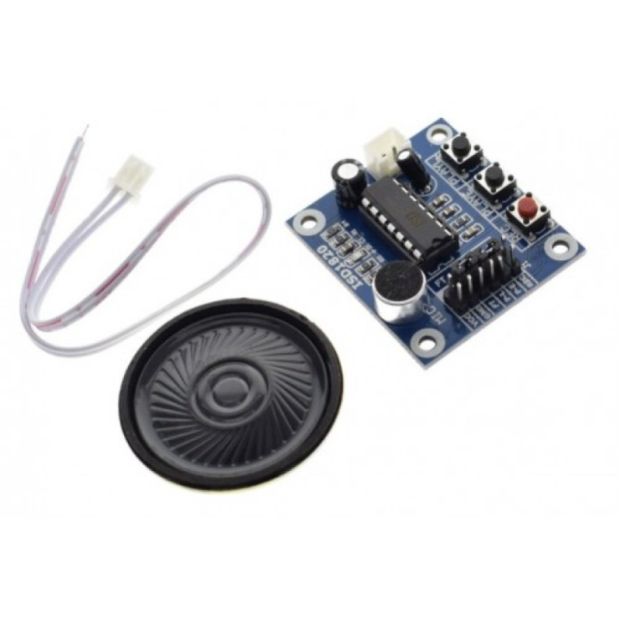

A voice playback module is an electronic device that can store and play back audio recordings. These modules are often used in various applications, including toys, alarms, digital signage, and interactive systems. Here’s a comprehensive overview of voice playback modules:

Voice Playback Module Overview:

1. Key Features:

• Audio Storage:

  • Built-in Memory: Stores audio recordings digitally. Memory capacity can vary from a few seconds to several minutes of audio.
  • External Memory: Some modules allow for SD cards or other external storage to increase the capacity.

• Playback Control:

  • Buttons or Triggers: Often includes physical buttons or digital triggers to initiate playback.
  • GPIO Pins: Can be controlled via general-purpose input/output pins from a microcontroller or other control systems.

• Audio Output:

  • Speaker Interface: Provides connections for a speaker or audio output jack.
  • Volume Control: May include adjustable volume settings.

• Recording Functionality (Optional):

  • Some modules allow for recording audio directly onto the module, as well as playback.

2. Working Principle:

• Storage:

  • Audio is recorded and stored in the module's internal memory or external storage. The recordings are typically stored in a digital format such as WAV or MP3.

• Playback:

  • When activated, the module retrieves the stored audio data and converts it to an analog signal using a digital-to-analog converter (DAC). This signal is then sent to a speaker to produce sound.

• Control:

  • Playback can be controlled via physical buttons, digital signals, or commands from a microcontroller. Some modules also support remote control or wireless triggering.

3. Circuit Connections:

• Power Supply:

  • VCC/GND: Connect to a DC power source, typically 3.3V, 5V, or 12V, depending on the module specifications.

• Audio Output:

  • Speaker Terminals: Connect to a speaker for audio playback.
  • Audio Jack (if applicable): Provides an external audio output.

• Control Pins:

  • Trigger Pins: Used to initiate playback via external signals.
  • Buttons/Switches: For manual control of playback.

• Memory Interface (if applicable):

  • SD Card Slot: For modules with external storage capability, connect an SD card to store and play additional audio files.

4. Applications:

• Toys:

  • Used in interactive toys to play pre-recorded phrases or sounds.

• Alarm Systems:

  • Provides audible alerts or messages in security or safety alarms.

• Digital Signage:

  • Used in advertising displays to provide audio information or advertisements.

• Interactive Systems:

  • Found in kiosks, museum exhibits, or interactive displays to provide user-triggered audio information.

• Greeting Cards:

  • Embedded in greeting cards to play recorded messages or music when opened.

5. Advantages:

• Ease of Use:

  • Simple to integrate and use, often requiring minimal additional components.

• Customizable:

  • Allows for playback of custom audio messages or sounds tailored to specific applications.

• Low Cost:

  • Generally affordable and cost-effective for adding audio features to various projects.

6. Limitations:

• Audio Quality:

  • Audio quality can vary based on the module’s design and speaker quality.

• Limited Storage:

  • Some modules have limited memory, restricting the length and number of audio recordings.

• Power Consumption:

  • Depending on the module and usage, power consumption may be a consideration, especially in battery-operated applications.

Example Use Case:

Interactive Toy:

• A voice playback module in an interactive toy might store several pre-recorded phrases or sound effects. When a button is pressed, the module plays the corresponding audio, enhancing the toy's interactivity and appeal.

Summary:

Voice playback modules are versatile and user-friendly components designed to store and play back audio recordings. They are widely used in various applications, from toys and alarms to digital signage and interactive systems. With features such as built-in memory, playback control, and optional recording functionality, these modules offer an effective solution for integrating audio capabilities into electronic projects and devices. For specific implementations, selecting a module with suitable audio quality, storage capacity, and control options is essential.
