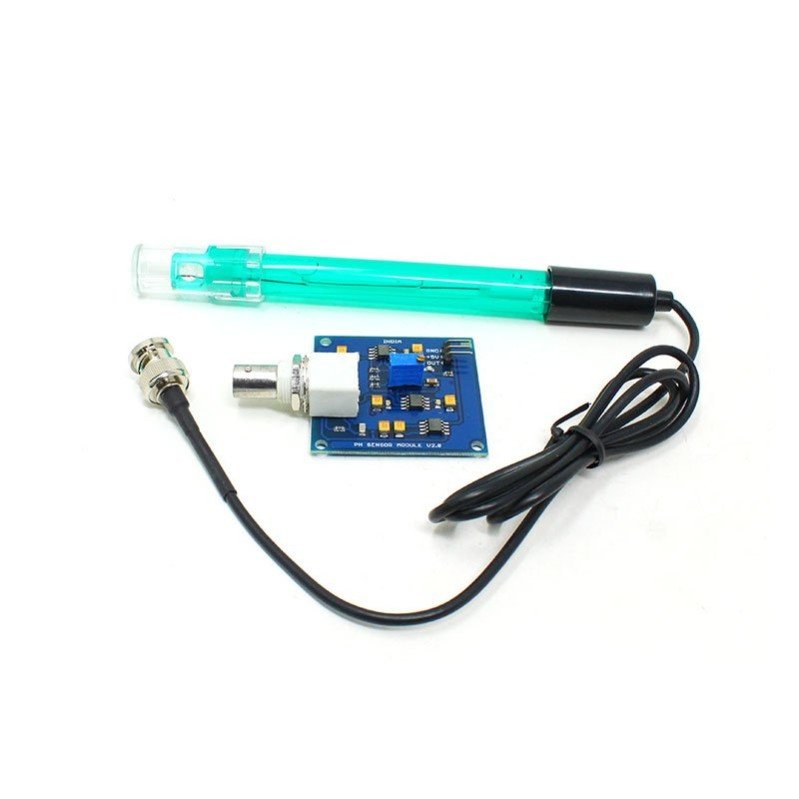

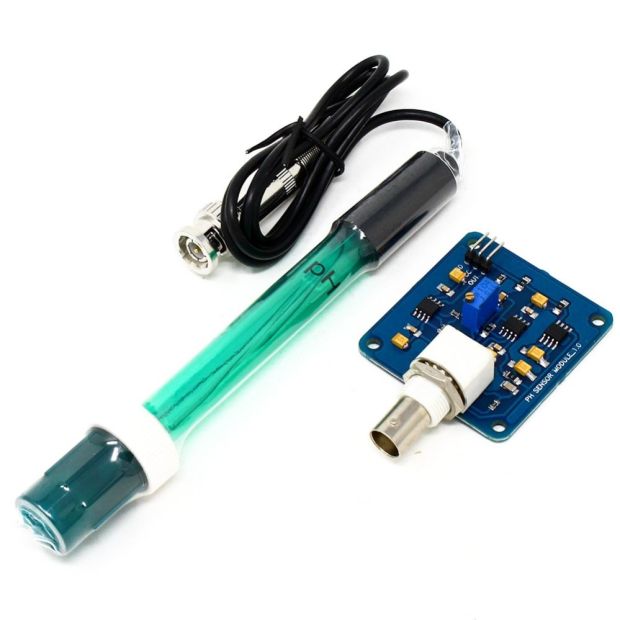

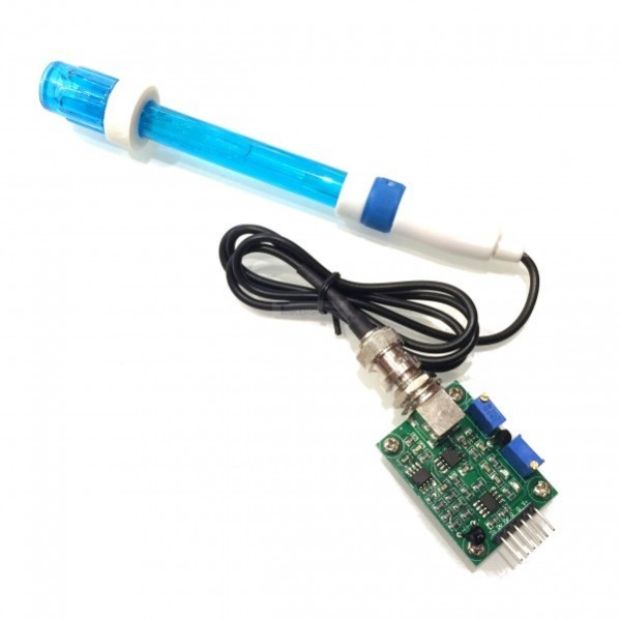

A pH sensor is a device used to measure the acidity or alkalinity of a solution. The pH scale ranges from 0 to 14, where a pH of 7 is neutral, values below 7 are acidic, and values above 7 are alkaline. Here’s a detailed description of how a pH sensor works and its key components:

Key Components of a pH Sensor:

1. Glass Electrode:

   • Function: The primary sensing element of the pH sensor, which responds to the hydrogen ion concentration in the solution.
   • Structure: Consists of a glass bulb or membrane that is sensitive to pH changes. The glass is designed to have a selective response to hydrogen ions.

2. Reference Electrode:

   • Function: Provides a stable reference voltage against which the pH electrode’s voltage is compared.
   • Structure: Typically contains a stable reference solution and a reference junction. It is often made from materials such as silver/silver chloride or calomel.

3. Electrolyte Solution:

   • Function: Maintains electrical conductivity between the glass electrode and the reference electrode.
   • Structure: Often a potassium chloride (KCl) solution that fills the space between the electrodes.

4. Junction:

   • Function: Facilitates the connection between the reference electrode and the sample solution.
   • Structure: Can be a porous or gel-filled membrane that allows ions to pass through while maintaining a stable reference.

5. Transmitter/Controller:

   • Function: Converts the electrical signal from the sensor into a readable pH value. It may also calibrate the sensor and display the pH measurement.
   • Features: Can be a standalone device or integrated into a more extensive system. Some models offer digital outputs, analog outputs, or connectivity to other equipment.

How a pH Sensor Works:

1. Measurement Principle:

   • Electrode Response: The glass electrode generates a small voltage that varies with the hydrogen ion concentration of the solution. This voltage difference is compared to the reference electrode’s stable voltage.

2. Signal Processing:

   • Voltage Conversion: The small voltage signal produced by the glass electrode is converted into a pH value by the transmitter or controller. This is based on the Nernst equation, which relates the electrode potential to pH.

3. Calibration:

   • Routine Calibration: pH sensors require periodic calibration with standard buffer solutions of known pH values to ensure accurate readings. Calibration adjusts the sensor’s output to match the pH scale.

Types of pH Sensors:

1. Lab-Grade pH Sensors:

   • Applications: Used in research, chemistry labs, and high-precision applications.
   • Features: Typically offer high accuracy and stability, often with temperature compensation.

2. Industrial pH Sensors:

   • Applications: Used in manufacturing, water treatment, and other industrial processes.
   • Features: Designed to withstand harsh environments, with durable materials and often with features for real-time monitoring and control.

3. Pocket pH Meters:

   • Applications: Used for quick and portable pH measurements in the field or simple applications.
   • Features: Compact and user-friendly, with basic calibration options.

Applications:

• Water Quality Testing: Monitoring pH in drinking water, wastewater, and natural water bodies.
• Agriculture: Measuring soil pH for crop management and fertilization.
• Food and Beverage Industry: Ensuring product quality and consistency by monitoring pH during production and processing.
• Chemical Processing: Controlling chemical reactions and maintaining optimal conditions in manufacturing processes.
• Environmental Monitoring: Assessing pH levels in various environmental contexts to gauge ecosystem health.

In summary, a pH sensor is a critical tool for accurately measuring and monitoring the acidity or alkalinity of solutions across a wide range of applications. Its ability to provide real-time pH readings makes it invaluable in scientific, industrial, and environmental settings.

import spidev
import time

# Set up SPI communication with MCP3008
spi = spidev.SpiDev()
spi.open(0, 0)  # open SPI bus 0, chip select 0
spi.max_speed_hz = 1350000  # Set the speed to 1.35MHz

# Function to read data from the MCP3008
def read_adc(channel):
    if channel < 0 or channel > 7:
        return -1  # Invalid channel
    adc = spi.xfer2([1, (8 + channel) << 4, 0])  # Send request to MCP3008
    # Combine the high and low byte to form the 10-bit result
    result = ((adc[1] & 3) << 8) + adc[2]
    return result

# Function to convert the ADC value to pH
def adc_to_ph(adc_value):
    # pH sensor calibration formula (adjust according to your sensor's datasheet)
    # This is a sample calibration; you will need to calibrate with known pH solutions
    voltage = adc_value * (3.3 / 1023.0)  # Convert the ADC value to voltage (0-3.3V)
    ph_value = 3.5 * voltage + 0.5  # Example calibration; adjust for your pH sensor
    return ph_value

# Main loop to read the pH sensor
try:
    while True:
        # Read from channel 0 (pH sensor connected to channel 0)
        adc_value = read_adc(0)
        print(f"Raw ADC Value: {adc_value}")

        # Convert ADC value to pH
        ph_value = adc_to_ph(adc_value)
        print(f"Calculated pH Value: {ph_value:.2f}")

        # Delay before the next reading
        time.sleep(1)

except KeyboardInterrupt:
    print("Program interrupted. Closing...")

finally:
    spi.close()  # Close the SPI communication
