Connecting the SIM800 GSM/GPRS module with an Arduino allows you to add GSM communication capabilities to your projects, such as sending SMS, making/receiving calls, and connecting to the internet. Here’s a step-by-step guide on how to connect and use the SIM800 module with an Arduino:

Components Needed:

1. Arduino board (e.g., Arduino Uno or Arduino Mega)

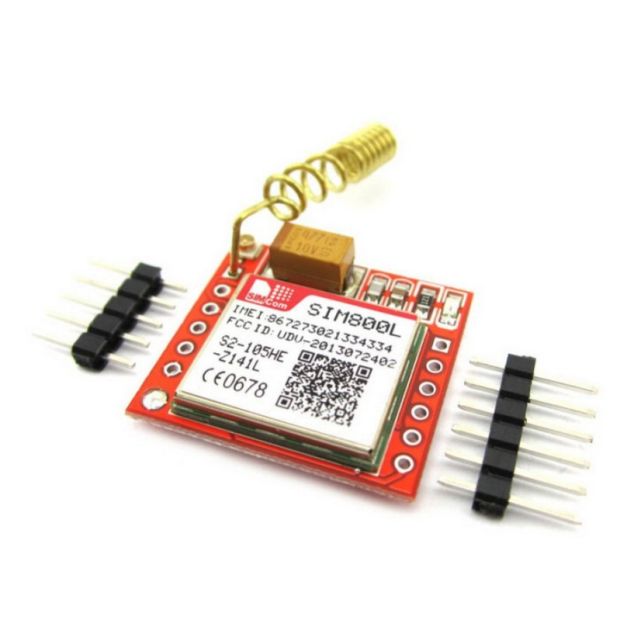

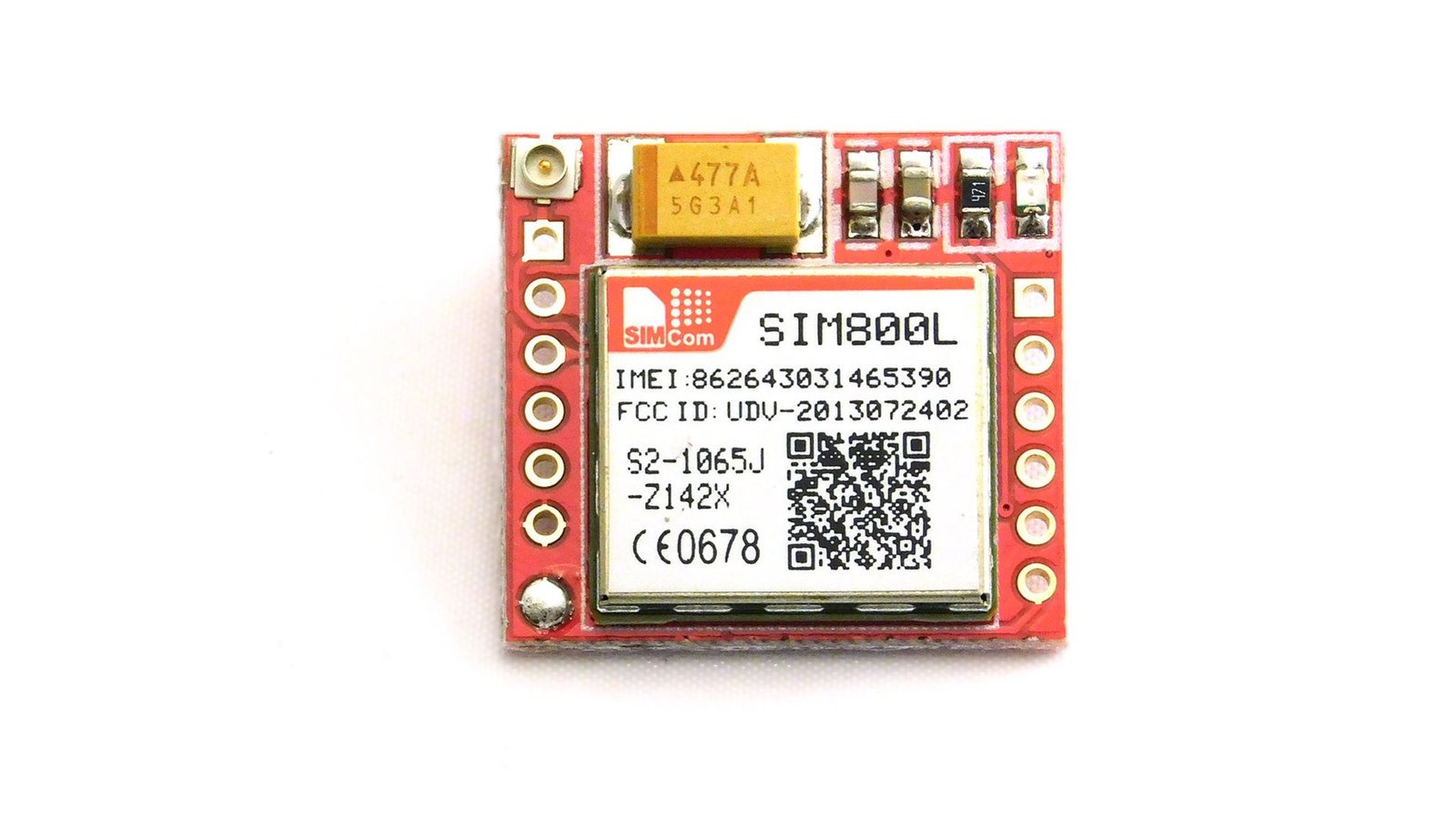

2. SIM800 GSM/GPRS module
3. Antenna for SIM800 module
4. SIM card (with active GPRS service)
5. External power supply (if needed for SIM800 module)
6. SIM card adapter (if required)

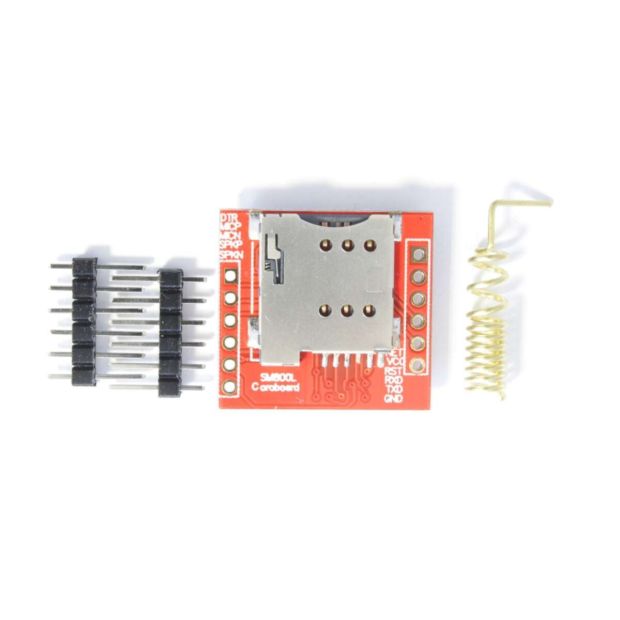

SIM800 Module Pinout:

The SIM800 module typically has the following pins:

• VCC: Power supply (typically +5V, check your module’s specifications)
• GND: Ground (connect to Arduino GND)
• RXD: Receive data (connect to Arduino TX pin via voltage divider or directly)
• TXD: Transmit data (connect to Arduino RX pin via voltage divider or directly)
• RST: Reset pin (optional, connect to Arduino reset pin for resetting)
• KEY: Power control (optional, connect to a digital pin on Arduino for power control)
• GND: Ground (connect to Arduino GND)
• SIM card interface: Insert the SIM card properly into the SIM card slot of the SIM800 module.

Wiring Instructions:

1. Power Connections:

   • VCC of the SIM800 module to a regulated +5V power source (can be from Arduino 5V pin, but ensure it can supply sufficient current).
   • GND of the SIM800 module to GND on the Arduino.

2. Serial Communication:

   • RXD (Receive Data) of the SIM800 module to a digital pin on the Arduino (e.g., digital pin 7).
   • TXD (Transmit Data) of the SIM800 module to a digital pin on the Arduino (e.g., digital pin 8).

3. Power Control (Optional):

   • KEY pin of the SIM800 module to a digital pin on the Arduino (optional, for controlling power).
   • RST pin of the SIM800 module to a digital pin on the Arduino (optional, for resetting the module).
