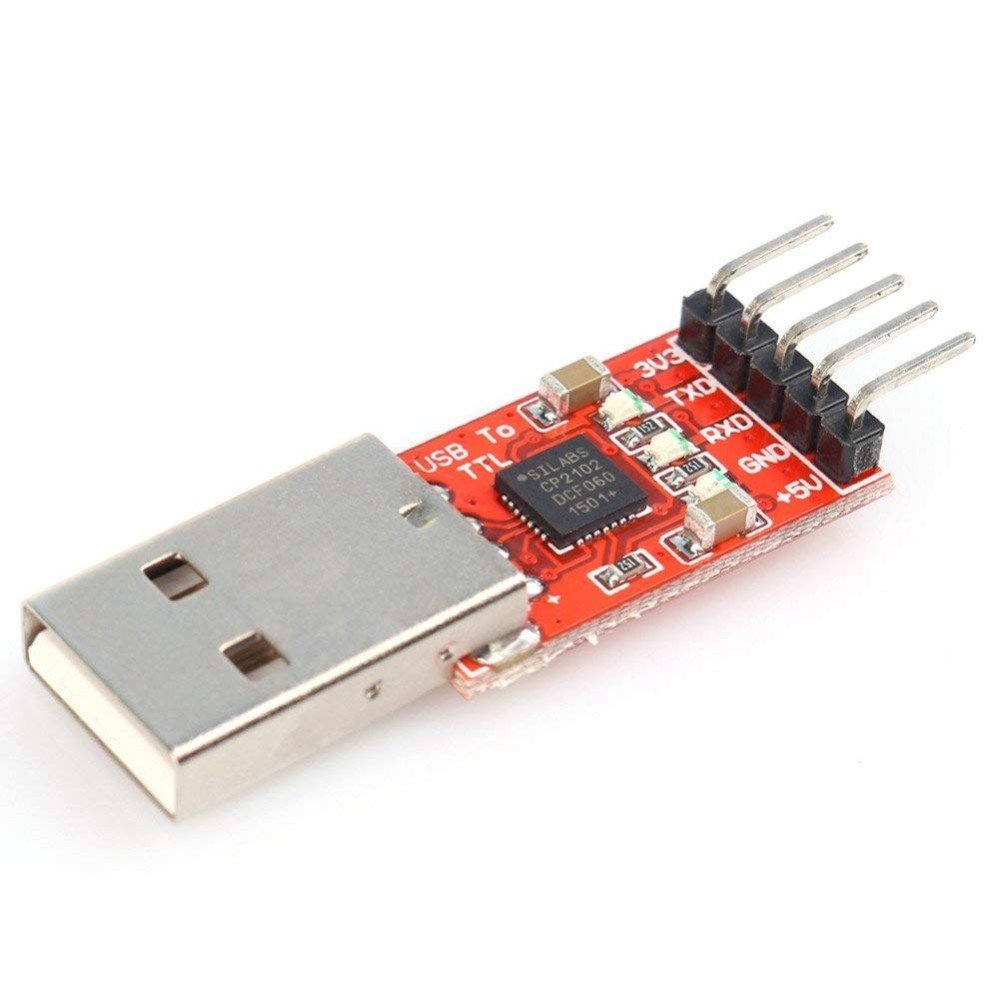

The CP2102 is another popular USB-to-serial bridge controller IC (Integrated Circuit), manufactured by Silicon Labs. It serves a similar function to the PL2303, allowing microcontrollers and other devices without native USB support to communicate with a host computer or other devices via USB. Here’s a description and basic information about the CP2102 module:

CP2102 Module Overview:

1. Functionality:

   • The CP2102 module acts as a bridge between USB and UART (Universal Asynchronous Receiver/Transmitter) interfaces.
   • It converts USB signals from a computer or USB host into UART signals that can be used by microcontrollers or other serial devices.
   • It supports various baud rates and data formats for serial communication.

2. Pinout:

   • The CP2102 module typically has the following pins or connections:
     • USB Interface: Connects to a USB port on the computer or USB host device.
     • TXD (Transmit Data): Outputs serial data from the CP2102 to the connected microcontroller or device.
     • RXD (Receive Data): Inputs serial data from the microcontroller or device to the CP2102.
     • GND: Ground connection for the module.
     • 3.3V or 5V VCC: Power supply for the module (depending on the module variant).

3. Features:

   • USB Compatibility: Supports USB 2.0 full-speed specification.
   • Driver Support: Requires drivers for specific operating systems (Windows, macOS, Linux) to enable communication.
   • Voltage Levels: Supports both 3.3V and 5V logic levels, depending on the module variant.
   • Integrated Voltage Regulator: Some CP2102 modules include an onboard voltage regulator to provide stable 3.3V output for external devices.

4. Applications:

   • Programming and Debugging: Used to program microcontrollers or debug applications via a serial console over USB.
   • Data Logging: Interfaces with sensors or modules that communicate via UART, allowing data logging to a computer.
   • Peripheral Communication: Bridges USB devices to microcontroller projects, enabling communication with peripherals like GPS modules, GSM modules, etc.

Example Use with Arduino:

If you're using the CP2102 module with an Arduino (e.g., Arduino Uno) to enable USB communication for programming or debugging, here are the basic connections:

• CP2102 Module:

  • USB: Connect to a USB port on your computer.
  • TXD: Connect to Arduino RX pin (receive).
  • RXD: Connect to Arduino TX pin (transmit).
  • GND: Connect to Arduino GND.
  • VCC (3.3V or 5V): Connect to appropriate power source (3.3V or 5V) depending on your module variant.

• Arduino:

  • TX (Transmit Pin): Connect to CP2102 RXD pin.
  • RX (Receive Pin): Connect to CP2102 TXD pin.
  • GND: Connect Arduino GND to CP2102 GND.

Driver Installation:

• Depending on your operating system, you may need to install specific drivers for the CP2102 module. Drivers can typically be downloaded from the Silicon Labs website or included with your operating system's driver library.

Notes:

• Ensure proper voltage levels are observed when connecting the CP2102 module to your Arduino or any other microcontroller. Most CP2102 modules support both 3.3V and 5V logic levels, but verify with your module's specifications.
• Check the datasheet or documentation specific to your CP2102 module variant for detailed pinout, voltage, and driver information.

By understanding these basics, you can effectively use the CP2102 module to add USB-to-serial capabilities to your Arduino projects or other microcontroller-based applications.
