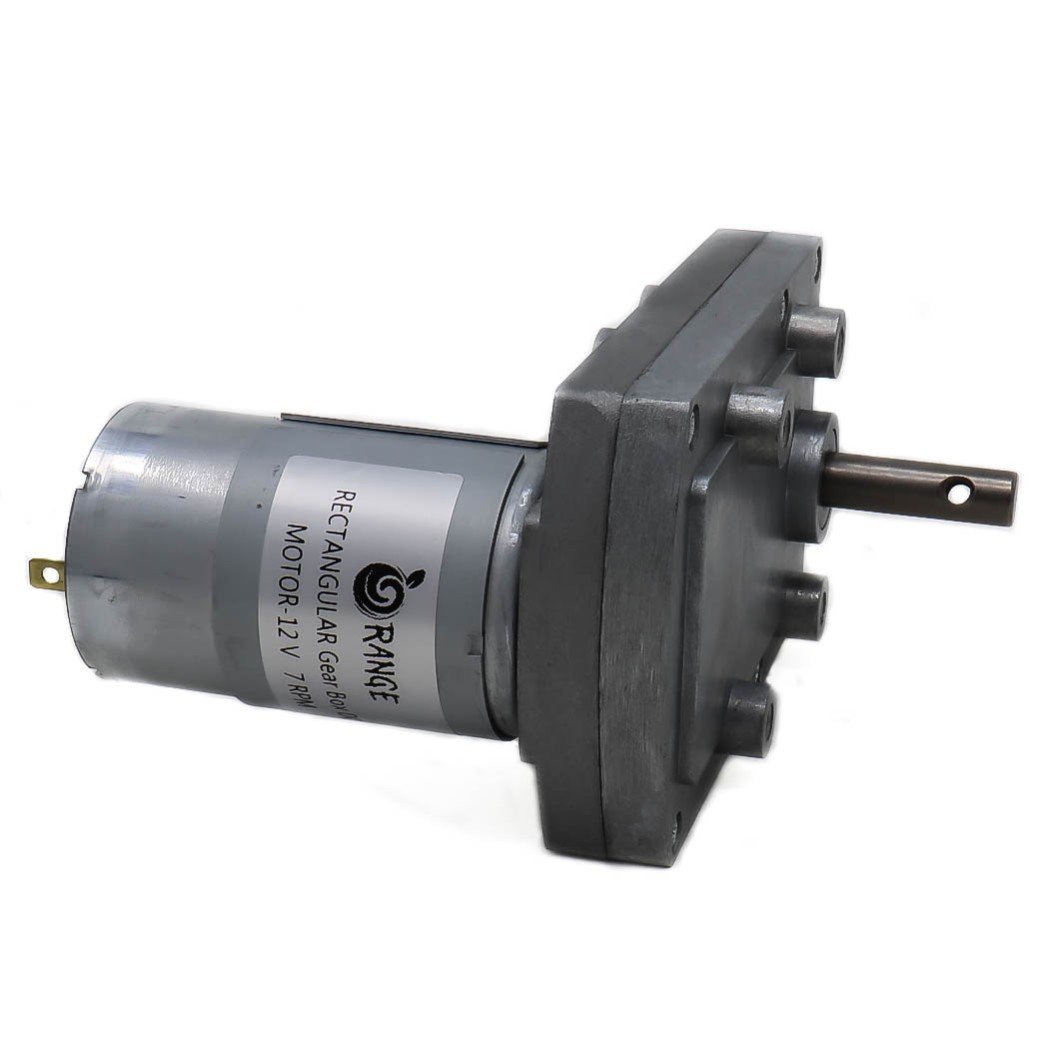

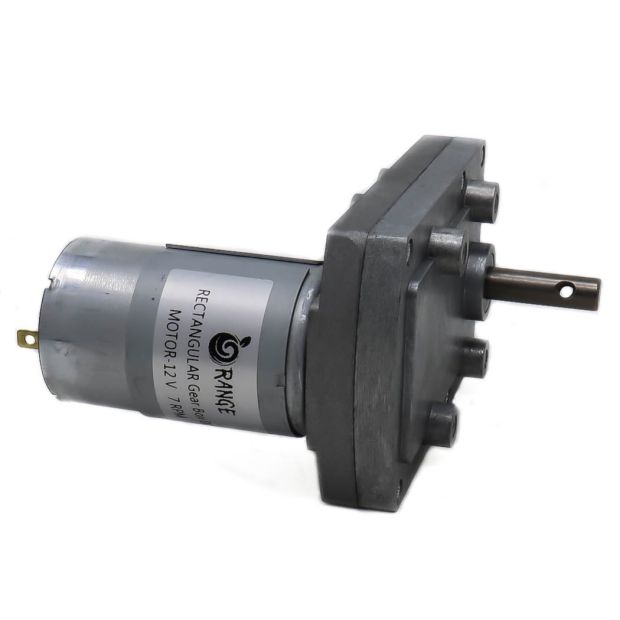

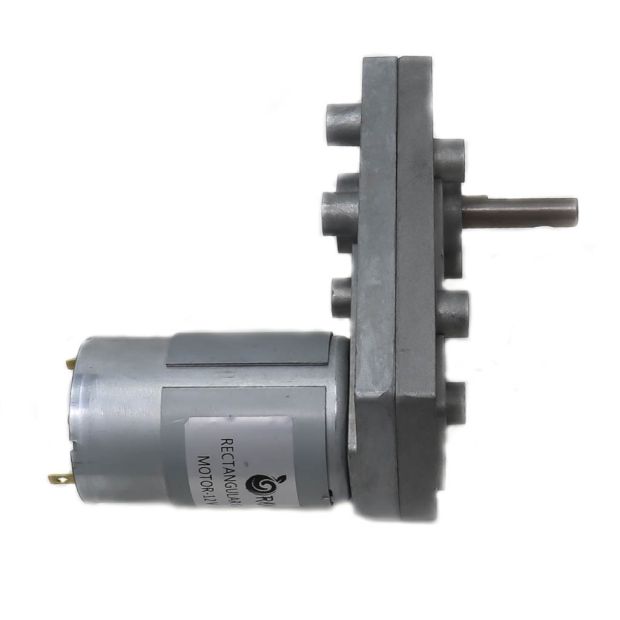

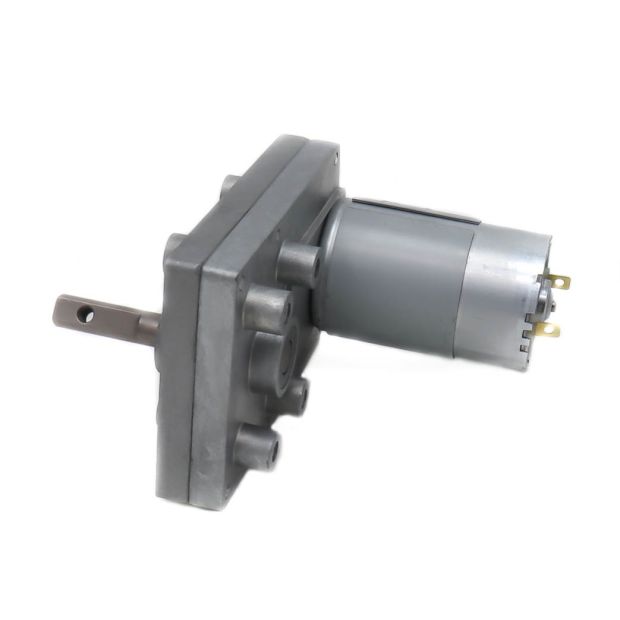

The TJP65FH is a specific type of gearbox motor known for its low-speed, high-torque characteristics. It's commonly used in applications where precise control of speed and strong torque is required, such as in robotics, automation systems, and various mechanical devices.

Key Features of the TJP65FH Gearbox Motor:

1. Voltage:

   • 12V DC: Operates on a standard 12-volt direct current power supply.

2. Speed:

   • 5 RPM (Revolutions Per Minute): Provides a very low rotational speed, making it suitable for applications requiring slow and controlled movements.

3. Torque:

   • High Torque: The gearbox is designed to deliver a significant amount of torque at low speeds, which is essential for applications needing high mechanical force.

4. Gearbox Type:

   • Special Gearbox: The "special" designation indicates a custom or unique gear arrangement designed to achieve the specific speed and torque characteristics. Gearboxes in these motors are often designed to maximize efficiency and torque output while maintaining durability.

5. Motor Type:

   • DC Motor: Likely a brushed or brushless DC motor depending on the design. Provides a simple, reliable power source with easy speed control.

6. Applications:

   • Robotics: Used in robotic arms or mobile robots where precise, low-speed control is needed.
   • Automation: Ideal for automation systems that require precise control of movement or position.
   • Mechanical Systems: Useful in applications where high torque is needed to drive mechanical components slowly, such as in actuators or slow-moving conveyors.

Technical Specifications:

While specific technical details can vary based on the exact model and manufacturer, a typical TJP65FH motor might have the following approximate specifications:

• Motor Voltage: 12V DC
• Speed: 5 RPM (at no load)
• Torque: High torque (exact value varies; often specified in Nm or oz-in)
• Gear Ratio: High gear ratio to reduce motor speed to 5 RPM (gear ratio can be very high, depending on the design)
• Dimensions: Varies depending on the manufacturer, but typically compact to fit in various applications.

Wiring and Usage:

Wiring Diagram:

1. Power Supply:

   • Positive Terminal: Connects to the positive terminal of the 12V DC power supply.
   • Negative Terminal: Connects to the negative terminal of the 12V DC power supply.

2. Motor Control:

   • Direct Control: For simple applications, connect the motor directly to the power supply.
   • Speed Control: Can be controlled using PWM (Pulse Width Modulation) if speed adjustment is needed.
