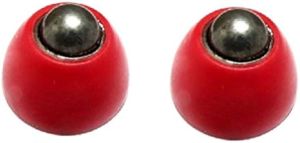

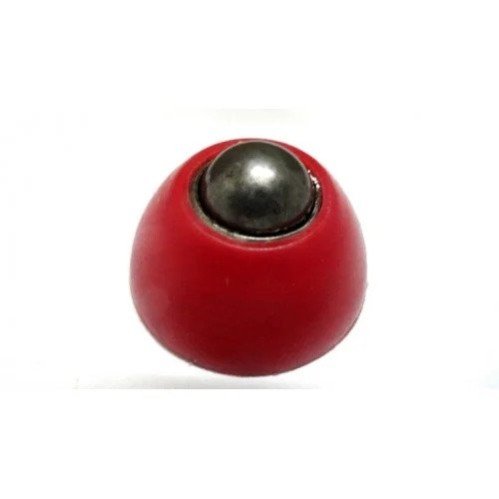

A red caster wheel with a metal ball is a type of omnidirectional wheel used in robotics and various mechanical systems. Caster wheels are typically mounted on the bottom of robots or equipment to provide stability and facilitate smooth movement in any direction. Here’s a detailed overview of this component:

Key Features:

1. Color:

   • Red: The color is often for aesthetic purposes, but it can also be a feature in specific designs or kits.

2. Caster Wheel:

   • Function: Provides easy movement in multiple directions, making it ideal for robots and equipment that need to navigate or turn easily.
   • Type: Can be either swivel or fixed. Swivel casters allow for multidirectional movement, while fixed casters move in only one direction.

3. Metal Ball:

   • Construction: The metal ball (or spherical bearing) is mounted at the center of the caster. It allows the caster wheel to roll smoothly and pivot in any direction.
   • Material: Usually made of metal (such as steel) for durability and smooth operation.

4. Mounting:

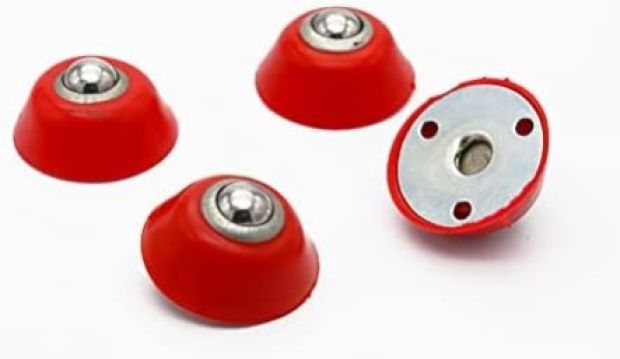

   • Mounting Plate: Typically includes a mounting plate or bracket to attach the caster to the robot or equipment.
   • Screw Holes: Pre-drilled holes for attaching the caster to the chassis or base.

Applications:

1. Robotics:

   • Omnidirectional Movement: Ideal for robots requiring smooth and flexible movement in all directions.
   • Stability: Provides stability and support to the robot, especially when carrying additional weight.

2. Automated Systems:

   • Conveyors: Used in conveyor systems for smooth movement and direction changes.
   • Mobile Platforms: Supports mobile platforms and equipment requiring stable movement.

3. DIY Projects:

   • Custom Robots: Suitable for hobbyists building custom robots with the need for easy maneuverability.
   • Mechanical Systems: Used in various DIY mechanical systems where smooth rolling is needed.

Selecting the Right Caster Wheel:

1. Load Capacity:

   • Weight Support: Ensure the caster wheel can support the weight of the robot or equipment. Check the specifications for load capacity.

2. Wheel Diameter:

   • Size: Choose the diameter based on the height and design of your robot or system. Larger diameters typically provide smoother movement over obstacles.

3. Mounting Type:

   • Compatibility: Ensure the mounting plate or bracket fits the design of your robot or equipment.

4. Material:

   • Durability: Choose a material based on the expected usage. Metal casters are more durable but might be heavier compared to plastic ones.

5. Swivel vs. Fixed:

   • Movement: Decide if you need swivel casters (for full multidirectional movement) or fixed casters (for movement in a single direction).

Installation and Use:

1. Attach the Caster:

   • Align: Position the caster wheel with the mounting plate or bracket aligned with the pre-drilled holes on your robot or equipment.
   • Secure: Use screws or bolts to attach the caster securely.

2. Check Movement:

   • Test Rolling: Ensure the caster wheel rolls smoothly and pivots without obstruction.
   • Adjust if Necessary: Make any necessary adjustments to the mounting or alignment.

3. Load Testing:

   • Verify Support: Test the loaded robot or equipment to ensure the caster wheel supports the weight and moves smoothly.

Maintenance Tips:

1. Inspect Regularly:

   • Check for Wear: Look for signs of wear or damage on the wheel and the metal ball.
   • Tighten Fasteners: Ensure all mounting screws or bolts are tight and secure.

2. Clean the Wheel:

   • Remove Debris: Keep the wheel clean from dust, dirt, or debris that could affect its performance.

3. Lubricate:

   • Smooth Operation: Periodically lubricate the swivel mechanism or ball bearing if needed to ensure smooth movement.

Purchasing:

• Retailers: Available from robotics suppliers, hardware stores, online retailers like Amazon, eBay, and specialty robotics suppliers.
• Specifications: Verify the caster wheel's diameter, load capacity, and mounting options to match your project requirements.

Example Products:

1. Red Caster Wheel with Metal Ball:

   • Diameter: Typically ranges from 1 inch to several inches.
   • Mounting Plate: Includes a metal mounting plate with pre-drilled holes.

2. Swivel Caster Wheel:

   • Features: Provides 360-degree movement with a metal ball bearing.
   • Material: Metal ball and durable plastic or rubber wheel.

By choosing the appropriate red caster wheel with a metal ball and installing it correctly, you can enhance the mobility and functionality of your robotic or mechanical project, ensuring smooth and stable operation in various directions.
