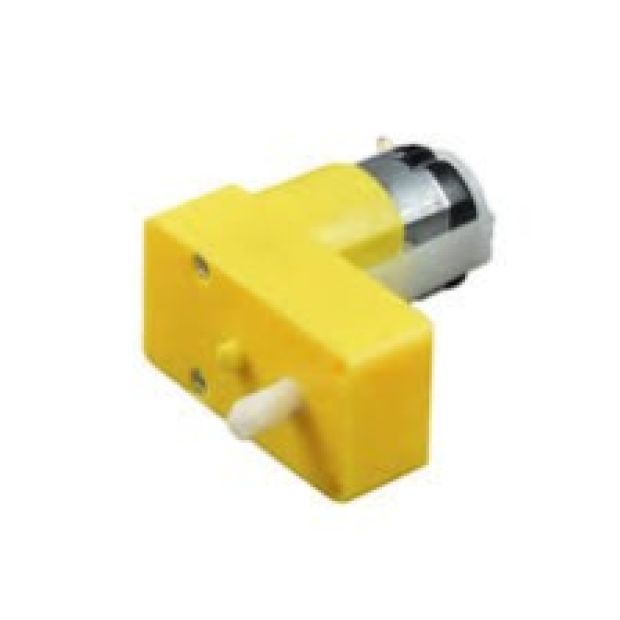

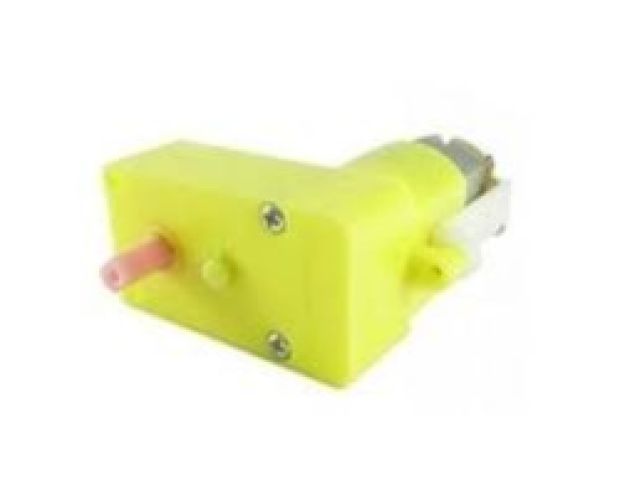

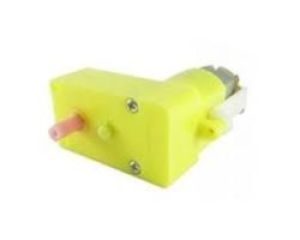

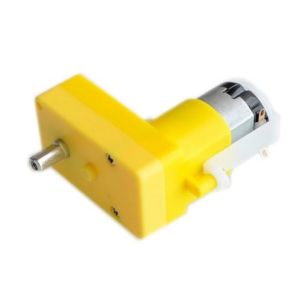

A "BO motor L shape 10 RPM" likely refers to a specific type of low-speed, L-shaped DC motor with a rotational speed of 10 revolutions per minute (RPM). This type of motor is commonly used in applications where precise, slow, and controlled movement is required.

Here’s a breakdown of the key components and characteristics related to this motor:

Understanding the Components

1. BO Motor:

   • "BO" could be part of the manufacturer’s model or series designation. It’s essential to check the specific manufacturer’s documentation for precise details.

2. L Shape:

   • The "L shape" indicates that the motor’s mounting or configuration is in an L-shaped form. This often means the motor and gearbox assembly are designed to fit into a compact space or specific mounting arrangement.

3. 10 RPM:

   • The motor operates at a speed of 10 revolutions per minute. This slow speed is typical in applications requiring precise control, such as in robotics, conveyors, or slow-moving machinery.

Typical Applications

1. Robotics:

   • Used for precise control of robot movements or actuators.

2. Conveyor Systems:

   • Suitable for slow conveyor belts or feeding mechanisms where precise movement is needed.

3. Model Trains:

   • Often used in model trains and other scale models requiring low-speed control.

4. Actuators:

   • Used in actuators for mechanical devices needing slow, controlled movements.

Motor Specifications

When dealing with a low-speed motor like the 10 RPM BO motor, consider the following specifications:

1. Voltage:

   • Common voltages for such motors range from 6V to 12V DC. Ensure that the motor’s voltage rating matches your power supply.

2. Torque:

   • Check the motor’s torque specifications to ensure it can handle the load required for your application.

3. Current Consumption:

   • Be aware of the current draw, especially if you’re powering multiple motors or using a limited power source.

4. Gearbox:

   • The L-shape may indicate an integrated gearbox that reduces the speed from a higher RPM to the desired 10 RPM. Understanding the gearbox ratio is crucial for applications requiring precise speed and torque.

Example Motor Configuration

Here’s an example of how you might use or configure such a motor:

1. Power Supply:

   • Connect the motor to a suitable DC power supply, ensuring it matches the motor’s voltage rating.

2. Mounting:

   • Use the L-shaped mount to secure the motor in your application. This mounting style helps in fitting the motor into tight spaces.

3. Control:

   • You may need a motor controller or driver if you want to control the speed or direction of the motor beyond simple on/off operations.

4. Load:

   • Attach the load or mechanism that the motor will drive. Ensure the motor’s torque is sufficient to handle the load.

Example of a Similar Motor

If you’re looking for a similar motor, you might consider searching for terms like “DC gear motor 10 RPM” or “slow speed gear motor” with specific features. Manufacturers like Pololu, RobotShop, and other electronics suppliers offer a range of low-speed gear motors with various configurations.

Conclusion

The "BO motor L shape 10 RPM" is designed for applications needing precise, low-speed motion. Make sure to verify the specific details and requirements for your application by consulting the manufacturer’s datasheet or product specifications. Properly selecting and configuring the motor will ensure reliable and effective performance in your project.
