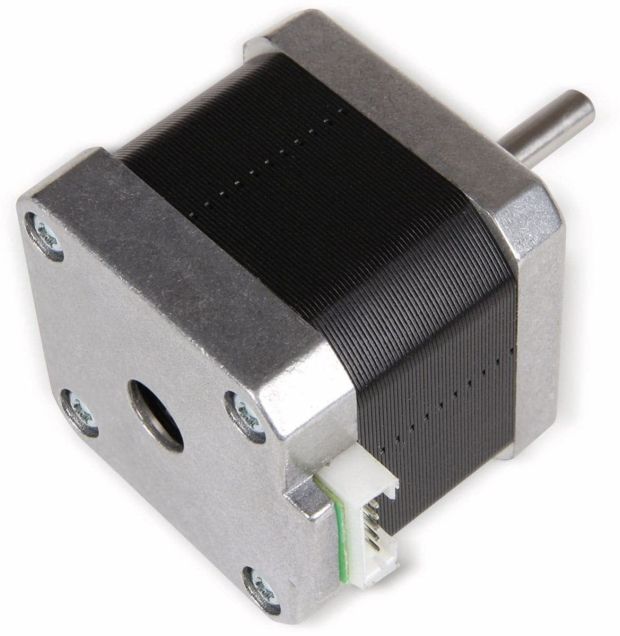

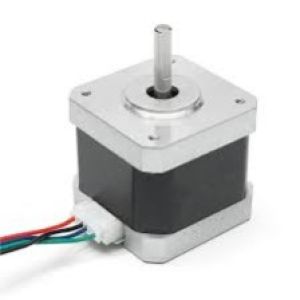

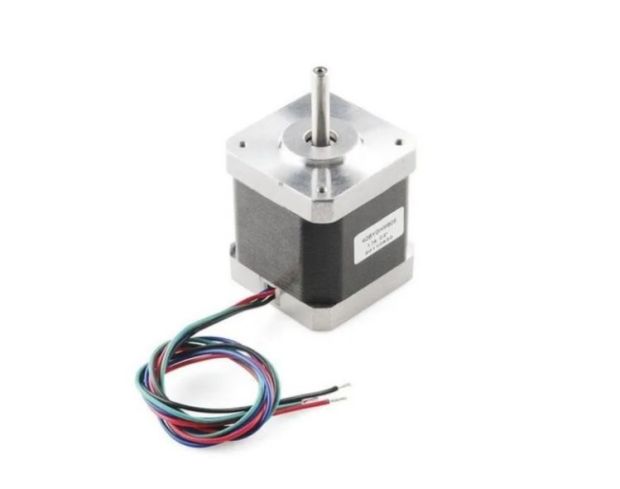

A NEMA 17 stepper motor with a 4.2 kg-cm (or 42 N-cm) torque rating is a popular choice for various precision applications, particularly in 3D printers, CNC machines, and robotics. Here’s a detailed overview of the NEMA 17 stepper motor with this specification:

Key Features of NEMA 17 Stepper Motors

1. NEMA 17 Standard:

   • Size: The "NEMA 17" refers to the motor's faceplate dimensions, which are 1.7 inches (43.2 mm) square. This standardization helps ensure compatibility with mounting brackets and other mechanical components.
   • Mounting Holes: The motor typically has mounting holes at 31 mm on-center for attaching to various frames and equipment.

2. Torque Rating (4.2 kg-cm):

   • Torque Measurement: The torque rating of 4.2 kg-cm (or 42 N-cm) indicates the motor’s ability to handle loads. This is the amount of torque the motor can provide at its shaft.
   • Usage: This torque level is suitable for many applications where moderate to high precision and force are required.

3. Stepper Motor Basics:

   • Stepper Motor Type: Typically, NEMA 17 stepper motors are either unipolar or bipolar. Bipolar motors generally provide higher torque and are more common.
   • Stepper Motor Operation: These motors move in discrete steps, allowing for precise control of rotational position. They are used in applications requiring accurate positioning and repeatability.

Typical Specifications

Here are some typical specifications you might find for a NEMA 17 stepper motor with a 4.2 kg-cm torque rating:

• Size: 42 mm x 42 mm (1.7 inches x 1.7 inches)
• Torque: 4.2 kg-cm (42 N-cm)
• Current Rating: Often around 1.5A to 2A per phase (check specific model)
• Voltage Rating: Depends on the driver and power supply used; typically operates with a 12V to 24V power supply.
• Step Angle: Commonly 1.8° per step (200 steps per revolution)

Applications

1. 3D Printers:

   • Used to control the movement of the print head and build platform with high precision.

2. CNC Machines:

   • Provides precise control of cutting tools and movements in various CNC applications.

3. Robotics:

   • Used for controlling robotic arms, servos, and other moving parts requiring accurate positioning.

4. Automation:

   • Ideal for automated systems where precise control of movement is necessary.

Wiring and Connections

1. Wiring:

   • Bipolar Stepper Motors: Typically have 4 wires (A+, A-, B+, B-). Each coil of the motor has two wires.
   • Unipolar Stepper Motors: Usually have 6 or 8 wires, with two additional wires for the common connections.

2. Driver and Controller:

   • Connect the stepper motor to a stepper motor driver, which will control the motor based on signals from a microcontroller or other control system.
   • Ensure that the driver’s current rating matches the motor’s current requirements.

Example Driver and Controller Setup

• Driver: Use a stepper motor driver like the A4988, DRV8825, or TMC2208, which can handle the current and provide microstepping control.
• Controller: Connect the driver to a microcontroller or a CNC controller, such as an Arduino with a stepper shield.

Example Motor and Suppliers

Here are a few examples of suppliers where you can find NEMA 17 stepper motors with a 4.2 kg-cm torque rating:

• Pololu: Offers a range of stepper motors with detailed specifications.
• Adafruit: Provides stepper motors and driver boards for various applications.
• Amazon/Ebay: Search for "NEMA 17 stepper motor 4.2 kg-cm" to find various options.

Conclusion

A NEMA 17 stepper motor with a 4.2 kg-cm torque rating is a versatile choice for applications requiring precise control and moderate to high torque. Ensure compatibility with your driver and control system, and verify specifications to match your application's requirements. Proper setup and configuration will ensure reliable and accurate performance in your projects.
