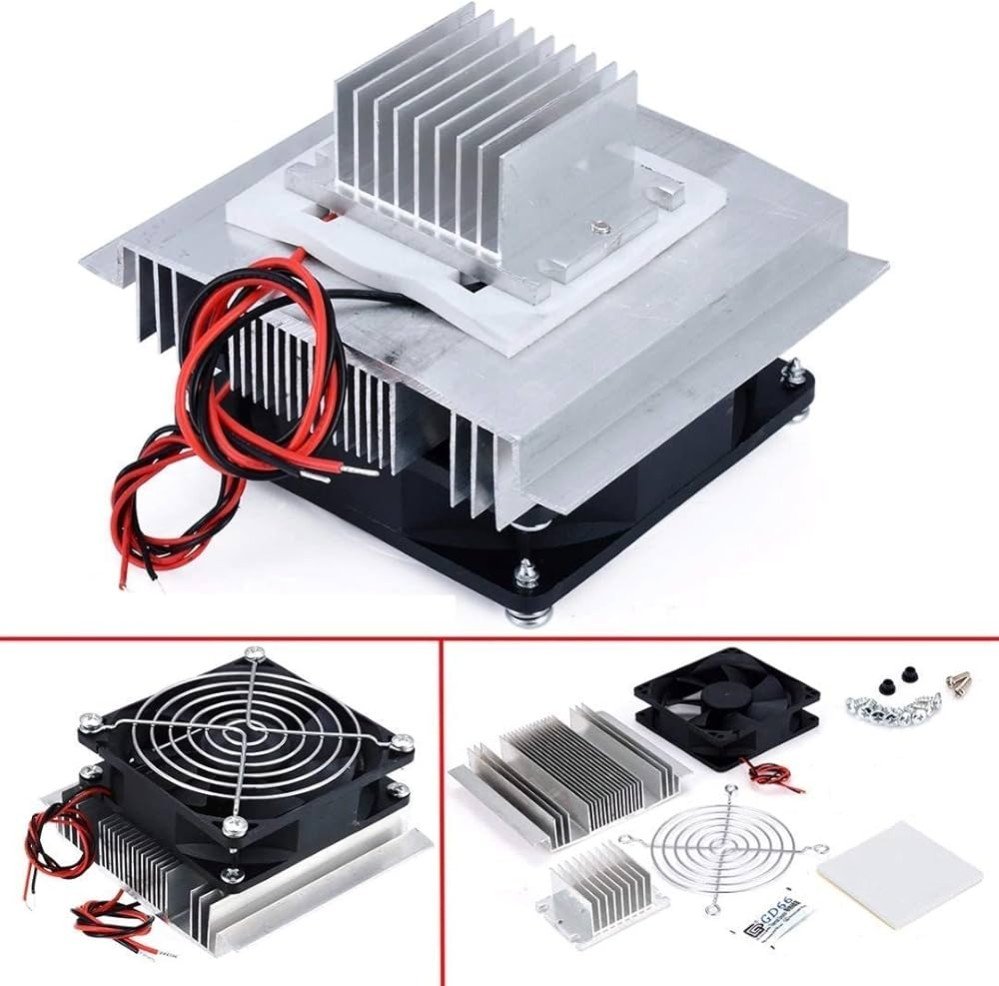

A Thermoelectric Peltier Refrigeration Cooling System DIY Kit allows you to create a refrigeration system based on the Peltier effect. This effect occurs when electric current flows through a junction of two different materials, creating a heat differential — one side becomes cold and the other side becomes hot. This DIY kit typically includes the necessary components to build a small thermoelectric cooler, which can be used for cooling applications such as mini refrigerators, coolers for electronics, or small-scale temperature regulation systems.

Here’s an outline of what you might find in such a kit and how it works:

Key Components of a Peltier Cooling Kit:

1. Peltier Module (Thermoelectric Cooler):

   • This is the core of the system. It has two sides: one side absorbs heat and gets cold, while the other side releases heat and gets hot. When voltage is applied, the cold side can be used for cooling purposes.

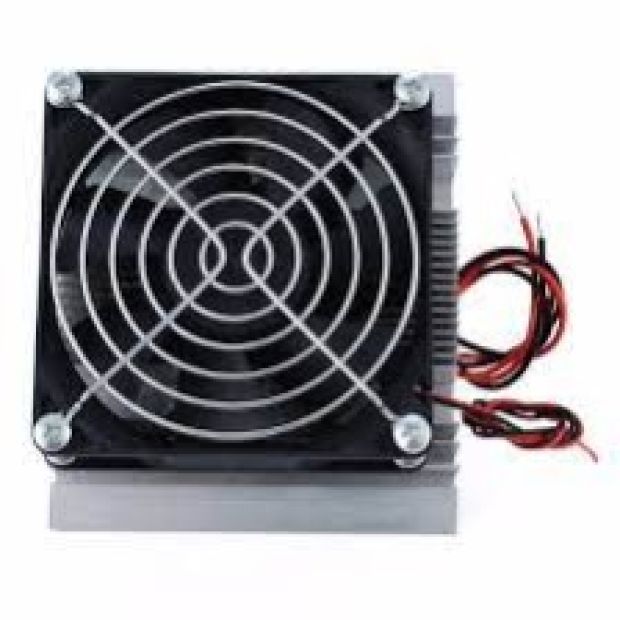

2. Heat Sink (with Fan):

   • A heat sink, often with an attached fan, is used on the hot side of the Peltier module to dissipate the heat efficiently. Without proper heat dissipation, the Peltier module may not function effectively.

3. Power Supply:

   • The kit may include a power supply or instructions on how to provide the appropriate voltage and current to the Peltier module. Typically, 12V DC power is used for most DIY kits.

4. Thermal Paste:

   • To ensure good thermal conductivity between the Peltier module and the heat sink, thermal paste is included in the kit. It improves the efficiency of heat transfer.

5. Insulation Material:

   • Insulation is often included to ensure the cold side remains isolated and to improve overall efficiency.

6. Temperature Sensors (Optional):

   • Some kits come with temperature sensors that allow you to monitor the temperature difference between the cold and hot sides of the Peltier module.

7. Cooling Box/Enclosure (Optional):

   • A small enclosure or cooling box might be included, which allows you to mount the Peltier cooler for practical use, such as a mini fridge.

How It Works:

1. Apply Voltage to the Peltier Module: When current is passed through the Peltier module, it creates a temperature gradient where one side gets cold and the other side gets hot.

2. Heat Dissipation: The hot side is connected to a heat sink, usually with a fan, to disperse the heat generated. If the heat isn’t efficiently removed, the cooling process will not work well.

3. Cooling Effect: The cold side of the module can be used to cool small areas or objects. The temperature difference is often not extremely large, so this type of cooling is suitable for low-power or small-scale applications.

Applications:

• Cooling Electronics: Prevent overheating in components like microprocessors or power transistors.
• Miniature Refrigerators: For cooling small spaces like beverage coolers or small food storage.
• Portable Coolers: For camping, picnics, or other outdoor activities.
• Temperature Regulation for Experiments: In scientific or educational settings to demonstrate thermoelectric effects.

Considerations:

• Heat Management: A Peltier module’s cooling efficiency is highly dependent on how effectively the heat is dissipated from the hot side.
• Power Consumption: These systems tend to consume a significant amount of power for the amount of cooling they provide, so energy efficiency may be a factor.
• Temperature Range: These systems are most effective for small temperature differences, so they may not be suitable for larger cooling tasks.

Building Your Own System:

• Step 1: Attach the Peltier module to the cold side of your cooling enclosure.
• Step 2: Apply thermal paste to ensure good thermal contact between the module and the heat sink.
• Step 3: Attach the heat sink to the hot side of the Peltier module.
• Step 4: Connect the power supply to the module, ensuring it provides the appropriate voltage and current.
• Step 5: Test the system, ensuring proper heat dissipation and checking the temperature differential.

If you want to build your own DIY thermoelectric cooling system, look for a kit that includes the above components and a manual that guides you step-by-step through the assembly process.
