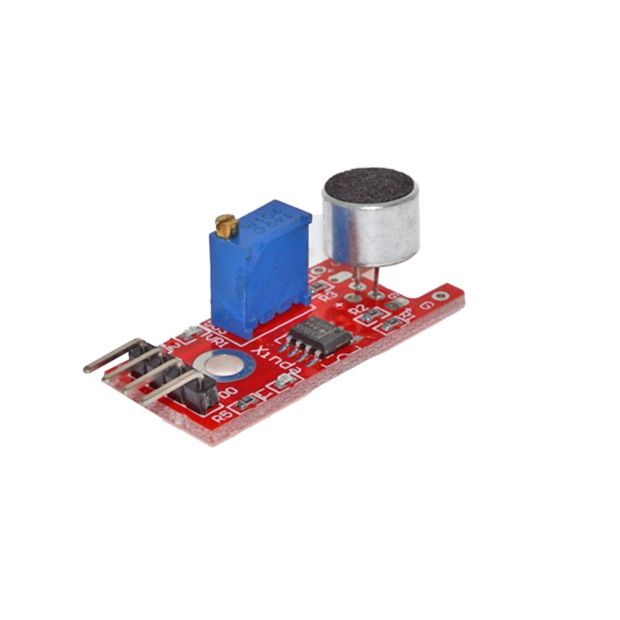

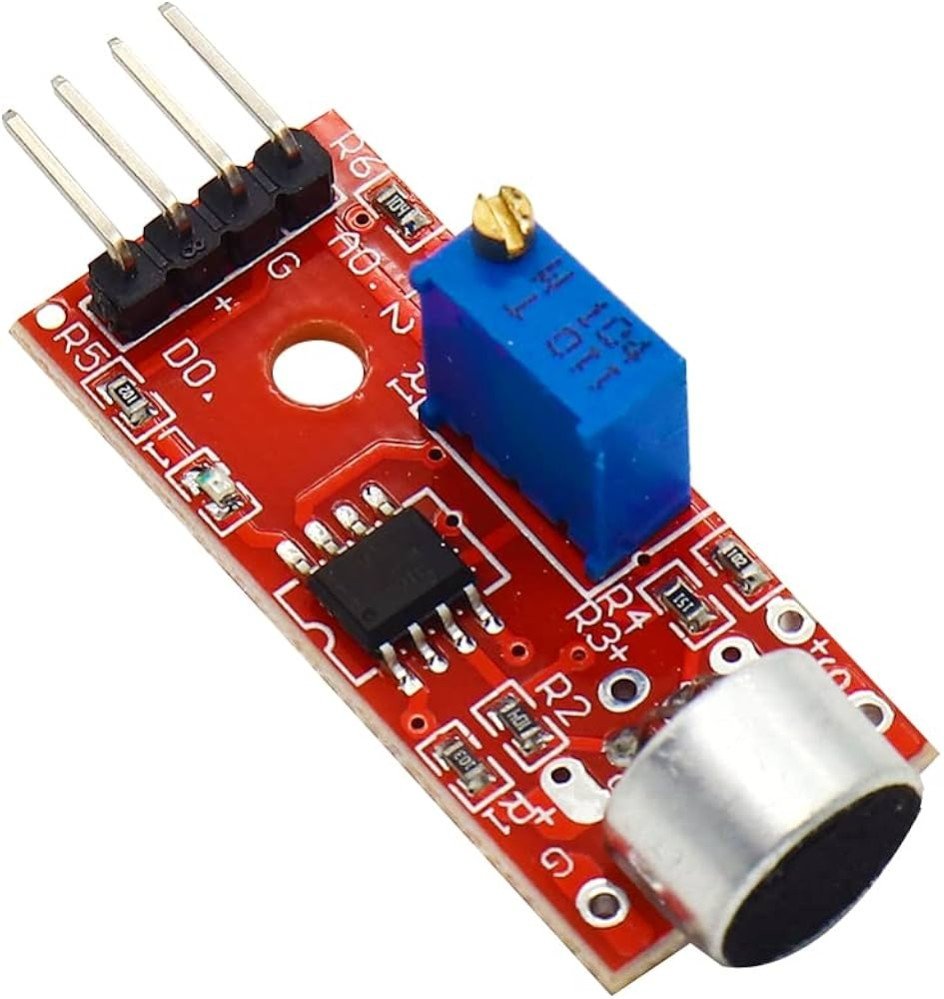

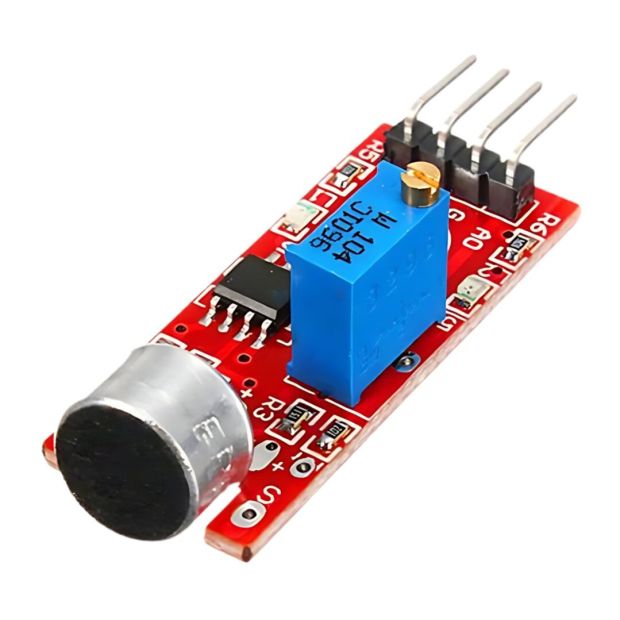

A sound sensor module is a device designed to detect and measure sound levels. It's commonly used in various applications such as noise detection, sound-activated projects, or even in security systems. Here's a brief overview of its main components and functionalities:

1. Microphone: This is the primary component that picks up sound waves and converts them into electrical signals. Most sound sensors use an electret condenser microphone for this purpose.

2. Amplifier: The electrical signal from the microphone is usually very weak, so it's amplified to a more manageable level by the amplifier circuit.

3. Analog-to-Digital Converter (ADC): In some sound sensor modules, the amplified analog signal is converted into a digital signal that can be processed by microcontrollers or other digital systems.

4. Comparator Circuit: This part of the module compares the sound level to a predefined threshold. If the sound level exceeds this threshold, it triggers an output signal.

5. Output Pins: The sensor typically has output pins that provide signals to external devices. These can include digital output (for triggering actions) or analog output (for monitoring sound levels).

6. Sensitivity Adjustment: Many modules come with a potentiometer or other means to adjust the sensitivity of the sound detection, allowing you to fine-tune the module for different environments or requirements.

7. Power Supply: The module requires a power source, usually operating at a low voltage like 3.3V or 5V.

Applications:

• Noise Level Monitoring: To measure and monitor environmental noise.
• Sound-Activated Switches: To turn on or off devices based on sound levels.
• Security Systems: To detect unusual sounds or alarms.
• Interactive Projects: In educational and hobbyist projects to create sound-responsive gadgets.

Do you have a specific project or application in mind for using a sound sensor module?

import RPi.GPIO as GPIO
import time

# Set up GPIO mode
GPIO.setmode(GPIO.BCM)

# Define the GPIO pin for the sound sensor's digital output
SENSOR_PIN = 17  # Change this based on your wiring

# Set up the GPIO pin as an input pin
GPIO.setup(SENSOR_PIN, GPIO.IN)

# Function to monitor sound
def monitor_sound():
    print("Monitoring for sound...")

    try:
        while True:
            # Read the value from the sound sensor's digital output (0 or 1)
            sound_detected = GPIO.input(SENSOR_PIN)

            # If the sensor detects sound, it will output 1 (HIGH)
            if sound_detected == GPIO.HIGH:
                print("Sound detected!")
            else:
                print("No sound detected.")

            time.sleep(1)  # Delay for 1 second

    except KeyboardInterrupt:
        print("Program interrupted. Cleaning up...")

    finally:
        GPIO.cleanup()  # Clean up GPIO settings

# Run the function to monitor sound
monitor_sound()
