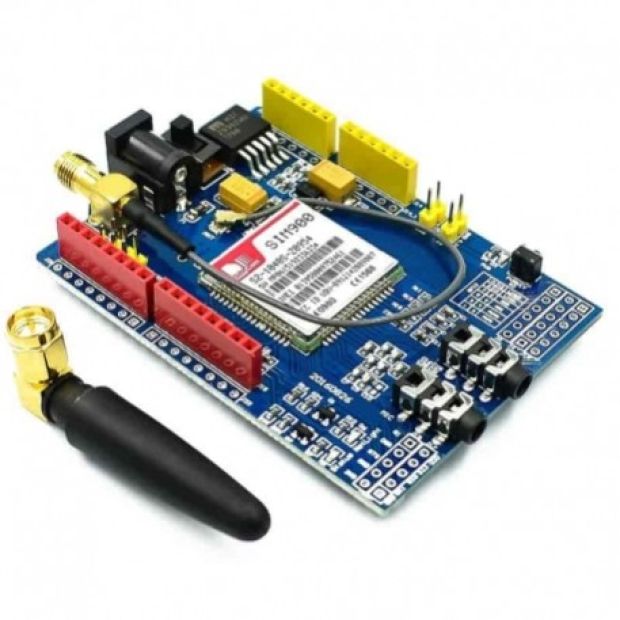

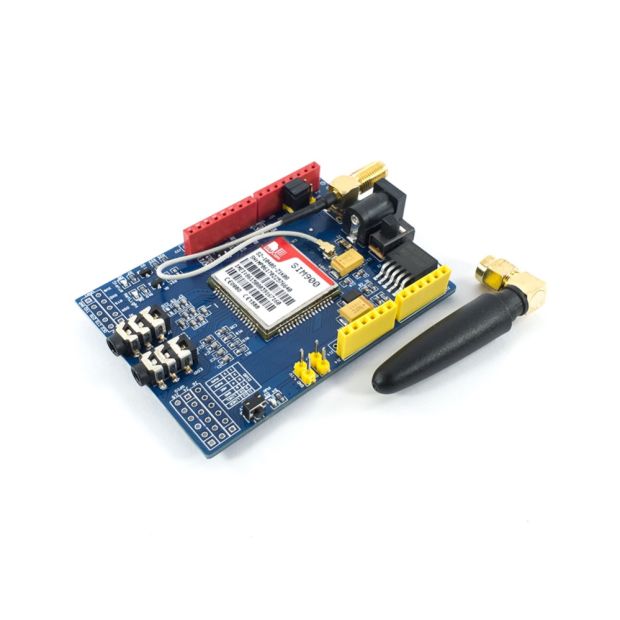

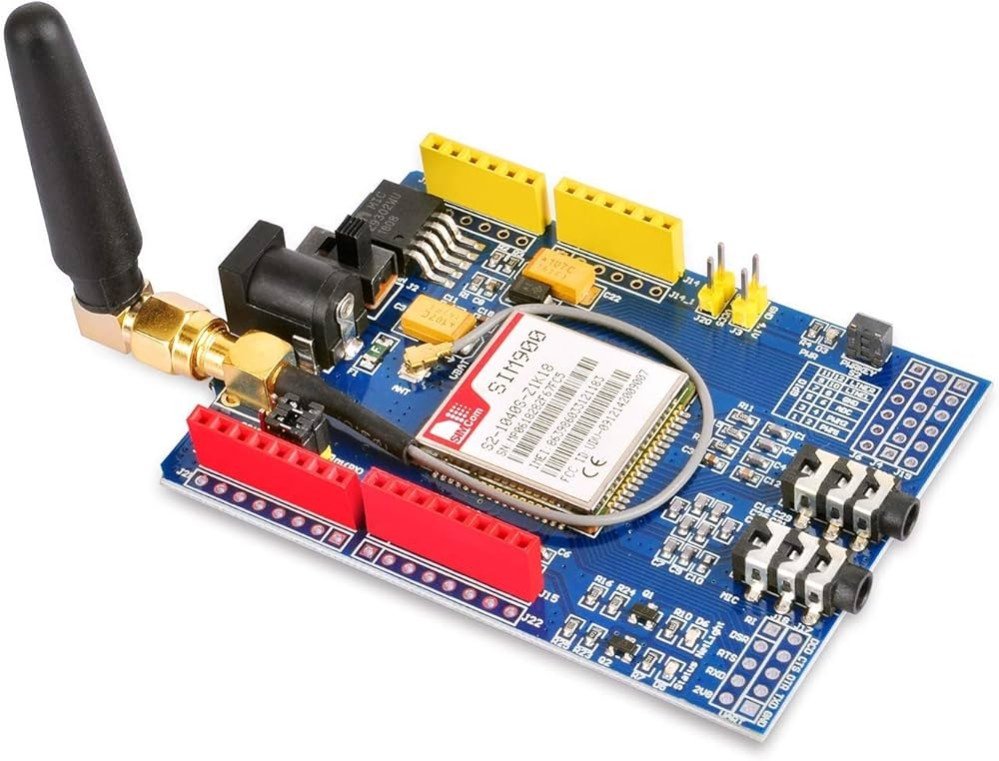

The SIM900 is a GSM/GPRS module developed by SIMCom, designed for wireless communication applications. It provides connectivity for voice calls, SMS, and data transfer over GSM/GPRS networks. Here’s a detailed description of the SIM900 module:

Key Features:

1. GSM/GPRS Capabilities:

   • GSM: Supports voice communication and SMS (Short Message Service) using GSM network standards.
   • GPRS: Provides data connectivity for internet access and data transfer over cellular networks, utilizing General Packet Radio Service (GPRS).

2. Frequency Bands:

   • Quad-Band Operation: Operates on multiple frequency bands:
     • GSM 850 MHz
     • GSM 900 MHz
     • DCS 1800 MHz
     • PCS 1900 MHz
   • This quad-band support allows the SIM900 to function globally, covering most cellular networks.

3. Interfaces:

   • Serial Communication: Uses UART (Universal Asynchronous Receiver-Transmitter) for communication with microcontrollers and other devices.
   • Power Supply: Typically operates on 3.4V to 4.4V, but check module specifications for exact requirements.
   • I/O Pins: Includes pins for functions such as power, reset, and serial communication.

4. Communication Protocols:

   • AT Commands: Utilizes AT (Attention) commands to control the module and perform operations such as sending SMS, making calls, and connecting to the internet.
   • GPRS Data Protocols: Supports standard data protocols including TCP/IP for internet connectivity.

5. Additional Features:

   • SIM Card Slot: Accommodates a standard SIM card for network connectivity.
   • SMS Storage: Can store incoming and outgoing SMS messages.
   • Power Management: Features power-saving modes to reduce energy consumption.

Applications:

1. Remote Communication: Ideal for applications that require remote communication capabilities, such as telemetry and remote monitoring systems.
2. IoT Solutions: Used in Internet of Things (IoT) applications to enable devices to connect to the internet and communicate with cloud services.
3. Automated Systems: Facilitates automated systems where voice calls or SMS notifications are needed, such as security alarms and automated reporting systems.
4. GPS Integration: Often used with GPS modules to provide location-based services and tracking.

Example Connection with Arduino:

To connect and use the SIM900 module with an Arduino, follow these steps:

Wiring Instructions:

1. SIM900 to Arduino:
   • VCC (SIM900) to 5V or 4.2V (Arduino) (ensure a stable power supply as SIM900 can require significant current).
   • GND (SIM900) to GND (Arduino).
   • TX (SIM900) to RX (Arduino) (e.g., D2 if using SoftwareSerial).
   • RX (SIM900) to TX (Arduino) (e.g., D3 if using SoftwareSerial).
   • Reset, PWRKEY, and other control pins may be connected according to the module’s datasheet or application requirements

#include <SoftwareSerial.h>

// Create a software serial port to communicate with SIM900
SoftwareSerial sim900(2, 3); // RX, TX pins for SIM900

void setup() {
  // Start the hardware serial communication (used for debugging)
  Serial.begin(9600);

  // Start the software serial communication for SIM900 module
  sim900.begin(9600);

  Serial.println("Initializing...");

  // Wait for the module to initialize and respond
  delay(1000);

  // Check if the SIM900 is responding by sending the 'AT' command
  sim900.println("AT");
  delay(1000);
  if (sim900.available()) {
    while (sim900.available()) {
      char c = sim900.read();
      Serial.write(c); // Display response on Serial Monitor
    }
  }

  // Send SMS using SIM900 module
  sendSMS("Your phone number here", "Hello from Arduino with SIM900!");

}

void loop() {
  // Here, you can add more functionality like receiving SMS, etc.
}

// Function to send SMS
void sendSMS(String phoneNumber, String message) {
  Serial.println("Sending SMS...");

  // Send the AT command to set the SMS mode to text mode
  sim900.println("AT+CMGF=1"); // Set SMS text mode
  delay(1000);

  // Send the recipient phone number
  sim900.print("AT+CMGS="");
  sim900.print(phoneNumber);
  sim900.println(""");
  delay(1000);

  // Send the SMS message
  sim900.println(message);
  delay(1000);

  // Send the Ctrl+Z character to send the SMS
  sim900.write(26); // ASCII code for Ctrl+Z
  delay(1000);

  // Wait for the response and print it to Serial Monitor
  if (sim900.available()) {
    while (sim900.available()) {
      char c = sim900.read();
      Serial.write(c); // Display response from SIM900
    }
  }

  Serial.println("SMS Sent!");
}
