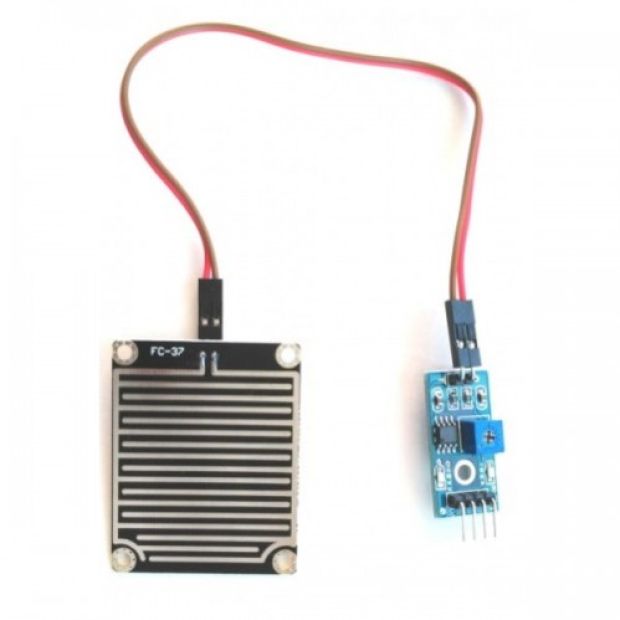

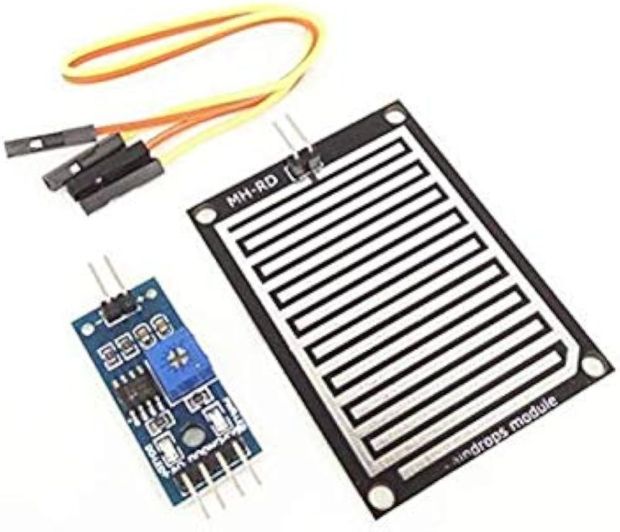

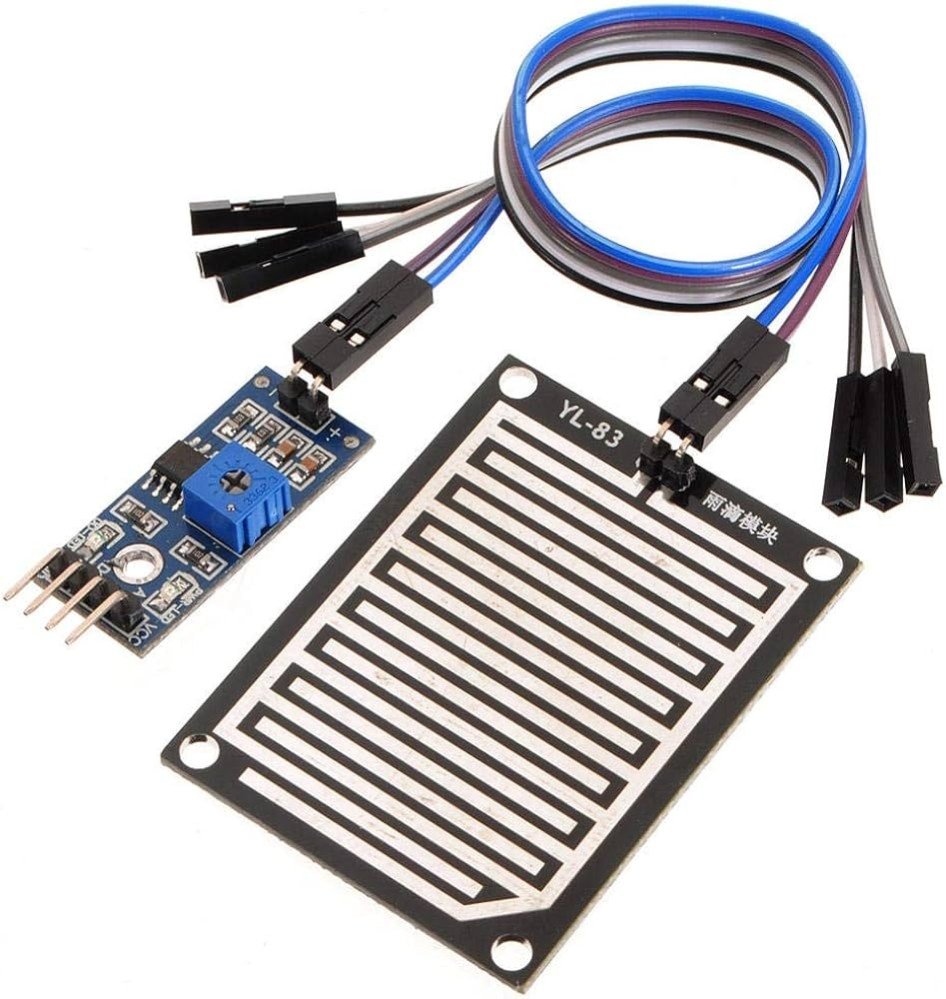

The raindrop sensor, often referred to as a rain detection sensor or rainwater sensor, is a device used to detect the presence of rain. It typically consists of a sensor board that includes conductive pads to sense raindrops. Here’s an overview:

Key Features

• Simple Operation: It detects rain by measuring the conductivity between its pads. When water bridges the gap, it triggers a response.
• Analog Output: Some models provide an analog output proportional to the amount of rain detected.
• Digital Output: Many sensors offer a digital signal indicating whether it is raining (high/low).
• Adjustable Sensitivity: Some sensors allow for sensitivity adjustments to reduce false positives.

Common Applications

• Automatic Irrigation Systems: To prevent watering during rain.
• Weather Stations: For measuring precipitation.
• Smart Home Systems: To trigger actions based on rain detection, like closing windows.
• Outdoor Equipment: To protect devices from getting wet.

Basic Connection

To connect a raindrop sensor to a microcontroller (like Arduino), you typically:

• Connect the VCC pin to a power source (usually 5V).
• Connect the GND pin to ground.
• Connect the signal pin to an analog or digital input pin on the microcontroller.

Programming

Using an Arduino, you can easily read the sensor's output. A simple sketch might involve reading the signal pin and taking action when it indicates rain.

If you need help with wiring or code examples, let me know!
