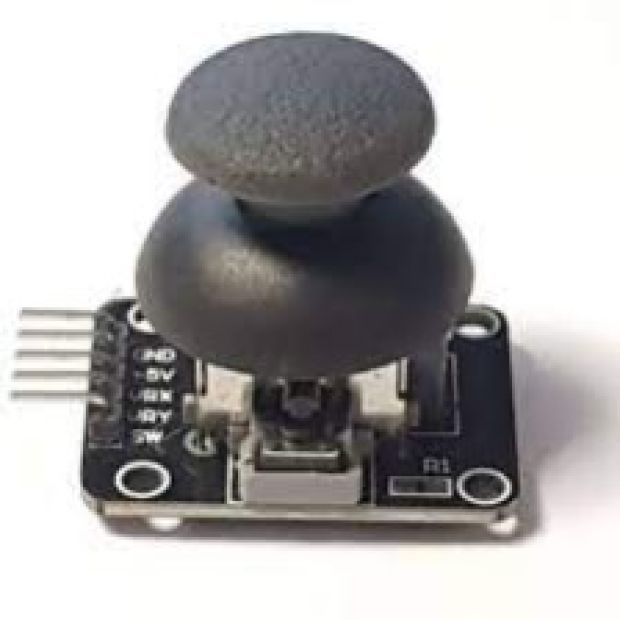

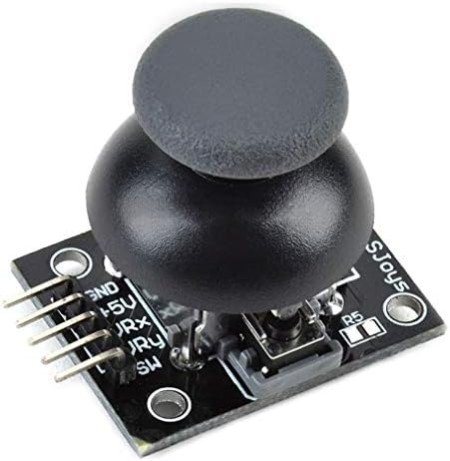

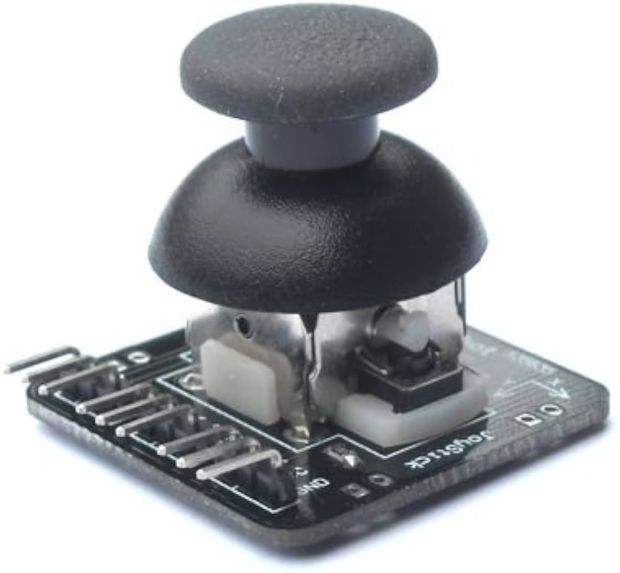

A PS2 joystick module typically refers to a module that allows you to use a joystick with a PS2 (PlayStation 2) gaming console or with microcontrollers for various electronic projects. These modules are often used in hobbyist electronics and robotics. They usually come with two potentiometers that measure the joystick's X and Y axes' movements and sometimes additional buttons.

Here’s a basic overview of how a PS2 joystick module works:

1. Joystick Operation:

   • The joystick itself is a variable resistor (potentiometer) for each axis. Moving the joystick changes the resistance, which the module reads to determine the position of the joystick.

2. Connections:

   • Typically, a PS2 joystick module has several pins:
     • VCC: Power supply (often 3.3V or 5V depending on the module).
     • GND: Ground.
     • X-axis: Output pin for the horizontal position.
     • Y-axis: Output pin for the vertical position.
     • SW (Switch): If the joystick includes a push-button feature, this pin will be used to detect when the joystick is pressed.

3. Interface:

   • The module outputs analog signals for the X and Y axes. These signals can be read by an analog-to-digital converter (ADC) on a microcontroller, like an Arduino or Raspberry Pi, to determine the joystick's position.
   • The switch pin (if present) can be connected to a digital input on a microcontroller to detect button presses.

4. Applications:

   • Robotics: To control the movement of a robot.
   • Gaming: For custom game controllers or projects.
   • Prototyping: In various electronic projects requiring user input.

Connecting a PS2 Joystick Module

Here's a basic guide for connecting a PS2 joystick module to an Arduino:

1. Wiring:

   • Connect the VCC pin of the joystick module to the 5V pin on the Arduino.
   • Connect the GND pin of the joystick module to the GND pin on the Arduino.
   • Connect the X-axis pin to one of the Arduino’s analog input pins (e.g., A0).
   • Connect the Y-axis pin to another analog input pin (e.g., A1).
   • If there is a SW pin, connect it to a digital input pin (e.g., D2).
