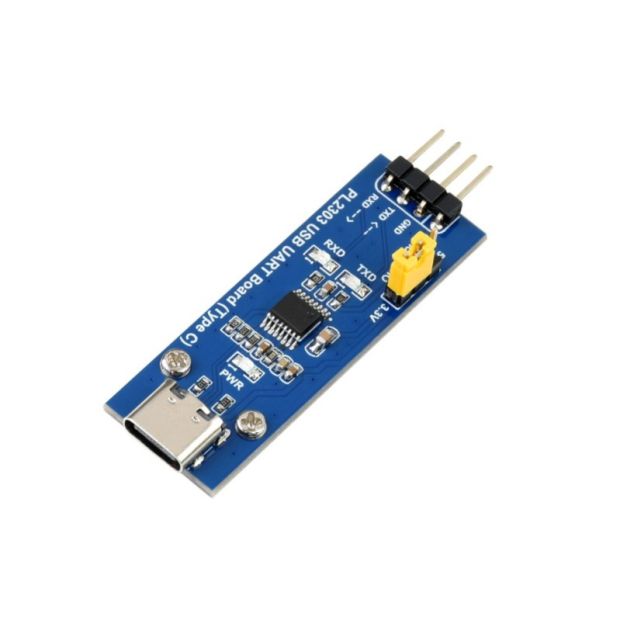

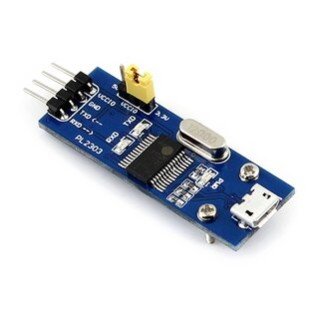

The PL2303 is a popular USB-to-serial bridge controller IC (Integrated Circuit) produced by Prolific Technology Inc. It allows microcontrollers, such as the Arduino, or other devices without native USB support to communicate with a host computer or other devices via USB. Here's a description and basic information about the PL2303 module:

PL2303 Module Overview:

1. Functionality:

   • The PL2303 module acts as a bridge between USB and UART (Universal Asynchronous Receiver/Transmitter) interfaces.
   • It converts USB signals from a computer or USB host into UART signals that can be used by microcontrollers or other serial devices.
   • It supports various baud rates and data formats for serial communication.

2. Pinout:

   • The PL2303 module typically has the following pins or connections:
     • USB Interface: Connects to a USB port on the computer or USB host device.
     • TX (Transmit): Outputs serial data from the PL2303 to the connected microcontroller or device.
     • RX (Receive): Inputs serial data from the microcontroller or device to the PL2303.
     • 5V, 3.3V, GND: Power and ground connections for the module.

3. Features:

   • USB Compatibility: Supports USB 1.1 and USB 2.0 standards.
   • Driver Support: Requires drivers for specific operating systems (Windows, macOS, Linux) to enable communication.
   • Voltage Levels: Typically operates at 5V or 3.3V logic levels, depending on the module variant.

4. Applications:

   • Programming and Debugging: Used to program microcontrollers or debug applications via a serial console over USB.
   • Data Logging: Interfaces with sensors or modules that communicate via UART, allowing data logging to a computer.
   • Peripheral Communication: Bridges USB devices to microcontroller projects, enabling communication with peripherals like GPS modules, GSM modules, etc.

Example Use with Arduino:

If you're using the PL2303 module with an Arduino (e.g., Arduino Uno) to enable USB communication for programming or debugging, here are the basic connections:

• PL2303 Module:

  • USB: Connect to a USB port on your computer.
  • TX: Connect to Arduino RX pin (receive).
  • RX: Connect to Arduino TX pin (transmit).
  • GND: Connect to Arduino GND.

• Arduino:

  • TX (Transmit Pin): Connect to PL2303 RX pin.
  • RX (Receive Pin): Connect to PL2303 TX pin.
  • GND: Connect Arduino GND to PL2303 GND.

Driver Installation:

• Depending on your operating system, you may need to install specific drivers for the PL2303 module. Drivers can typically be downloaded from the Prolific website or included with your operating system's driver library.

Notes:

• Ensure proper voltage levels are observed when connecting the PL2303 module to your Arduino or any other microcontroller. Some modules operate at 5V logic levels, while others are 3.3V.
• Check the datasheet or documentation specific to your PL2303 module variant for detailed pinout and voltage information.

By understanding these basics, you can effectively use the PL2303 module to add USB-to-serial capabilities to your Arduino projects or other microcontroller-based applications.
