Features:

Note:

Optional OLED & SDCARD modules are provided on this board, Hobbyists/developers can make use of this module with their previous knowledge or open-source community support and we do not have the support for the optional module.

MCU

• Only 35 single-word instructions to learn
• All single-cycle instructions except for program branches, which are two-cycle
• Operating speed: DC – 20 MHz clock input DC – 200 ns instruction cycle
• Up to 8K x 14 words of Flash Program Memory, Up to 368 x 8 bytes of Data Memory (RAM), Up to 256 x 8 bytes of EEPROM Data Memory
• Pinout compatible to other 28-pin or 40/44- pin PIC16CXXX and PIC16FXXX microcontrollers

Analog Features

• 10-bit, up to 8-channel Analog-to- Digital Converter(A/D)

Peripheral Features

• Timer0: 8-bit timer/counter with 8-bit prescaler
• Timer1: 16-bit timer/counter with prescaler,
• Timer2: 8-bit timer/counter with 8-bit period register,prescaler and postscaler
• Two Capture, Compare, PWMmodules
• Synchronous Serial Port (SSP) with SPI™ (Mastermode)and I2C™ (Master/Slave)
• Universal Synchronous Asynchronous Receiver Transmitter(USART/SCI) with 9-bit address detection
• Parallel Slave Port (PSP) – 8 bits wide with external RD,WR and CS controls (40/44-pin only)

Scope of Learning Experiments:

Supported IC:

PIC16F74, PIC16F77, PIC16F747, PIC16F777, PIC16F871, PIC16F874, PIC16F877, PIC16F877A, IC16F887, PIC18F452, PIC18F458, PIC18F4220, PIC18F4320, PIC18F4431, PIC18F4331, PIC18F4520, PIC18F4420, PIC18F4550, PIC18F4455, PIC18F4580, PIC18F4480, PIC18F4585, PIC18F4680, PIC18F4620, PIC18F45J10, PIC18F44J10, PIC18F44JPIC18F43K20, PIC18F44K20, PIC18F46K20

Package Contains :

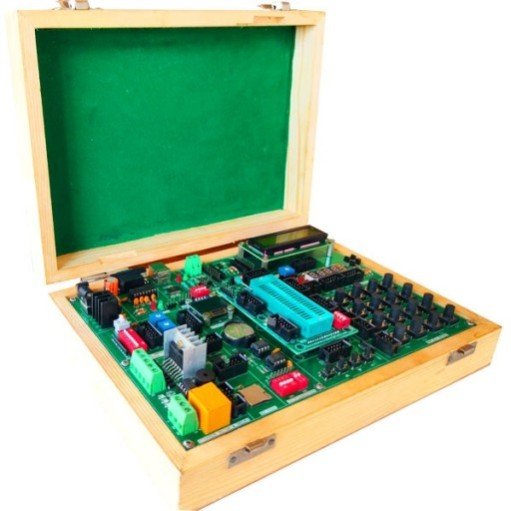

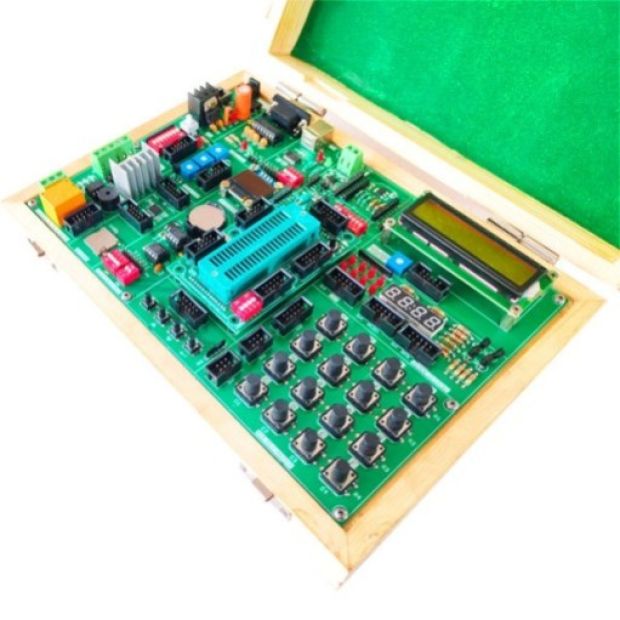

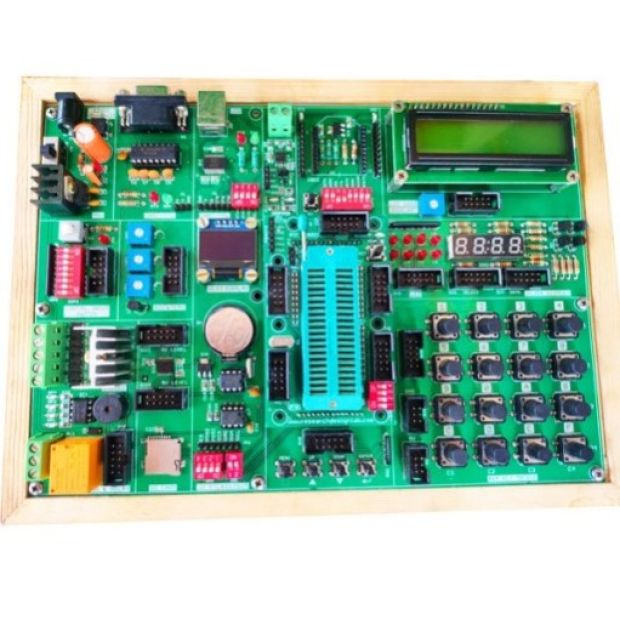

• Development Board with Wooden Enclosure
• USB Cable.
• 12V 2A Adapter.
• FRC Cable
