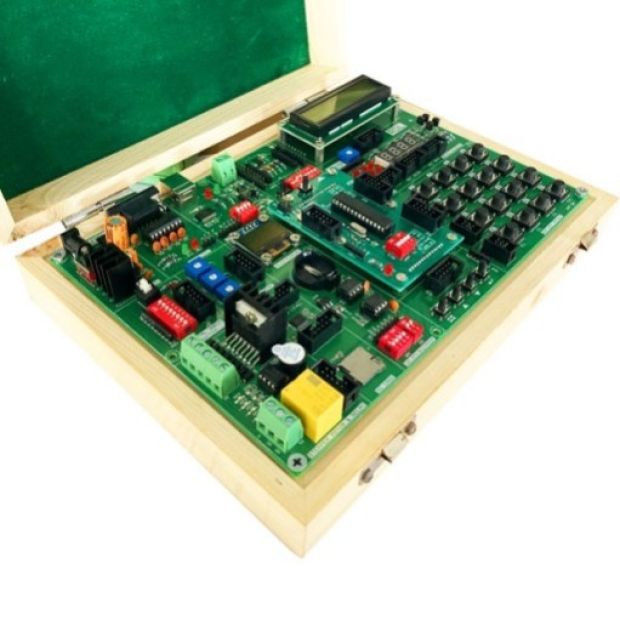

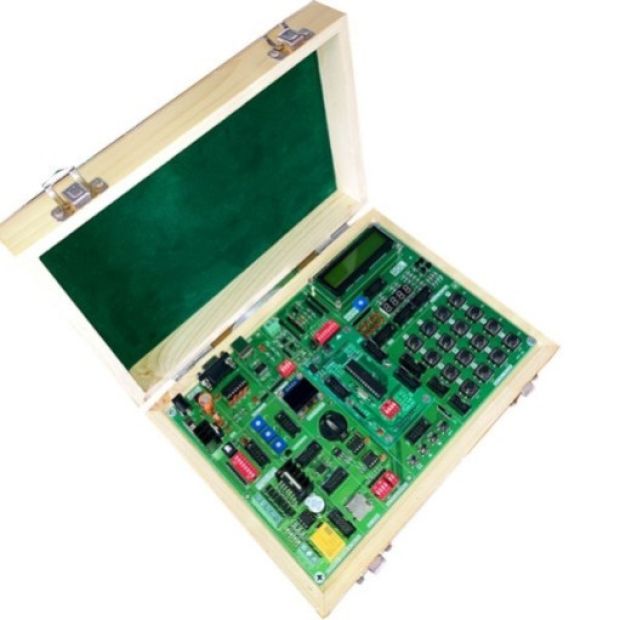

An ATmega328 Development Board Trainer Kit is an educational tool designed for learning and experimenting with the ATmega328 microcontroller, which is a popular microcontroller used in various embedded systems, notably in the Arduino platform. The ATmega328 is an 8-bit microcontroller based on the AVR architecture, offering excellent versatility, ease of use, and a wide range of applications, from simple hobby projects to professional prototypes.

Key Features of an ATmega328 Development Board Trainer Kit:

1. ATmega328 Microcontroller:

• Core Architecture: The ATmega328 is based on the AVR architecture and is known for its low power consumption, wide operating voltage range, and robust performance.
• Specifications:
  • 32KB Flash Memory for program storage
  • 2KB SRAM for data storage
  • 1KB EEPROM for non-volatile data storage
  • 23 I/O pins for interfacing with external devices
  • Built-in Timers and PWM for generating time delays and controlling devices like motors or LEDs
  • USART (Universal Serial Communication Interface) for serial communication
  • ADC (Analog-to-Digital Converter) for reading analog inputs (e.g., temperature sensors, light sensors)

2. Programming Interface:

• USB-to-Serial Interface: The ATmega328 can be programmed via a USB-to-Serial adapter (e.g., FTDI or CH340). Many development kits come with a built-in USB interface for easy programming and communication with a computer.
• Bootloader: If the board is pre-programmed with a bootloader (e.g., Arduino bootloader), the microcontroller can be programmed through the Arduino IDE using a USB cable, making it beginner-friendly for users who are familiar with the Arduino environment.

3. Peripherals and Components:

• LEDs: Basic output devices such as LEDs are included to demonstrate simple on/off functionality or to create visual feedback (e.g., for blinking LEDs).
• 7-Segment Display: Used to display numerical data, such as counting, time, or sensor values.
• LCD Display: Some kits include a 16x2 LCD display for displaying more complex text-based output.
• Push Buttons/Switches: Used for user input to trigger events or actions.
• Potentiometer: A variable resistor that allows users to adjust values (e.g., controlling the brightness of an LED or adjusting sensor thresholds).
• Buzzer: Can be used for sound alerts or feedback in applications such as alarm systems or counters.

4. Power Supply:

• 5V Power Supply: The board usually runs on a 5V DC supply. Some kits come with a regulated power adapter, while others may support USB power (if using a USB-to-serial interface).
• Battery Power: Many kits offer a battery connector to run the board off an external battery, making it suitable for portable applications.

5. Input/Output Interfaces:

• Digital I/O Pins: The ATmega328 microcontroller has multiple digital I/O pins that can be configured as input or output to control external devices like LEDs, relays, and sensors.
• Analog Inputs: The board may expose analog input pins (via ADC) to interface with analog sensors, such as temperature sensors, light sensors, or potentiometers.
• PWM Output: The microcontroller supports PWM (Pulse Width Modulation) on specific pins, useful for controlling the speed of motors, brightness of LEDs, or audio generation.
• Relay Interface: Some kits include relay drivers for controlling high-power devices like lights or motors.

6. Communication Interfaces:

• Serial Communication (USART): The ATmega328 has built-in USART capabilities, which allow it to communicate with external devices like computers, sensors, or other microcontrollers via UART or RS-232.
• I2C/SPI Interfaces: Many kits provide support for I2C or SPI communication to interface with external sensors or peripherals (e.g., EEPROMs, sensors, displays).
• Bluetooth/Wi-Fi: Some advanced kits offer the option to connect the ATmega328 to Bluetooth or Wi-Fi modules (e.g., HC-05 Bluetooth, ESP8266 Wi-Fi) for wireless communication and IoT applications.

7. Timers and Counters:

• The ATmega328 includes several 16-bit timers that can be used for generating time delays, counting events, or generating PWM signals for motor control or sound output.
• Watchdog Timer: The watchdog timer can be used to reset the system in case of a malfunction, adding a layer of reliability to embedded applications.

8. Learning and Experimentation Features:

• Breadboard and Jumper Wires: For hands-on learning, the kit typically includes a breadboard and jumper wires, making it easy to experiment with various components and build circuits.
• Documentation: A typical ATmega328 trainer kit includes datasheets, tutorials, example programs, and step-by-step guides to help beginners understand how to program the microcontroller and interface with different components.
• Example Projects: The kit often includes example projects to get started, such as LED blink, temperature monitoring, motor control, and more.

9. Software Tools:

• Arduino IDE: If the board is compatible with the Arduino platform, users can program the ATmega328 using the Arduino IDE, which provides an easy-to-use environment for writing and uploading code.
• AVR Studio: Advanced users can also use the AVR Studio (or Atmel Studio) for developing more complex applications, debugging, and optimizing code for the ATmega328.
• PlatformIO: Another modern tool for developing embedded applications, which supports the ATmega328 and other microcontrollers.

Example Projects You Can Build with an ATmega328 Development Board Trainer Kit:

1. LED Blinking:

   • A classic beginner project that demonstrates basic output control by making an LED blink at regular intervals. This introduces concepts like timers and digital I/O.

2. Digital Temperature Sensor:

   • Interface a digital temperature sensor (e.g., LM35 or DHT11) with the ATmega328 and display the temperature on a LCD or 7-segment display.

3. PWM Motor Control:

   • Use PWM to control the speed of a DC motor. This project demonstrates the use of timers, PWM signals, and motor control.

4. Digital Stopwatch:

   • Create a digital stopwatch using seven-segment displays and the timer functions of the ATmega328. Buttons can be used to start, stop, and reset the timer.

5. Light-sensitive System:

   • Build a light-sensitive system using a photoresistor (LDR) to turn an LED on or off based on ambient light levels. This project demonstrates analog-to-digital conversion (ADC) and conditional control based on sensor readings.

6. Servo Motor Control:

   • Control a servo motor using PWM to move it to different angles. This is an essential project for learning about motion control and PWM generation.

7. LCD-based User Interface:

   • Build an LCD-based menu system to interface with the user. This could involve setting a parameter (e.g., temperature threshold) or adjusting the brightness of an LED.

8. Bluetooth-Controlled Light:

   • Interface the ATmega328 with a Bluetooth module (e.g., HC-05) to control an LED or relay wirelessly via a mobile app. This introduces serial communication and basic Bluetooth communication.

9. Home Automation System:

   • Build a home automation system to control lights, fans, or other appliances. The ATmega328 can interface with relays and can be controlled via buttons or remote communication (e.g., RF, Bluetooth).

10. Digital Lock System:

• Implement a digital lock system where a user can input a password via push buttons and unlock a device by entering the correct sequence.

Conclusion:

An ATmega328 Development Board Trainer Kit provides a great platform for learning about embedded systems, microcontroller programming, and interfacing with various sensors and actuators. With the simplicity and versatility of the ATmega328, it's suitable for beginners as well as more advanced users interested in building various embedded applications. The included peripherals and components allow for hands-on experimentation with real-world applications, from simple projects like LED blinking to more complex tasks like home automation and sensor interfacing. Whether you're a hobbyist, student, or professional, this kit offers the resources you need to master embedded system design.
