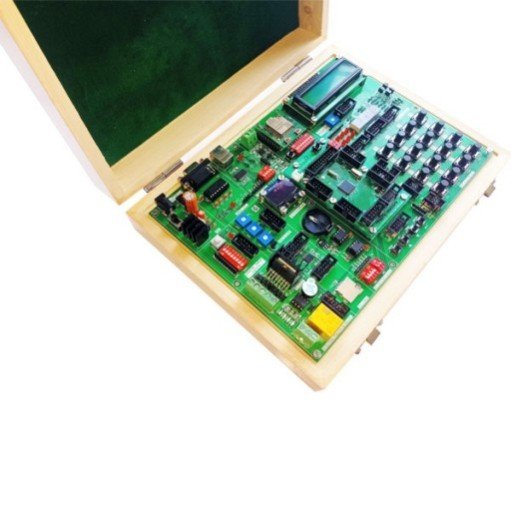

ARM Development Board LPC2148-Trainer Kit

LPC2148essential development features a plug and play design that makes it easy for connections and helps Students, hobbyists, enthusiasts, and professionals to focus more on Program / application development. LPC2148 Trainer Kit equipped with on board IO’s, communication interfaces & peripherals. It is really easy to design, experiment with, and test circuits

( No Reviews )

₹ 13,999 ^₹14,999

Order From Whatsapp

Seller Electro Boat

Tags ARM Development Board LPC2148-Trainer Kit

COD

Cancelable till processed

7 Days Returnable

Product Details :

Made In :

India

Features:

Plug & Play Interface Connectivity	On Board Power supply 3.3V, 5V 12V,GND.
Professional EMI/RFI Complaint PCB Layout Design	8 pin DIP switches.
Modular Block design makes Easy access & quick Prototyping	On board voltage level converter
FRC connectivity features minimize the connection Error.	Board enabled with the header for stacking the WiFi module.
High Quality Grade PCB with wooden Enclosure.	Board enabled with the header for stacking the Arduino shields.
Stackable daughter board LPC2148.	ON board Micro SD card
On board debugging JTAG Option	ON/OFF slide switch.
USB onboard programming	RDL bus.
8 interfacing LED’s.	External jumper nodes.
1 * 4 interfacing keys.	Reset button.
4* 4 interfacing keypad matrix.	Power plug-in DC Socket.
Two channel RS232 port for communication.	Power supply indicator LED.
3 ADC potentiometer input interface.	Test led for Tx, Rx.
16X2 LCD, OLED interface.	7Seg Multiplexed Display.
46 general purpose IO	FT232RL USB communication.

Note:

Optional OLED & SDCARD modules are provided on this board, Hobbyists/developers can make use of this module with their previous knowledge or open-source community support and we do not have the support for the optional module.

Scope of Learning Experiments:

LED blinking	Elevator Interface
8 bit LED Left shift, Right shift and counting operation	Buzzer, Relay interface
Keypad Interrupt Interface	RS485, RS232 serial communication
16*2 LCD interface	UART Operation
Matrix Keypad Interface	RTC DS1307 I2C protocol interface
ADC interface	AT24C04 EEPROM I2C protocol interface
Traffic Light Signal Interface	RF/WiFiCommunication
8 bit DIP switch interface	SPI protocol interface
7 Segment interface	Temperature Sensor Interface
L298 Driver for DC Motor and Stepper motor interface
