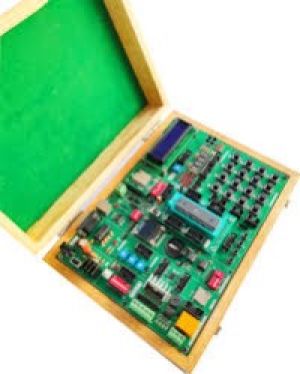

An 8051 Development Board Trainer Kit is an educational tool designed to help students and developers learn and experiment with the 8051 microcontroller. The 8051 is one of the most well-known and widely used microcontrollers in embedded systems, known for its robustness, simplicity, and versatility. The development board typically includes a range of peripherals, components, and interfaces to allow users to program and experiment with the 8051 microcontroller and develop various applications.

Key Features of an 8051 Development Board Trainer Kit:

1. 8051 Microcontroller:

• The central component of the kit is the 8051 microcontroller (often AT89C51 or compatible models). This microcontroller is an 8-bit processor with:
  • 4KB flash memory for program storage
  • 128 bytes of RAM
  • 4 I/O ports, each 8 bits wide, allowing interfacing with external devices.
  • Built-in timer/counters, serial communication (UART), and interrupt handling capabilities.

2. Programming Interface:

• ISP (In-System Programming): The kit typically comes with a programming interface (e.g., USB to UART or ISP programmer) for uploading code directly to the microcontroller without needing an external programmer.
• Burner Circuit: Some kits may include a built-in burner circuit for programming the 8051 microcontroller using a serial or parallel interface.

3. Peripherals:

• LEDs: Several LEDs (Light Emitting Diodes) are included to demonstrate basic output operations, often controlled through the microcontroller's I/O ports.
• Seven-Segment Display: The kit usually comes with 7-segment displays that can be used to display numbers, useful for learning about multiplexing and controlling displays.
• Push Buttons and Switches: Input devices like push buttons and toggle switches for basic interaction with the system.
• Buzzer: A buzzer can be used for providing audio feedback or alerts.
• LCD Display: Some kits include an LCD display (e.g., 16x2 LCD) for showing alphanumeric data or messages.

4. Communication Interfaces:

• Serial Communication (UART): The 8051 microcontroller has built-in UART, enabling it to communicate with other devices, such as PCs, sensors, or other microcontrollers.
• RS-232/TTL Interface: Some kits include an RS-232 or TTL to USB interface to connect the 8051 microcontroller to a computer for serial communication or programming.

5. External Memory:

• External EEPROM/Flash Memory: To extend the memory capacity of the 8051, kits may include external EEPROM or Flash memory, which can be used to store additional data.
• RAM: Some kits provide additional RAM chips for larger memory storage if required for more complex applications.

6. Power Supply:

• 5V Power Supply: The board generally operates on a 5V DC power supply. Some kits come with a regulated 5V power adapter or allow for USB-based power.
• Battery Connector: Some kits also have connectors for battery power if needed for portable applications.

7. Input/Output Interfaces:

• GPIO Pins: The microcontroller's General Purpose Input/Output (GPIO) pins are exposed on headers for connecting external devices like sensors, motors, and relays.
• Relay Interface: Some kits provide interfaces for controlling relays and higher-power devices, often used for switching applications.
• Analog-to-Digital Converter (ADC): Though the base 8051 does not have a built-in ADC, many trainer kits provide external ADC modules to convert analog signals to digital values for processing by the microcontroller.

8. Timers and Counters:

• Timers: The 8051 has built-in 16-bit timers that can be used for generating time delays, measuring intervals, or generating PWM signals. These timers are typically exposed on the trainer kit.
• Pulse Width Modulation (PWM): Many kits allow the 8051 to generate PWM signals, which are useful for controlling motors, LEDs, or audio signals.

9. Learning and Experimentation Features:

• Experimentation Areas: The kit usually has designated areas where users can easily connect external components (e.g., sensors, LEDs, motors) using jumper wires.
• Example Projects and Programs: The kit may come with pre-written sample programs for simple tasks like blinking LEDs, generating PWM signals, or reading switches.
• Documentation: A variety of tutorials, datasheets, and example code are often included to help users get started with programming and interfacing the 8051 microcontroller.

10. Software Tools:

• Keil uVision IDE: The Keil uVision development environment is one of the most common tools used for programming the 8051 microcontroller. It includes an editor, compiler, and debugger to write, compile, and test code.
• Programming Languages: Users can program the 8051 microcontroller using Assembly language, C, or even Embedded C. Kits may include pre-configured libraries for these languages.

Example Projects You Can Build with an 8051 Development Board Trainer Kit:

1. LED Blinking:

   • A basic beginner project where the microcontroller controls the blinking of an LED. This teaches the basics of I/O, timing, and delay functions.

2. Temperature Monitoring System:

   • Interface a temperature sensor (e.g., LM35) to the 8051 and display the temperature on the LCD or 7-segment display.

3. Traffic Light Control:

   • Implement a simple traffic light control system using LEDs. This project teaches sequential logic, timers, and basic I/O control.

4. Digital Stopwatch:

   • Build a digital stopwatch using 7-segment displays and the timer feature of the 8051. Use push buttons to start, stop, and reset the timer.

5. PWM Motor Control:

   • Use PWM to control the speed of a DC motor using the 8051 microcontroller. This project introduces the concept of motor control and the use of timers to generate PWM signals.

6. Digital Clock:

   • Create a simple digital clock using a 7-segment display or LCD, utilizing the RTC (Real-Time Clock) and timer features of the 8051.

7. Keypad Interface:

   • Interface a 4x4 matrix keypad with the 8051 to allow the user to input numbers or control other devices (e.g., turning on/off an LED or controlling the speed of a motor).

8. Serial Communication:

   • Implement serial communication between the 8051 and a PC to send and receive data. This can be used for applications such as sending sensor data or controlling devices remotely.

9. Home Automation:

   • Use the 8051 to control household appliances (e.g., lights, fans) through relays. This can be interfaced with push buttons or even RF modules for wireless control.

10. Security System:

• Design a security system using motion sensors and buzzers. The system can trigger a sound or light alert if motion is detected, useful for understanding sensor interfacing.

Conclusion:

An 8051 Development Board Trainer Kit is a powerful educational tool that helps students and engineers learn about microcontroller programming, embedded systems design, and hardware interfacing. By offering an array of components like LEDs, switches, LCD displays, and sensors, it provides a hands-on learning experience that is essential for building real-world embedded systems. Whether you're a beginner looking to understand basic electronics or an advanced user developing more complex applications, the 8051 trainer kit is an excellent platform to start developing your embedded systems skills.
