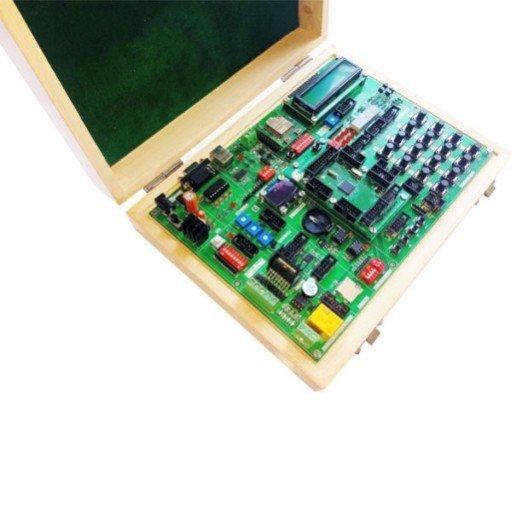

ARM Development Board LPC2129-Trainer Kit

LPC2129 essential development features a plug and play design that makes it easy for connections and helps Students, hobbyists, enthusiasts, and professionals to focus more on Program/application development. LPC2129 Development Trainer Kit equipped with on board IO’s, communication interfaces & peripherals. It is really easy to design, experiment with, and test circuits without soldering. It’s used in many educational institutions and R&D LAB across the world.

( No Reviews )

₹ 13,999 ^₹14,999

Order From Whatsapp

Seller Electro Boat

Tags ARM Development Board LPC2129-Trainer Kit

COD

Cancelable till processed

7 Days Returnable

Product Details :

Made In :

India

Features:

Plug & Play Interface Connectivity	On Board Power supply 3.3V, 5V 12V, GND.
Professional EMI/RFI Complaint PCB Layout Design	8-pin DIP switches.
Modular Block design makes Easy access & quick Prototyping	Onboard voltage level converter
FRC connectivity features minimize the connection Error.	Board enabled with the header for stacking the WiFi module.
High Quality Grade PCB with wooden Enclosure.	Board enabled with the header for stacking the Arduino shields.
Stackable daughter board LPC2129 in-built CAN Module.	ON board Micro SD card
On board debugging JTAG Option	ON/OFF slide switch.
Controller Area Network (CAN) transceiver	RDL bus.
USB onboard programming	External jumper nodes.
8 interfacing LED’s.	Reset button.
1 * 4 interfacing keys.	Power plug-in DC Socket.
4* 4 interfacing keypad matrix.	Power supply indicator LED.
Two channel RS232 port for communication.	Test led for Tx, Rx.
3 ADC potentiometer input interface.	46 General purpose IO
16X2 LCD, OLED interface.	FT232RL USB communication.
7Seg Multiplexed Display.

Note:

Optional OLED & SDCARD modules are provided on this board, Hobbyists/developers can make use of this module with their previous knowledge or open-source community support and we do not have the support for the optional module.

Scope of Learning Experiments:

LED blinking	Buzzer, Relay interface
8-bit LED Left shift, Right shift, and counting operation	RS485, RS232 serial communication
Keypad Interrupt Interface	UART Operation
16*2 LCD interface	PWM Interface
Matrix Keypad Interface	RTC DS1307I2C protocol interface
ADC interface	AT24C04 EEPROM I2C protocol interface
Traffic Light Signal Interface	RF/Wi-Fi Communication
8-bit DIP switch interface	SPI protocol interface
7 Segment interface	Temperature Sensor Interface
L298 Driver for DC Motor and Stepper motor interface	Automatic Number Plate Recognition
Elevator Interface
