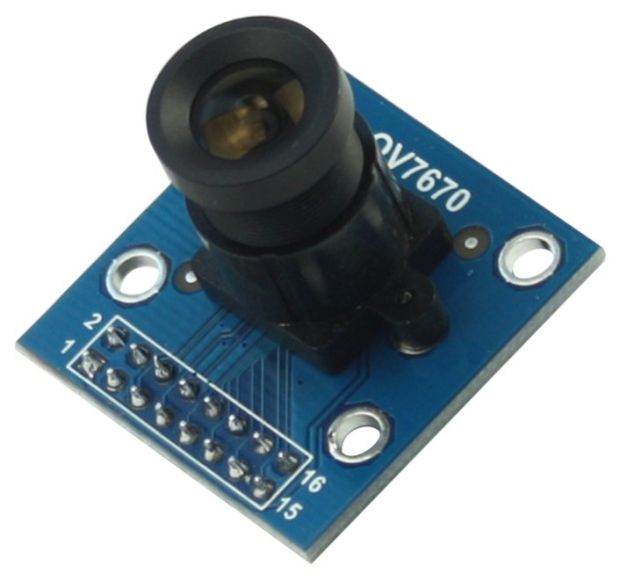

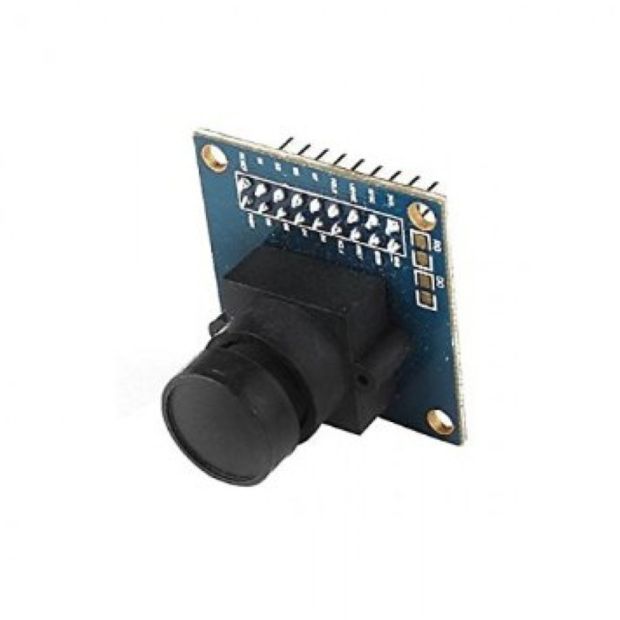

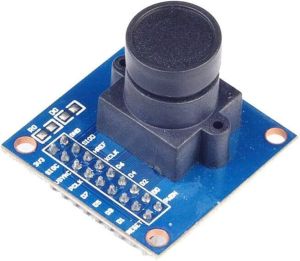

The OV7670 is a popular CMOS (Complementary Metal-Oxide-Semiconductor) image sensor developed by OmniVision Technologies. It is used for capturing video and still images and is commonly used in various applications such as digital cameras, security cameras, and robotics. Here’s an overview of the OV7670 module:

Key Features:

1. Image Sensor:

   • Resolution: The OV7670 provides a resolution of 640x480 pixels (VGA) for capturing images.
   • Image Quality: Capable of delivering decent image quality suitable for many low-resolution imaging applications.

2. Interface:

   • Parallel Output: The OV7670 communicates with microcontrollers via a parallel data interface. This includes several data lines, control signals, and clock signals.
   • I2C Interface: Used for configuring the camera settings through a serial interface.

3. Specifications:

   • Frame Rate: Supports frame rates up to 30 frames per second (fps) at VGA resolution.
   • Power Supply: Typically operates on 3.3V for both I/O and analog power supply.
   • Lens: Requires an external lens to focus on the scene; the module itself does not include a lens.

4. Operating Modes:

   • RGB Output: Outputs images in RGB565 format (16-bit color), which is commonly used in low-resolution image processing.
   • YUV Output: Can also output images in YUV422 format.

5. Features:

   • Automatic Gain Control (AGC): Adjusts the sensitivity of the sensor based on the light conditions.
   • Automatic White Balance (AWB): Adjusts colors to ensure white balance under different lighting conditions.
   • Automatic Exposure Control (AEC): Adjusts exposure settings for optimal image capture.

Applications:

1. Digital Cameras: Used in low-cost digital cameras for capturing images and videos.
2. Security Cameras: Integrated into security systems for monitoring and recording visual data.
3. Robotics: Employed in robotics for visual recognition and processing tasks.
4. Embedded Systems: Used in embedded systems where image capture and processing are required.

Connecting OV7670 to Arduino:

Connecting the OV7670 to an Arduino can be complex due to the parallel data interface. The OV7670 has multiple data lines, control lines, and clock signals that need to be connected properly. Here’s a basic guide:

Wiring Instructions:

1. OV7670 to Arduino:
   • VCC (OV7670) to 3.3V (Arduino) (ensure the Arduino or external power supply provides 3.3V).
   • GND (OV7670) to GND (Arduino).
   • SDA (OV7670) to A4 (Arduino) (I2C data line).
   • SCL (OV7670) to A5 (Arduino) (I2C clock line).
   • D0-D7 (OV7670) to digital pins on Arduino (e.g., D2-D9).
   • VSYNC, HREF, PCLK (OV7670) to additional digital pins on Arduino (e.g., D10, D11, D12).
   • RESET (OV7670) to an Arduino digital pin (e.g., D13).
