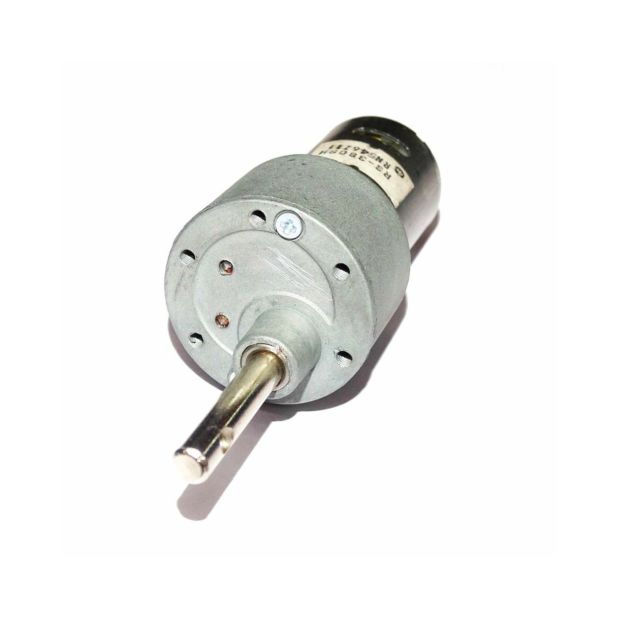

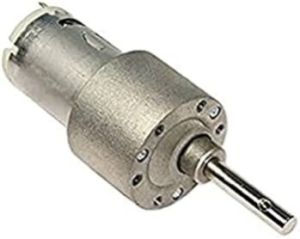

A 12V DC Johnson Side Shaft Gear, Geared Motor 10 RPM - B Grade is a type of DC geared motor used in various mechanical and robotic applications. It features a 12V DC input, a side shaft configuration, and a 10 RPM rotational speed. The B grade typically refers to a motor that is in good working condition but may have cosmetic imperfections or slight performance variations compared to an "A grade" motor.

Key Features and Details:

1. Voltage Rating: 12V DC:

   • The motor operates on a 12V DC power supply, which is common for many small DC motors. It is usually powered by a 12V battery or a regulated 12V power adapter.

2. Geared Motor:

   • This motor has an internal gear reduction mechanism that slows down the motor's speed while increasing its torque. This is achieved by using gears that reduce the output speed, which allows for more control and more force to drive mechanical components.
   • Geared motors are often used when a low-speed, high-torque output is needed for mechanical systems.

3. 10 RPM Speed:

   • The motor runs at a 10 RPM (revolutions per minute). This is a relatively slow speed, suitable for applications that need precise, controlled movement. Lower RPM motors are useful in applications where high torque is more important than speed, or where slow and steady movement is necessary.

4. Side Shaft:

   • The motor features a side shaft, which means the rotating shaft is offset or located to the side of the motor housing. This configuration is often used in cases where the motor needs to be positioned differently in relation to the driving component.
   • The shaft is used to connect the motor to other components such as gears, wheels, or pulleys.

5. B Grade:

   • The "B Grade" label typically indicates that the motor may not be in brand-new condition but is still fully functional. It might have cosmetic imperfections, such as scratches or marks on the body, or may have slight performance differences compared to an A-grade motor. These motors are often sold at a discount as a result.

6. Applications:

   • Robotics: Used in robots for precise movements, such as in robotic arms or walking mechanisms.
   • Model Vehicles: Ideal for small model cars, trucks, or other vehicles where low speed is needed for controlled movement.
   • Automation: Can be used in automated systems that require slow and steady movement, such as in small conveyor belts or positioning devices.
   • Toys: Commonly used in mechanical toys or automated toy systems that require slow rotation.
   • DIY Projects: Often used in hobbyist projects, where low-speed motors are required to move parts or drive mechanisms at a reduced pace.

7. Torque:

   • Geared motors, especially those running at slower speeds like 10 RPM, typically generate higher torque than non-geared motors running at higher speeds. This makes them suitable for driving heavier loads, such as gears, pulleys, or wheels in various mechanical systems.

8. Mounting and Shaft Size:

   • The motor is likely designed with a side shaft that allows for easy attachment to mechanical components or gears.
   • Shaft dimensions can vary, but you can typically find motors with standard shaft diameters (like 4mm or 6mm), which are compatible with common gears or coupling systems.

9. Current Consumption:

   • The motor's current draw depends on the load and the operating conditions. At no load, a typical 12V DC geared motor may draw around 100mA to 200mA. Under load, it will draw more current depending on the torque required.

Example Circuit/How to Use:

1. Wiring the Motor:
   • Positive Terminal of your 12V DC power supply connects to the positive terminal of the motor.
   • Negative Terminal of the power supply connects to the negative terminal of the motor.
2. Speed Control:
   • If you need to control the speed or turn the motor on and off, you could use a switch or a PWM (Pulse Width Modulation) controller.
3. Mounting the Motor:
   • The side shaft allows the motor to be mounted with its shaft aligned to other mechanical components, such as a gear system or a driving wheel.

Considerations for Use:

• Load and Speed: Since the motor is geared to run at 10 RPM, it can drive mechanical systems that require low-speed and high-torque movement. However, be mindful of the motor’s current consumption and ensure it is not overloaded, which could lead to overheating or damaging the motor.
• Power Supply: Ensure that your 12V DC power supply can provide enough current to the motor based on the load it will be driving.
• Noise: Geared motors tend to make more noise than un-geared motors due to the gear meshing, so ensure the motor is used in a setting where this noise is acceptable.

Conclusion:

The 12V DC Johnson Side Shaft Gear Motor 10 RPM - B Grade is an excellent choice for applications that require low-speed, high-torque performance. Whether you're working on robotics, small machinery, DIY projects, or models, this motor provides a controlled, steady rotation ideal for driving heavier loads at slow speeds. The "B Grade" designation indicates it's a more affordable option while still being fully functional, making it a great choice for cost-sensitive applications.
