The MT3608 is a DC-DC boost converter that can step up a low input voltage (such as 2.24V) to a higher output voltage (ranging from 5V to 28V). This chip is commonly used in applications where a stable and adjustable high voltage is needed from a low-voltage power source. Here’s a detailed overview of the MT3608 boost converter:

Key Features of the MT3608:

1. Input Voltage Range:

   • The MT3608 can accept input voltages from 2V to 24V, but it is commonly used with inputs around 2.24V to 5V.
   • The minimum input voltage for proper operation is 2V, which makes it suitable for battery-powered applications, including low-voltage battery sources like Lithium-ion batteries.

2. Output Voltage Range:

   • The output voltage can be adjusted from 5V to 28V, depending on the application and the external components (such as resistors used for voltage feedback).
   • The output voltage is regulated by adjusting the feedback resistance to set a desired output level.

3. Output Current:

   • The MT3608 is capable of delivering up to 2A of output current, though the actual maximum current depends on the input voltage and the output voltage.
   • At higher output voltages, the output current will typically be lower, as the power is conserved (Power = Voltage × Current).

4. Efficiency:

   • The MT3608 is known for its high efficiency, often achieving up to 93% efficiency depending on the input and output voltages.
   • This is critical for battery-powered devices to maximize the battery life by minimizing power losses.

5. Switching Frequency:

   • The internal switching frequency is typically around 1.2 MHz, which allows for smaller external components (such as inductors and capacitors) and provides a compact design.

6. Overcurrent and Overvoltage Protection:

   • It has built-in protection features, such as overcurrent protection, to prevent damage to the device or the load under excessive current conditions.
   • It also has thermal shutdown to protect against overheating.

7. Adjustable Output Voltage:

   • The output voltage can be adjusted using a potentiometer or by selecting appropriate resistor values for the feedback network, which sets the output voltage.

8. Compact Size:

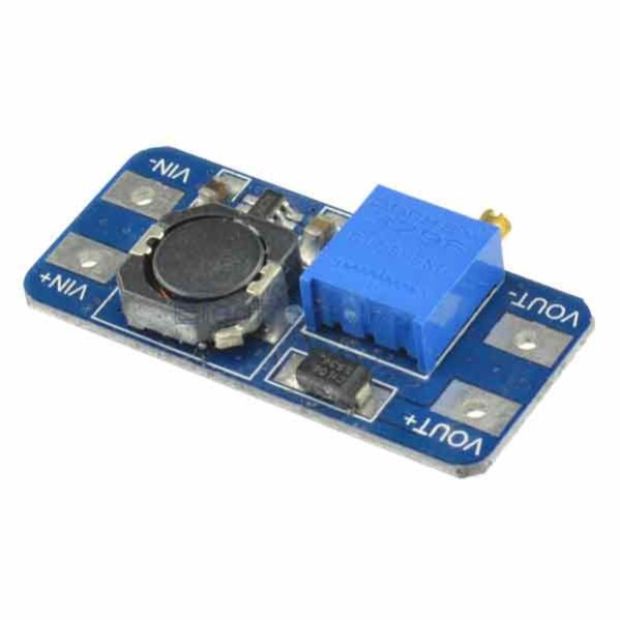

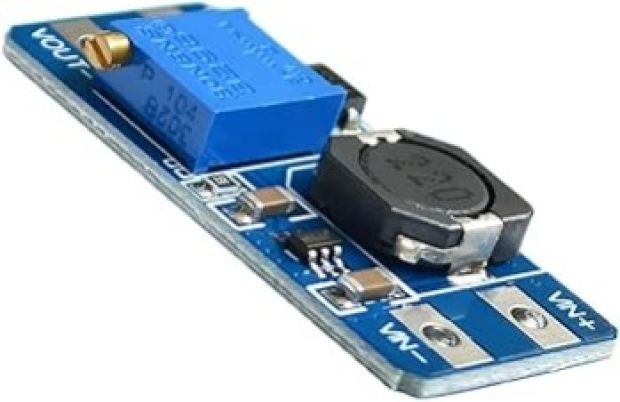

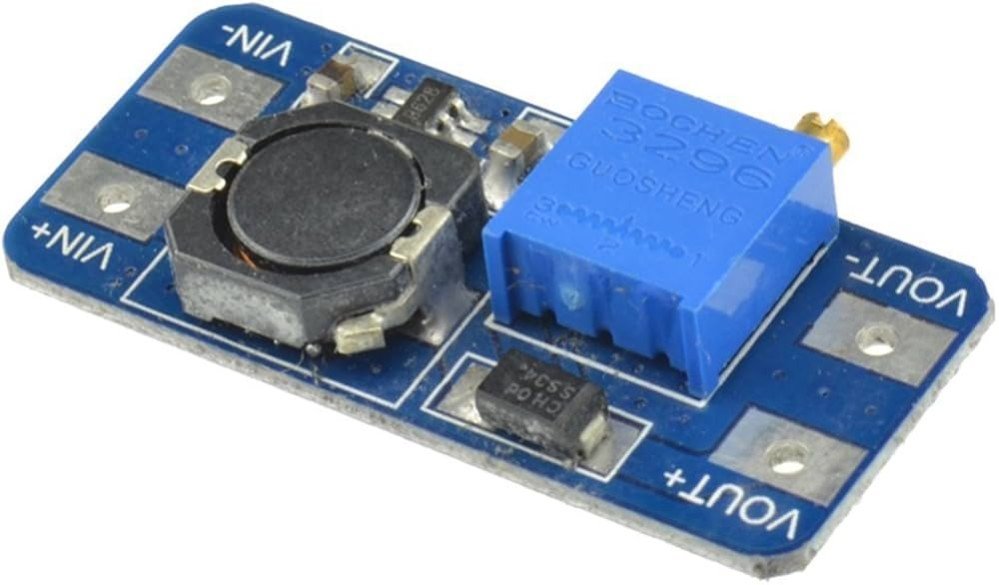

   • The MT3608 module is small and easy to integrate into a variety of circuits and projects. It is often available in a compact module form that includes the chip, necessary components like inductors, capacitors, and resistors for easy use.

Typical Applications:

1. Battery-Powered Projects:

   • The MT3608 is ideal for applications that need to boost a lower voltage (such as from 2.24V or 3.7V lithium batteries) to a stable higher voltage, like 5V, 12V, or 24V.

2. Portable Power Supplies:

   • It is used in creating small, efficient portable power supplies for devices like small electronics, USB chargers, and handheld gadgets.

3. Solar-Powered Systems:

   • When paired with solar panels that output low voltage, the MT3608 can step up the voltage to a level suitable for charging batteries or powering electronic devices.

4. LED Drivers:

   • The MT3608 can be used to drive LEDs, especially high-power LEDs that require a higher voltage than the available power source.

5. Arduino Projects:

   • In Arduino-based projects, you can use the MT3608 to step up the voltage to the necessary level to power sensors, displays, and other modules that require a higher input voltage.

Example Wiring and Application (Step-Up from 2.24V to 5V):

1. Input Power Source: You can connect a low-voltage source, like a Lithium-ion battery (3.7V) or a low-voltage DC source (2.24V).
2. MT3608 Module: Connect the input terminals of the MT3608 to the power source.
3. Adjust Output Voltage: Use the onboard potentiometer (or external resistors) to adjust the output voltage to the desired value, for example, 5V.
4. Output Load: Connect the load that needs the higher voltage (such as a device that requires 5V or more).

Schematic:

         +---------------------+
Input:  |  2.24V - 24V (DC)   |
         +----------|----------+
                    |
                    |
               +----v----+
               | MT3608  |
               | Boost   |
               | Converter|
               +----|----+
                    |
                Output: 5V - 28V (Adjustable)

Important Notes:

• Inductor: The MT3608 typically requires an external inductor. For best performance, an inductor with 47 µH or 68 µH is commonly used in most modules, though the exact value may vary depending on the application.
• Capacitors: Input and output capacitors (typically 10 µF to 22 µF) are recommended to ensure stable voltage regulation and minimize noise.
• Efficiency Considerations: The efficiency of the MT3608 varies with the input and output voltage difference. It performs best when there is a moderate difference between input and output voltages.

Conclusion:

The MT3608 2A boost converter is an excellent solution for efficiently stepping up a voltage from 2.24V to a higher voltage range, like 5V to 28V, in various applications. Its high efficiency, compact size, and built-in protection features make it a popular choice in portable, battery-powered, and solar-powered electronics projects, as well as LED drivers and Arduino-based systems.
