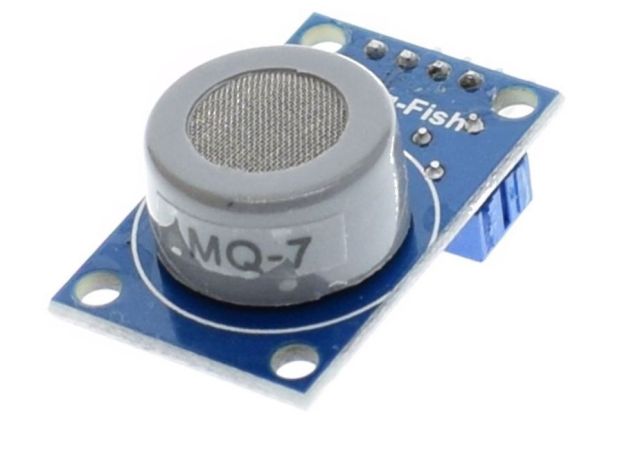

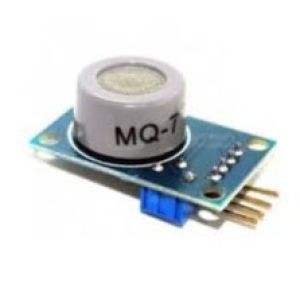

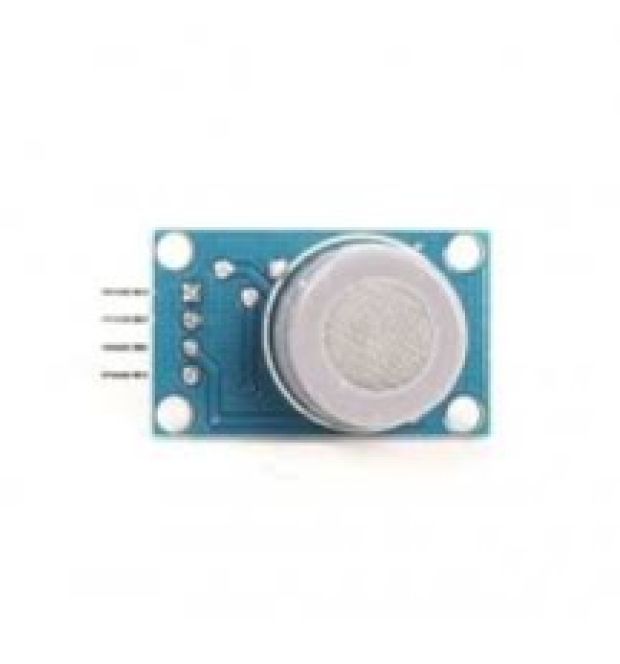

The MQ7 gas sensor module is designed for detecting carbon monoxide (CO) and is widely used in applications such as air quality monitoring, gas leak detection, and safety systems. Here’s a detailed overview of the MQ7 gas sensor module:

MQ7 Gas Sensor Module Overview:

1. Key Features:

• Primary Gas Detection:

  • Carbon Monoxide (CO): The MQ7 sensor is specifically designed to detect carbon monoxide gas, making it suitable for applications where monitoring CO levels is crucial.

• Heating Element:

  • The sensor includes a heating element that maintains the sensor’s temperature to ensure accurate and reliable detection.

• Analog Output:

  • Provides an analog voltage output that changes in response to the concentration of CO. This output is used to determine gas levels.

• Digital Output (Optional):

  • Some MQ7 modules include a digital output that activates when CO concentration exceeds a predefined threshold, which is useful for triggering alarms or control systems.

2. Working Principle:

• Gas Detection:

  • The MQ7 sensor uses a metal oxide semiconductor (MOS) material that changes its electrical resistance in the presence of carbon monoxide. The change in resistance alters the analog output voltage.

• Heating Process:

  • The built-in heating element heats the sensing material to a stable temperature, which is critical for consistent and accurate readings.

• Output Signal:

  • The analog output voltage is proportional to the concentration of CO. This signal can be read by a microcontroller or ADC to calculate gas concentration.

3. Circuit Connections:

• Power Supply:

  • VCC: Connect to a 5V power source.
  • GND: Connect to ground.

• Analog Output:

  • A0: Connect the analog output pin to an analog input pin on a microcontroller or ADC to measure the concentration of CO.

• Digital Output (if available):

  • D0: Connect to a digital input pin on the microcontroller. This output is used to trigger an alarm or other actions when CO levels exceed a set threshold.

• Heater Control:

  • Some modules may have additional pins for heater control. Refer to the datasheet for specific wiring instructions.

4. Applications:

• Carbon Monoxide Detection:

  • Used in systems to monitor CO levels and provide warnings or shutdowns to prevent CO poisoning, which is especially important in homes and industrial settings.

• Air Quality Monitoring:

  • Applied in air quality monitoring systems to measure CO concentration and ensure safe air quality levels.

• Safety Systems:

  • Employed in safety systems that detect and respond to elevated CO levels, such as alarms or automatic ventilation controls.

5. Calibration:

• Initial Calibration:

  • Expose the sensor to clean air to establish a baseline for zero CO concentration.

• Gas Concentration Calibration:

  • To accurately measure CO concentrations, calibrate the sensor using known concentrations of CO. This involves creating a calibration curve to translate the sensor’s analog output into gas concentration values.

6. Advantages:

• Specialized Detection:

  • Specifically designed for carbon monoxide detection, making it ideal for CO monitoring applications.

• Cost-Effective:

  • Provides an affordable solution for detecting carbon monoxide and ensuring safety.

• Ease of Integration:

  • Simple to integrate with microcontrollers and development boards due to its analog and optional digital outputs.

7. Limitations:

• Sensitivity to Interference:

  • The sensor may be affected by other gases or environmental conditions, which can impact accuracy. Proper calibration is essential for reliable results.

• Warm-Up Time:

  • Requires a warm-up period to stabilize and provide accurate readings.

• Limited Lifespan:

  • The sensing material can degrade over time, which may affect the sensor’s performance and accuracy.

8. Example Use Case:

Home Carbon Monoxide Detector:

• In a home carbon monoxide detection system, the MQ7 sensor is used to monitor CO levels in the air. If the CO concentration exceeds a predefined threshold, the system can activate an alarm or take other safety actions to alert occupants and prevent CO poisoning.

Summary:

The MQ7 gas sensor module is a specialized and cost-effective tool for detecting carbon monoxide. Its sensitivity to CO and ease of integration make it suitable for applications in safety systems, air quality monitoring, and carbon monoxide detection. Proper calibration and understanding of the sensor’s limitations are crucial for accurate and reliable performance. For detailed specifications and connection instructions, refer to the datasheet specific to the MQ7 module.
