The MFRC522 is a popular RFID (Radio Frequency Identification) reader/writer IC designed for reading and writing RFID tags, especially in the 13.56 MHz frequency range. It is commonly used in various applications, including access control, inventory management, and personal identification systems.

MFRC522 RFID Reader/Writer Module Overview:

1. Basic Components:

• MFRC522 IC:

  • The core of the module is the MFRC522 integrated circuit, which handles the communication between the RFID reader and the RFID tags. It is capable of reading and writing data to RFID tags operating at 13.56 MHz.

• Antenna:

  • An integrated or external antenna is used to generate the RF field required for communication with RFID tags. The antenna also helps in receiving signals from the tags.

• Connection Pins:

  • The module typically includes various pins for interfacing with a microcontroller or other devices. Common pins include power supply (VCC), ground (GND), and communication pins (SDA, SCK, MOSI, MISO).

• Indicator LEDs (Optional):

  • Some modules include LEDs to indicate power status or RFID tag detection.

2. Key Features:

• Frequency:

  • Operates at 13.56 MHz, which is a standard frequency for many RFID systems, including MIFARE Classic, MIFARE Ultralight, and NTAG series tags.

• Communication Protocol:

  • Uses the SPI (Serial Peripheral Interface) protocol for communication with a microcontroller or other host devices. Some modules may also support I²C communication.

• Range:

  • The effective range of the RFID system depends on the size and type of the antenna and the RFID tags used. Typically, the range is a few centimeters to a meter.

• Power Supply:

  • Operates at a voltage typically between 3.3V and 5V, depending on the specific module design.

3. RFID Tags:

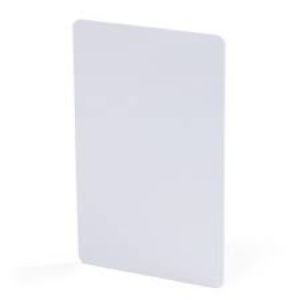

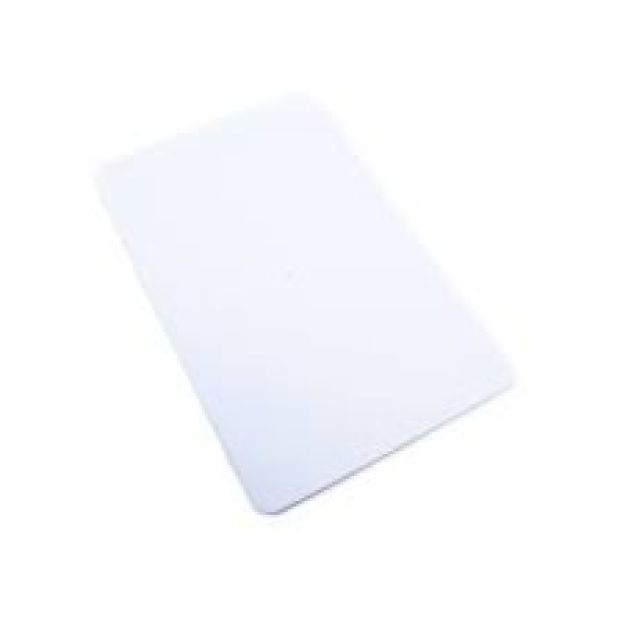

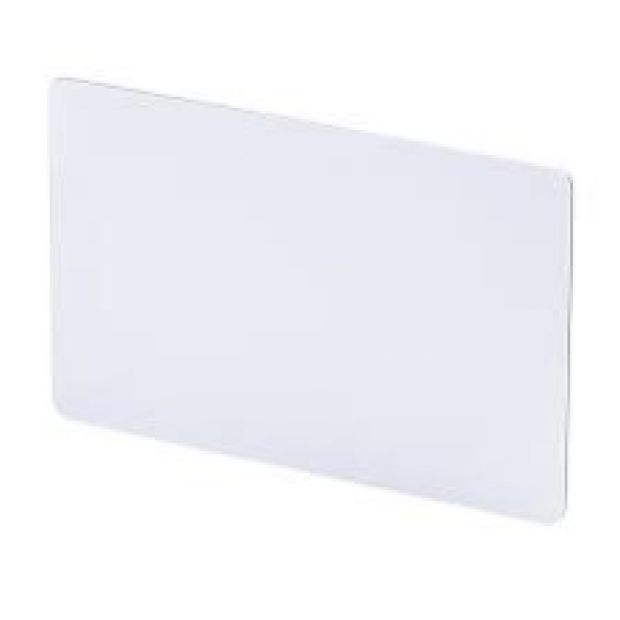

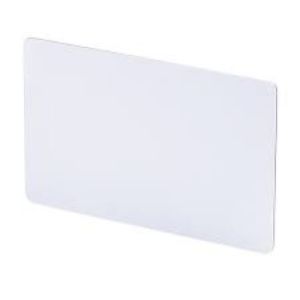

• White Tags:

  • The term "white tag" often refers to RFID tags that are blank or have minimal markings, making them versatile for various applications. They can be used for different purposes, such as access cards, key fobs, or product tags.

• Tag Types:

  • Passive Tags: These tags do not have their own power source and rely on the RF field generated by the reader for power.
  • Active Tags: These tags have an internal battery and can transmit data actively.

4. Working Principle:

• Initialization:

  • The MFRC522 initializes the communication with the RFID tag by generating an RF field via its antenna. The tag is powered by this field and responds with its unique identifier and any stored data.

• Data Exchange:

  • The reader/writer IC sends and receives data using the SPI protocol. It communicates with the microcontroller to read or write data to the RFID tag.

• Communication Process:

  • The RFID tag's data is transmitted back to the MFRC522 IC, which processes the information and sends it to the connected microcontroller or host device.

5. Applications:

• Access Control:

  • Used in systems to grant or deny access based on RFID tag identification.

• Inventory Management:

  • Helps in tracking and managing inventory by tagging and scanning items.

• Payment Systems:

  • Used in contactless payment systems and transit fare collection.

• Identification Systems:

  • Applied in personal identification and authentication systems, such as employee badges or membership cards.

6. Circuit Connections:

• Power Supply:

  • Connect the VCC pin to a 3.3V or 5V power source and the GND pin to ground.

• SPI Communication:

  • Connect the SPI pins (SDA, SCK, MOSI, MISO) to the corresponding pins on the microcontroller. The specific pin names may vary depending on the microcontroller and module.

• Reset and Interrupt Pins:

  • Some modules have additional pins for reset and interrupt functions, which may be connected to the microcontroller for enhanced control.

7. Advantages:

• Versatility:

  • Suitable for various RFID applications, thanks to its support for different RFID tags and communication protocols.

• Ease of Use:

  • Widely supported with libraries and examples for popular microcontrollers, making it accessible for prototyping and development.

• Cost-Effective:

  • Provides a low-cost solution for RFID-based projects and systems.

8. Limitations:

• Range:

  • The effective range may be limited, especially with passive RFID tags, and depends on the antenna and tag design.

• Interference:

  • Performance can be affected by electromagnetic interference from other devices or metal objects.

In summary, the MFRC522 RFID reader/writer module is a versatile and cost-effective tool for working with RFID systems. It provides an easy way to integrate RFID technology into various applications, from simple access control to more complex inventory management systems.
