A magnetic sensor module is designed to detect and measure magnetic fields. These sensors are widely used in various applications, including navigation, positioning, and detecting the presence or movement of magnetic objects. There are several types of magnetic sensor modules, each suited for different applications. Here’s an overview of the common types and their uses:

Types of Magnetic Sensor Modules

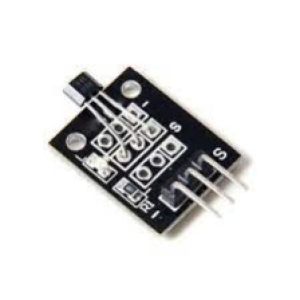

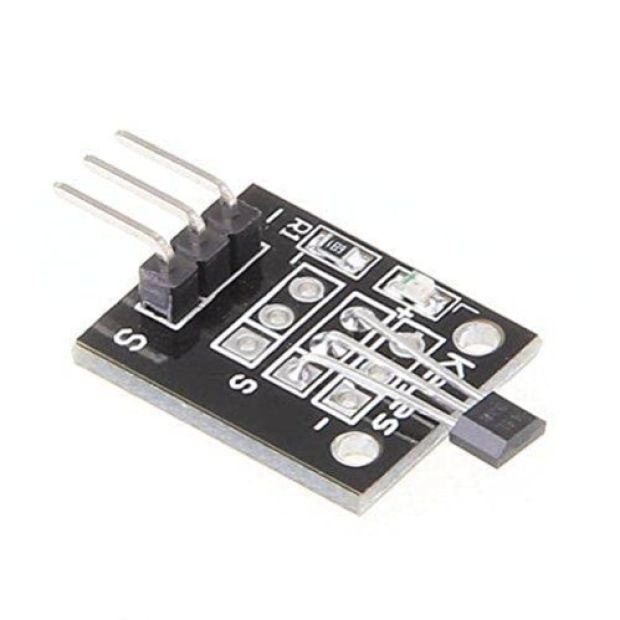

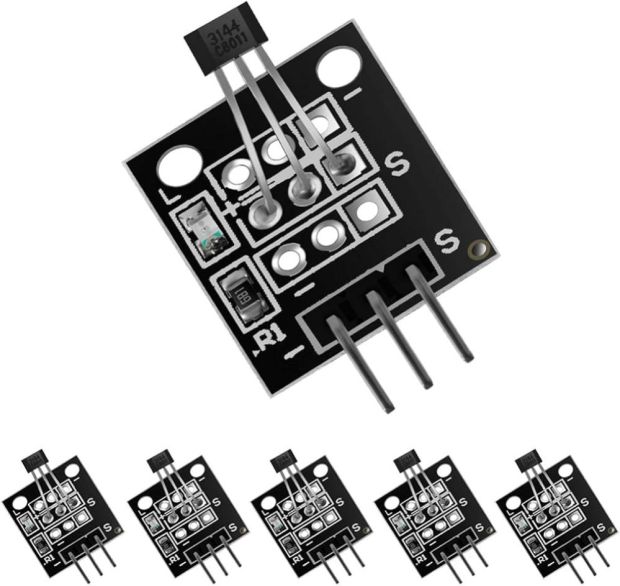

1. Hall Effect Sensors

   • Function: Detects the presence and strength of a magnetic field. It works based on the Hall effect, where a voltage is generated perpendicular to the direction of current flow in a conductor subjected to a magnetic field.
   • Applications: Magnetic field detection, speed and position sensing, current sensing in power electronics.

2. Magnetoresistive Sensors

   • Function: Measures changes in electrical resistance in response to a magnetic field. The resistance changes as the magnetic field varies.
   • Applications: Compasses, proximity sensors, and angle measurement.

3. Giant Magnetoresistance (GMR) Sensors

   • Function: A type of magnetoresistive sensor with higher sensitivity, used in applications requiring precise magnetic field measurements.
   • Applications: Hard drive read heads, automotive sensors.

4. Fluxgate Sensors

   • Function: Measures the strength and direction of a magnetic field using a core material that saturates at different magnetic field strengths.
   • Applications: High-precision magnetometers, space and geological studies.

5. Search Coil Sensors

   • Function: Measures the rate of change of a magnetic field, usually by detecting induced voltage in a coil.
   • Applications: Used in scientific research to measure varying magnetic fields.

Common Magnetic Sensor Modules

1. HMC5883L (3-Axis Magnetometer)

   • Description: A 3-axis digital magnetometer used for magnetic field measurement and compass applications.
   • Interface: I2C (Inter-Integrated Circuit).
   • Applications: Compasses, orientation sensing, and navigation systems.

2. GY-273 (HMC5883L Module)

   • Description: A breakout board for the HMC5883L sensor, often used with Arduino and other microcontrollers.
   • Interface: I2C.
   • Applications: Similar to the HMC5883L, used in magnetic field and compass applications.

3. AS5600 (Magnetic Rotary Encoder)

   • Description: Measures the angular position of a magnetic field, often used for precise rotational angle measurements.
   • Interface: I2C and PWM (Pulse Width Modulation).
   • Applications: Robotics, gimbal systems, and motor control.

Applications

1. Navigation Systems: Magnetic sensors are used in compasses and GPS systems to determine orientation and direction.
2. Industrial Automation: Used for position sensing, speed detection, and control in machinery.
3. Consumer Electronics: Found in smartphones and tablets for orientation and compass functionality.
4. Automotive: Used for detecting wheel speed, position, and other parameters.
5. Robotics: Employed for precise control of robotic arms and mobile robots.

Basic Operation

1. Magnetic Field Interaction: The sensor module interacts with the magnetic field, producing an electrical signal proportional to the field's strength or direction.
2. Signal Processing: The sensor's output is often conditioned or processed to make it suitable for interpretation by a microcontroller or other electronics.
3. Readout and Calibration: Data is read from the sensor and, if necessary, calibrated to account for environmental factors and ensure accuracy.
