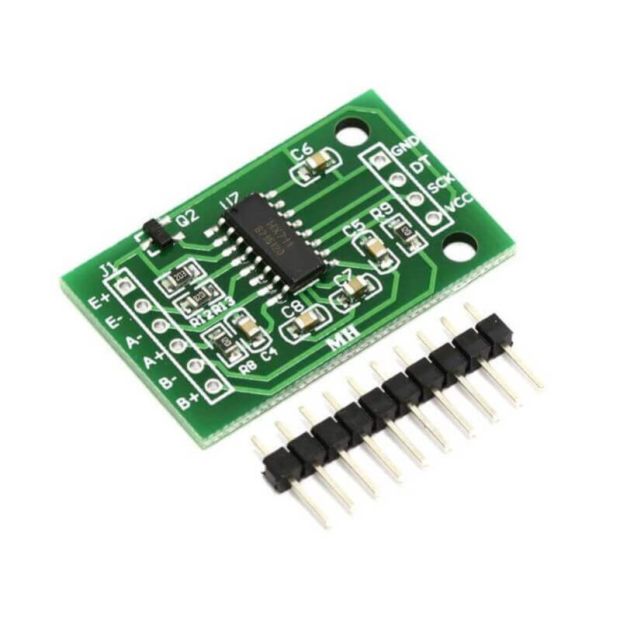

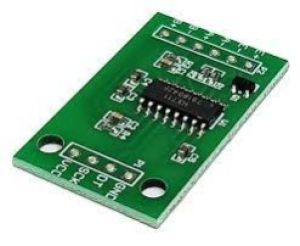

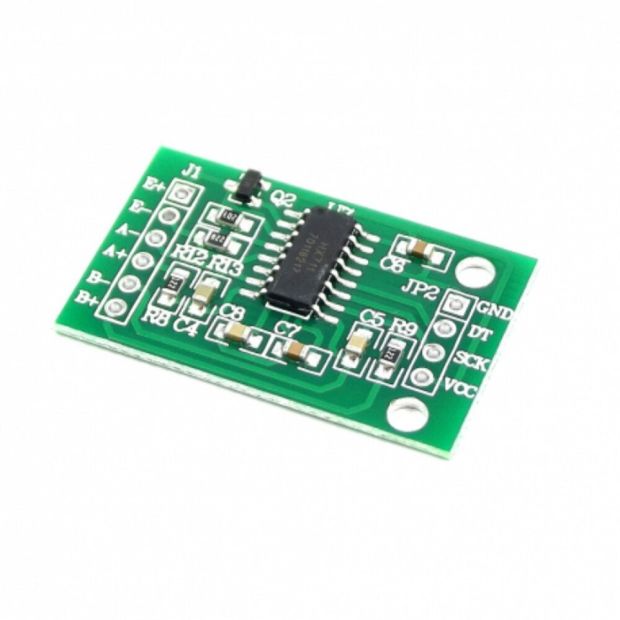

The HX711 module is a popular and widely used analog-to-digital converter (ADC) designed specifically for weighing scales and load cell applications. It converts the tiny analog signals from a load cell into a digital signal that can be processed by a microcontroller or other digital systems.

Key Features:

1. High Precision:

   • The HX711 is known for its high precision, providing 24-bit resolution, which is crucial for accurate weight measurement.

2. Dual-Channel Input:

   • The module supports two differential input channels, allowing it to interface with multiple load cells or strain gauges. However, it's often used with a single load cell.

3. Programmable Gain:

   • The HX711 allows you to set different gain levels for the amplifier (32, 64, or 128), which helps in optimizing the measurement range and accuracy.

4. Low Noise:

   • It features low noise operation, which is important for accurate readings in load cell applications.

5. Simple Interface:

   • The module communicates with a microcontroller via a serial interface (two pins: Data and Clock), making it relatively easy to integrate into projects.

Pin Configuration:

1. VCC: Power supply pin (usually 2.7V to 5.5V).
2. GND: Ground pin.
3. DT (Data): Serial data output pin, which sends the digital data to the microcontroller.
4. SCK (Clock): Serial clock input pin, used to clock the data from the HX711 to the microcontroller.
5. VREF: Reference voltage pin for setting the gain and calibrating the output. Often connected to VCC or an external reference voltage.

Connecting HX711 to a Load Cell:

1. Wiring the Load Cell:

   • Excitation (E+): Connect to the HX711’s E+ pin.
   • Excitation (E-): Connect to the HX711’s E- pin.
   • Signal (+): Connect to the HX711’s A+ pin.
   • Signal (-): Connect to the HX711’s A- pin.

2. Power Supply:

   • Connect the HX711’s VCC and GND pins to your power supply. Ensure the voltage is within the specified range (2.7V to 5.5V).

3. Data and Clock:

   • Connect the HX711’s DT (Data) pin to a digital input pin on your microcontroller.
   • Connect the HX711’s SCK (Clock) pin to a digital output pin on your microcontroller.
