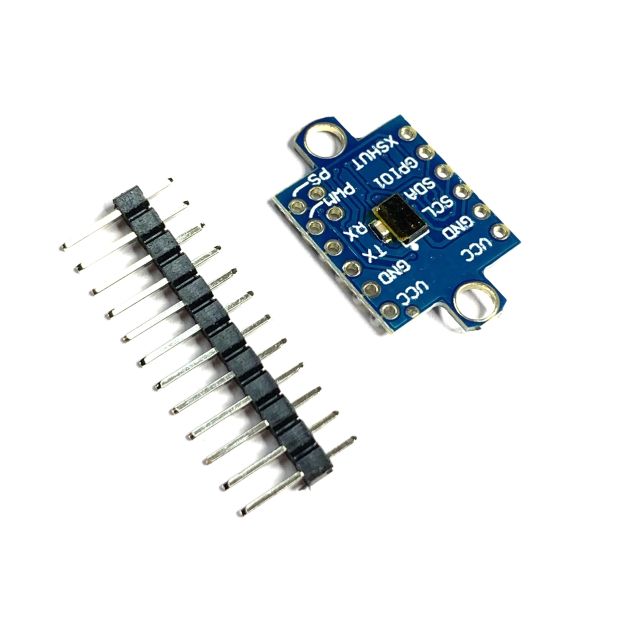

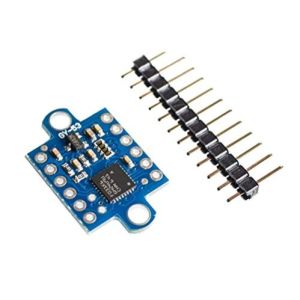

The GY-53 VL53L0X Laser Flight Time LiDAR Sensor is a time-of-flight (ToF) distance sensor based on the VL53L0X sensor module. This sensor is used to measure the distance between itself and an object by calculating the time it takes for a laser pulse to reflect off an object and return to the sensor. The VL53L0X is developed by STMicroelectronics and is popular for applications in robotics, drones, obstacle detection, and other measurement tasks where precise distance measurement is required.

Key Features of the GY-53 VL53L0X LiDAR Sensor:

1. Time-of-Flight (ToF) Technology:

   • The VL53L0X uses a laser light to determine the time it takes for light to travel to an object and back, which enables it to calculate the distance precisely. This method allows for accurate distance measurements even in low-light conditions, unlike ultrasonic sensors, which can be affected by noise or temperature.

2. Measurement Range:

   • The GY-53 VL53L0X sensor has a range of up to 2 meters (2000 mm), though the accuracy and maximum range may vary depending on the reflectivity and size of the object.
   • Typically, the effective range is around 30 cm to 2 meters, but the sensor can work within a range of 50 mm to 2 meters.

3. High Accuracy:

   • The VL53L0X provides a high degree of accuracy, often with an error margin of just a few millimeters under ideal conditions.
   • The sensor features precision ranging, with an accuracy of ±3% at 1 meter and ±10% at longer distances.

4. Fast Measurement Time:

   • The sensor can measure distances in less than 50 milliseconds, making it suitable for fast-moving robots or drones that require quick, real-time measurements.

5. Compact Size:

   • The GY-53 sensor is quite small, which makes it ideal for use in compact systems like robots, drones, or even small handheld devices that need precise distance measurement without taking up too much space.

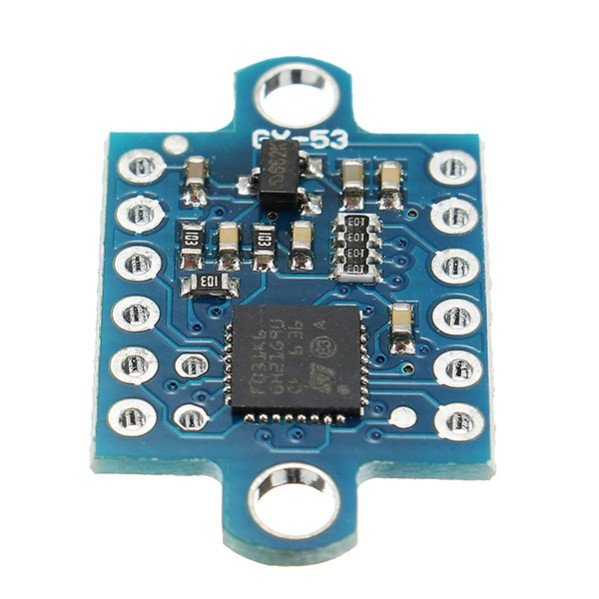

   • The module typically comes in a compact PCB with the sensor mounted on it.

6. Low Power Consumption:

   • The VL53L0X sensor operates with low power consumption, typically drawing around 20 mA in active measurement mode, making it suitable for battery-powered applications like drones or robots.

7. Interface:

   • The GY-53 sensor communicates via I2C (Inter-Integrated Circuit), making it easy to interface with a variety of microcontrollers (like Arduino, Raspberry Pi, and others).
   • The sensor can also be configured through the I2C interface to change the settings for different measurement modes and distances.

8. Built-in Algorithms:

   • The sensor features built-in signal processing algorithms that help it provide reliable measurements, even in challenging environments like low-light or reflective surfaces.

Specifications of the GY-53 VL53L0X Sensor:

Applications of the GY-53 VL53L0X LiDAR Sensor:

1. Robotics:

   • The sensor can be used in autonomous robots for obstacle detection and navigation. It helps the robot detect nearby obstacles, measure distances, and make decisions based on the environment.

2. Drones:

   • Used in drones for altitude measurement and obstacle avoidance. The sensor helps maintain a safe distance from obstacles or the ground when flying.

3. Industrial Automation:

   • The sensor can be integrated into automated systems for distance measurements, such as in warehouse robots or robotic arms for detecting object proximity and enabling precise movements.

4. 3D Scanning:

   • The sensor is suitable for use in 3D scanners, as it provides accurate distance measurements that can be used to create detailed maps or models of an environment.

5. Indoor Navigation:

   • Can be used in indoor positioning systems to help robots or devices move through a space by measuring the distance to surrounding objects or walls.

6. Measuring Objects:

   • The sensor is also useful for distance measurement applications where precise measurement of distances to various objects is needed, such as in automation, product assembly lines, or consumer electronics.

7. LiDAR-based Mapping:

   • Though it has a relatively short range compared to high-end LiDAR systems, the VL53L0X sensor can still be used in small-scale LiDAR-based mapping projects where relatively short-range precision is sufficient.

Advantages of the GY-53 VL53L0X LiDAR Sensor:

• Compact Size: Its small form factor makes it easy to integrate into tight spaces or lightweight devices like drones.
• Fast and Accurate: Provides quick and accurate measurements, which are crucial for real-time applications like obstacle detection and autonomous navigation.
• Low Power: Ideal for battery-powered devices, as it consumes very little power compared to traditional ultrasonic or infrared distance sensors.
• Reliable Performance: The built-in algorithms help ensure that the sensor performs well in a variety of lighting conditions, making it useful in both indoor and outdoor applications.
• Affordable: Compared to traditional LiDAR systems, the GY-53 VL53L0X is relatively inexpensive, making it a good choice for hobbyists, educators, and developers.

How to Interface the GY-53 VL53L0X with Arduino:

1. Wiring:

   • Connect the SCL (Serial Clock) and SDA (Serial Data) pins from the sensor to the I2C pins on the Arduino.
   • Connect the VCC and GND pins of the sensor to the 5V and GND pins on the Arduino.

2. Programming:

   • Use the VL53L0X Arduino library to interface with the sensor. The library provides functions for initializing the sensor, setting measurement modes, and reading distance data.

3. Code Example:

   #include
   #include

   VL53L0X sensor;

   void setup() {
     Serial.begin(9600);
     Wire.begin();
     sensor.init();
     sensor.setTimeout(500);
   }

   void loop() {
     int distance = sensor.readRangeSingleMillimeters();
     if (sensor.timeoutOccurred()) {
       Serial.println("Timeout occurred");
     } else {
       Serial.print("Distance (mm): ");
       Serial.println(distance);
     }
     delay(100);
   }


Conclusion:

The GY-53 VL53L0X Laser Flight Time LiDAR Sensor is an affordable, accurate, and compact distance sensor that uses time-of-flight technology to measure distances. It’s ideal for robotics, drones, automation, and other applications requiring quick and precise distance measurements. With its low power consumption and ease of integration, it's an excellent choice for developers, hobbyists, and educational projects looking to implement LiDAR-based sensing systems.
