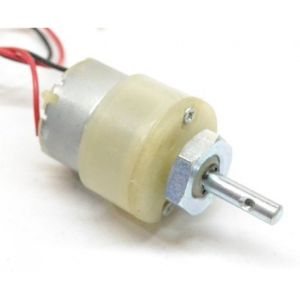

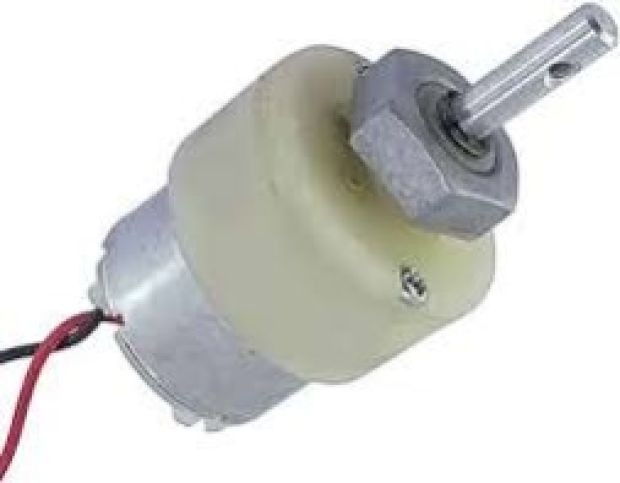

A 100 RPM DC Gear Motor is a type of direct current (DC) motor paired with a gearbox that reduces its speed while increasing its torque. The "100 RPM" refers to the speed at which the motor's output shaft rotates — 100 revolutions per minute (RPM). This motor is typically used in applications requiring very slow, controlled movements with a high torque output.

Key Features of a 100 RPM DC Gear Motor:

1. 100 RPM Speed:

   • The 100 RPM means the motor's output shaft completes 100 rotations per minute. This is a relatively slow speed, which is ideal for applications where precision, controlled movement, and torque are essential.

2. DC Motor:

   • The motor operates on direct current (DC) and can be powered by a DC power source (such as a battery or power adapter). The motor's speed and direction can be controlled easily by adjusting the supply voltage or using a motor controller.

3. Gearbox (Reduction Gear):

   • The motor includes a gearbox that reduces the speed of the motor from a higher RPM to the target 100 RPM. This reduction also increases the torque, allowing the motor to move heavier loads or perform tasks that require more force at slower speeds.

4. Torque:

   • The gear reduction increases the motor’s torque, which is the rotational force it generates. At 100 RPM, the motor will produce more torque than a non-geared motor running at a higher speed.
   • The torque depends on the gear ratio and motor's power rating.

5. Voltage:

   • These motors typically operate at 6V, 12V, or 24V. It’s important to match the motor’s operating voltage with the power supply to avoid potential damage.

6. Size and Shape:

   • DC gear motors are generally compact and available in various sizes. The motor is typically cylindrical or box-shaped with an output shaft at one end, which can be connected to gears, wheels, or other mechanical components.

Applications of a 100 RPM DC Gear Motor:

1. Robotics:

   • Ideal for robotic systems where slow and controlled movement is needed, such as for moving wheels, arms, or actuators at a low speed with higher torque.

2. Automation Systems:

   • Used in conveyor belts, sorting systems, or mechanical actuators that require low-speed, high-torque movements for tasks like lifting, pushing, or rotating objects.

3. Electric Vehicles (Small):

   • Can be used in model cars, robots, RC vehicles, or electric scooters where controlled, slow-speed motion is needed to drive the wheels or other moving parts.

4. Home Appliances:

   • Found in appliances such as fans, vacuum cleaners, or small pumps where slower rotational speeds are required to operate efficiently.

5. Toys:

   • Commonly used in motorized toys, RC vehicles, or mechanical toys that require slow, controlled movements for a realistic or efficient operation.

6. Mechanical Systems:

   • Suitable for DIY projects, gear-driven systems, actuators, or pulleys that require slow and steady rotational movements with sufficient torque.

Advantages of a 100 RPM DC Gear Motor:

• Precise Speed Control: The slow speed (100 RPM) makes it ideal for applications that require fine control over movement, such as in robotics, mechanical systems, and automation.
• Higher Torque: The gearbox increases the torque available at the motor’s output, allowing it to handle heavy loads or perform tasks that require a lot of force.
• Compact and Efficient: These motors are typically compact and energy-efficient, which makes them easy to integrate into small systems or devices where space is limited.
• Easy to Control: Speed and direction can be easily adjusted using motor controllers or voltage regulation, which is beneficial for applications needing precise control.

Example Uses of a 100 RPM DC Gear Motor:

• Robotic Applications: Used for moving robot wheels or actuators that require low-speed, high-torque motions.
• Conveyor Systems: Drives conveyor belts or automated systems that need a slow and steady movement to transport objects.
• Model Cars or Vehicles: Powers wheels or other moving parts of small electric vehicles, such as RC cars or robotic cars.
• Home Automation: Can be used in automatic systems like gates, doors, or window blinds that need slow, controlled movements.
• Toys: Found in motorized toys, mechanical models, or RC vehicles requiring realistic slow-motion and torque.
• Mechanical Projects: Ideal for driving gears, actuators, or pulleys in DIY systems, small machines, or mechanical devices.

How to Choose the Right 100 RPM DC Gear Motor:

• Voltage Compatibility: Ensure that the motor’s voltage (6V, 12V, 24V) matches your power supply.
• Torque and Load: Check the motor's torque rating to ensure that it can handle the load or force required for your application.
• Size and Mounting: Verify that the motor's physical size fits your design, and make sure that it can be easily mounted in your system.
• Control Needs: If you need to adjust the speed or direction, consider a motor controller that allows precise control over the motor's operation.

Conclusion:

A 100 RPM DC Gear Motor is an excellent choice for applications that require precise, slow, and controlled movement with higher torque. It's ideal for robotics, automation, small vehicles, home appliances, and toys. The combination of low speed and high torque makes it versatile for various mechanical tasks that require force at low rotational speeds.
