CS clamps and L clamps are used in robotics and other mechanical applications to secure components, create connections, and provide structural support. Here’s a detailed guide on each type of clamp and how they can be used in robotics:

CS Clamp

Description:

• CS Clamp: Also known as "C-Support" or "C-Clamp," a CS clamp is a versatile clamping device shaped like the letter "C". It provides a fixed point to hold components or structural elements together.

Features:

• Shape: Shaped like the letter "C," with an adjustable screw or bolt mechanism.
• Material: Typically made of metal (steel or aluminum) for strength and durability.
• Adjustability: The screw or bolt allows for adjustments in the clamping force and width.

Applications in Robotics:

1. Mounting Components: Securely mounts sensors, motors, or other components to a robot’s chassis or frame.
2. Structural Support: Provides additional support to robot frames and joints.
3. Temporary Fixtures: Useful for temporarily holding parts in place during assembly or testing.

How to Use:

1. Position the Clamp: Place the clamp around the components or structure that needs to be secured.
2. Adjust the Screw: Turn the screw or bolt to tighten the clamp and hold the parts firmly.
3. Secure the Assembly: Ensure the clamp is tightly secured to avoid movement during operation.

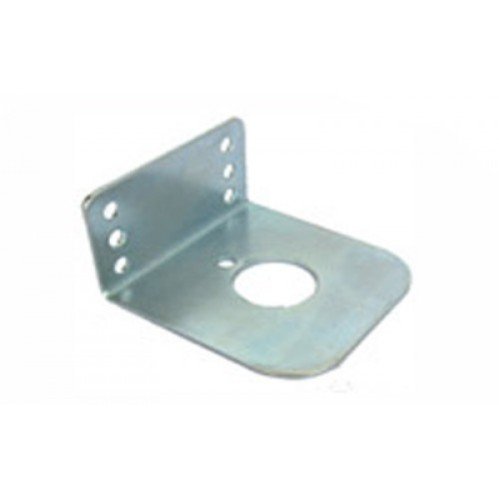

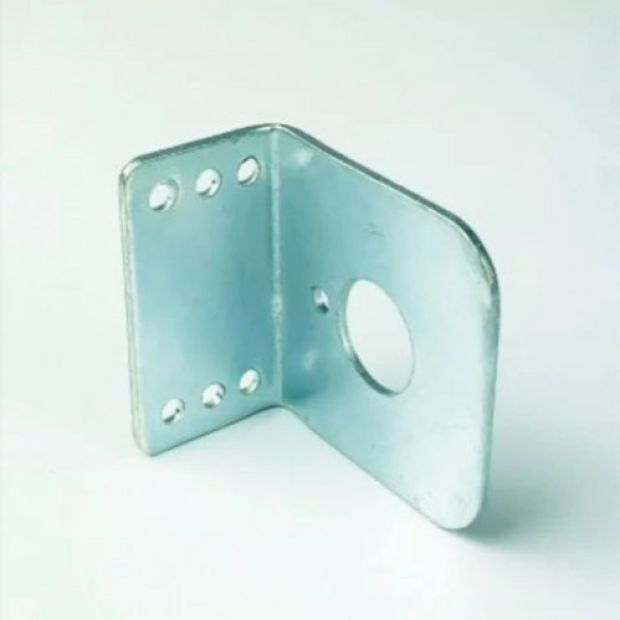

L Clamp

Description:

• L Clamp: Also known as an "L-Bracket" or "L-Support," this clamp has an L-shaped design that provides support and reinforcement at right angles.

Features:

• Shape: L-shaped bracket, typically with multiple holes for screws or bolts.
• Material: Often made from metal (steel or aluminum) or high-strength plastic.
• Versatility: Can be used to connect two pieces at a 90-degree angle or to provide extra support.

Applications in Robotics:

1. Corner Support: Reinforces corners of robotic frames or assemblies, adding stability.
2. Component Mounting: Used to attach components at right angles, such as mounting a motor to a frame.
3. Structural Reinforcement: Provides additional strength to joints and connections in the robot’s frame.

How to Use:

1. Align the Bracket: Position the L bracket where reinforcement or a 90-degree connection is needed.
2. Secure with Screws/Bolts: Insert screws or bolts through the holes of the bracket and tighten them to secure the bracket and connected parts.
3. Check Alignment: Ensure everything is aligned correctly and securely fastened.

Choosing the Right Clamp for Robotics:

1. Material:

   • Metal: Provides strong support and is durable for heavy-duty applications.
   • Plastic: Lightweight and often used for less demanding applications.

2. Size and Dimensions:

   • Fit the Components: Ensure the size of the clamp fits the components or frame sections you are working with.

3. Adjustability:

   • CS Clamps: Look for clamps with sufficient range of adjustment for your application.
   • L Clamps: Ensure the bracket has enough mounting holes for secure attachment.

Example Use Cases:

1. Mounting a Motor:

   • CS Clamp: Use to attach a motor to a robot’s frame securely.
   • L Clamp: Provides support where the motor’s mount connects to the frame.

2. Reinforcing a Robot Frame:

   • CS Clamp: Secure joints and intersections.
   • L Clamp: Strengthen corners and connections between different sections of the frame.

Purchasing:

• Retailers: Available from hardware stores, industrial supply stores, and online retailers like Amazon, eBay, and specialty robotics suppliers.
• Specifications: Check the size, material, and load-bearing capacity to ensure it meets the requirements of your project.

Maintenance Tips:

1. Inspect Regularly: Check clamps for wear, damage, or loosening over time.
2. Tighten as Needed: Ensure clamps are securely fastened to maintain structural integrity.
3. Keep Clean: Regularly clean the clamps and the areas they secure to prevent buildup that might affect performance.

CS and L clamps are versatile tools in robotics, helping to assemble, secure, and reinforce various components of robotic systems efficiently.
