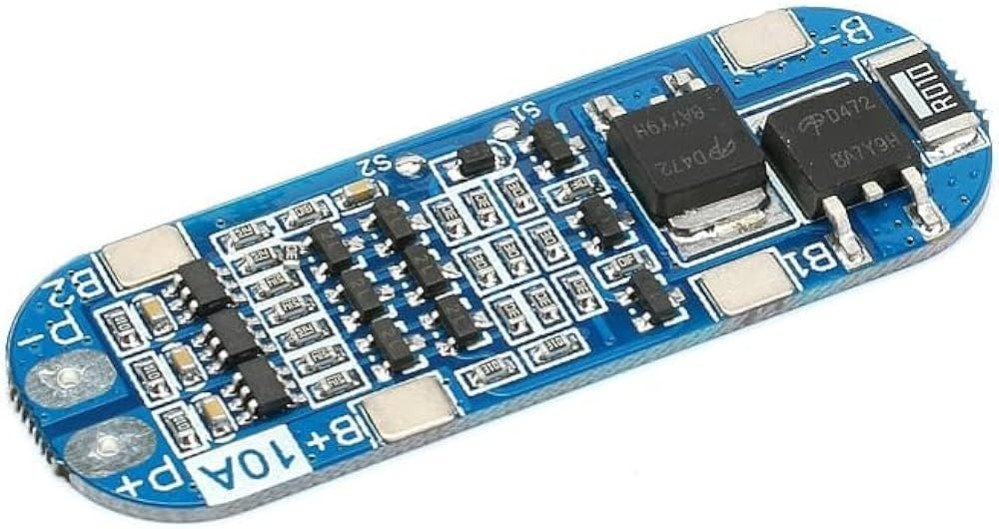

It looks like you're referring to a Battery Management System (BMS) for a 3S (3-cell series) lithium-ion or lithium-polymer battery pack with a 10 Ah (10,000 mAh) capacity and a 12V nominal voltage. Here’s a breakdown of what each part of this description means and how it relates to your BMS selection:

Understanding the Specifications:

1. 3S Configuration:

   • Cells in Series: "3S" means there are three cells connected in series. For lithium-ion or lithium-polymer batteries, this configuration results in a nominal voltage of approximately 11.1V (3.7V per cell) or 12.6V when fully charged (4.2V per cell).

2. 10 Ah Capacity:

   • Capacity: The battery pack has a total capacity of 10 amp-hours (Ah), which is equivalent to 10,000 milliamp-hours (mAh). This indicates the amount of charge the battery can store and deliver.

3. 12V Nominal Voltage:

   • Voltage: The nominal voltage of the battery pack is 12V, which aligns with the 3S configuration (3 x 3.7V = 11.1V nominal, up to 12.6V fully charged).

Battery Management System (BMS) Features:

A BMS for a 3S, 10Ah battery pack typically includes the following features:

1. Overcharge Protection:

   • Prevents the cells from being charged beyond their maximum voltage, typically around 4.2V per cell.

2. Over-discharge Protection:

   • Prevents the cells from discharging below their minimum safe voltage, typically around 3.0V per cell.

3. Overcurrent Protection:

   • Protects the battery pack from excessive current that could cause overheating or damage.

4. Balancing:

   • Ensures that all cells in the series are charged and discharged equally, which helps maintain the health and longevity of the battery pack.

5. Temperature Protection:

   • Monitors the temperature of the battery pack and can disconnect it if it becomes too hot or too cold.

6. Short Circuit Protection:

   • Provides safety by disconnecting the battery in case of a short circuit.

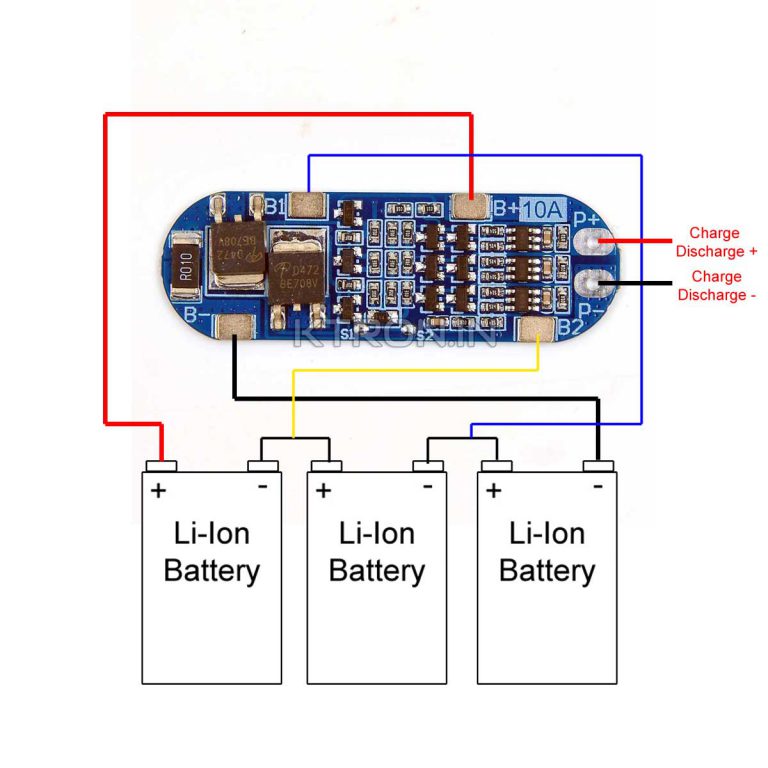

Connecting a BMS to Your Battery Pack:

1. Identify the BMS Terminals:

   • B+ and B-: Battery positive and negative terminals.
   • P+ and P-: Power output terminals to connect to your load.
   • Balance Wires: Wires that connect to each cell junction to monitor and balance cell voltages.

2. Wiring:

   • Connect the battery pack’s positive and negative terminals to the BMS's B+ and B- terminals.
   • Connect the power output terminals of the BMS (P+ and P-) to your load or device.
   • Attach the balance wires from the BMS to the battery pack’s individual cell connections as per the BMS’s wiring diagram.
