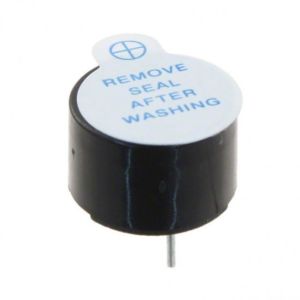

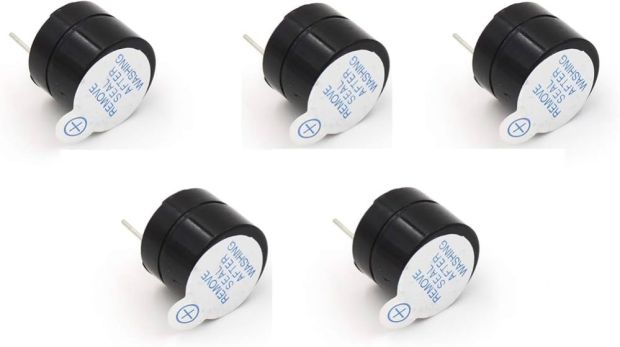

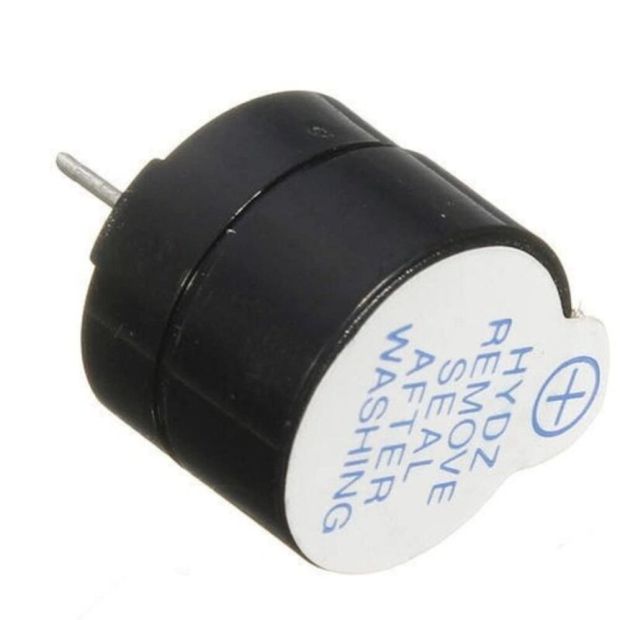

A 5V DC buzzer is a common electronic component used for generating sound alerts or tones in various electronic projects and devices. Here's a detailed overview of a 5V DC buzzer:

5V DC Buzzer Overview:

1. Key Features:

• Voltage Rating:

  • Designed to operate at a DC voltage of 5V.

• Types of Buzzers:

  • Active Buzzer: Contains an internal oscillator that generates sound when powered. It only requires a DC voltage to produce sound.
  • Passive Buzzer: Requires an external oscillating signal to generate sound. It does not produce sound on its own; the tone depends on the frequency of the input signal.

• Sound Output:

  • Emits sound or tone in response to the applied voltage. The sound level and pitch may vary depending on the buzzer's design and specifications.

• Current Consumption:

  • Typically consumes a small amount of current, usually between 20-30 mA, depending on the model.

2. Working Principle:

• Active Buzzer:

  • An internal oscillator generates sound waves when a 5V DC voltage is applied. The buzzer emits a continuous tone or beep as long as power is supplied.

• Passive Buzzer:

  • Requires an external signal to produce sound. The sound generated depends on the frequency of the signal applied. For example, applying a square wave signal at a specific frequency will produce a tone with that frequency.

3. Circuit Connections:

• Power Supply:

  • VCC: Connect the positive terminal of the power supply (5V) to the positive terminal of the buzzer.
  • GND: Connect the negative terminal of the power supply (ground) to the negative terminal of the buzzer.

• Control Signal (for Passive Buzzers):

  • If using a passive buzzer, connect the control signal (oscillating signal) to the buzzer's positive terminal. The frequency and waveform of this signal will determine the sound produced.

4. Applications:

• Alarms:

  • Used in alarm systems for indicating security breaches or emergency conditions.

• Indicators:

  • Provides audio feedback in various electronic devices to indicate status changes, errors, or user interactions.

• Tones and Alerts:

  • Employed in devices that require sound notifications, such as timers, reminders, or digital clocks.

• Prototyping:

  • Commonly used in electronics prototyping and educational projects to provide audible feedback or alerts.

5. Advantages:

• Simplicity:

  • Easy to use with simple connections. Active buzzers require only a DC voltage, while passive buzzers require an oscillating signal.

• Cost-Effective:

  • Generally inexpensive and widely available.

• Versatility:

  • Can be used in a variety of applications for generating sound alerts or tones.

6. Limitations:

• Sound Quality:

  • Active buzzers produce a fixed tone or beep and may not offer customizable sound options. Passive buzzers require external circuitry for tone generation.

• Power Consumption:

  • While minimal, the buzzer still consumes power which should be considered in battery-operated designs.

Example Use Case:

Electronic Alarm System:

• In an electronic alarm system, a 5V DC buzzer is used to provide audible alerts when the system is triggered. An active buzzer can continuously beep when activated, while a passive buzzer can produce different tones based on the input frequency.

Summary:

The 5V DC buzzer is a simple and effective component for generating sound in electronic devices. Whether used as an active buzzer for continuous sound or a passive buzzer for generating tones based on external signals, it offers versatility and ease of integration into various applications. For specific details and wiring instructions, consult the datasheet of the buzzer you are using.
