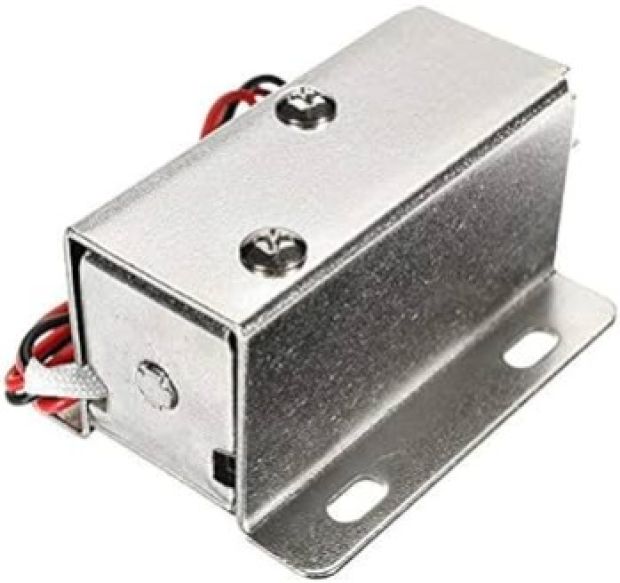

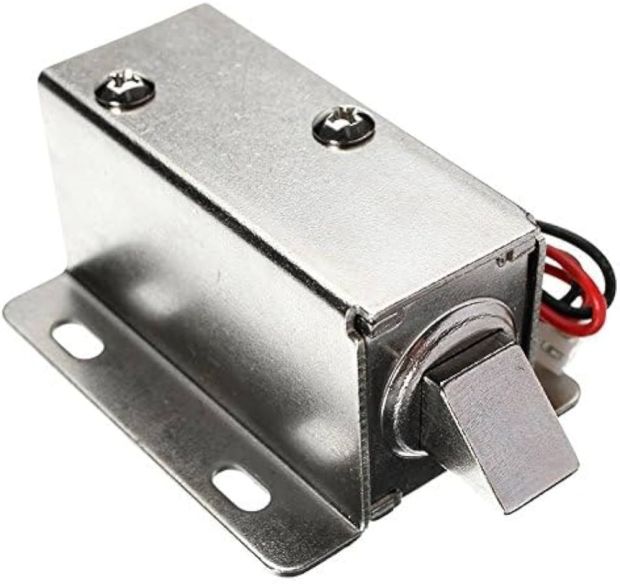

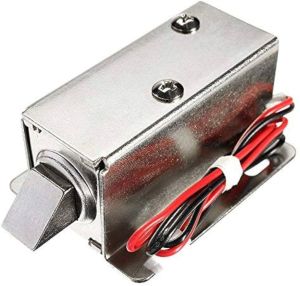

A Small Solenoid Lock 12VDC is an electromagnetic locking mechanism that operates using 12V DC (direct current) power. Solenoid locks are commonly used in security systems, access control, and various automation applications. Here's a detailed explanation of the key features and functionality of a typical small solenoid lock with a 12VDC power supply:

Key Features of a 12VDC Small Solenoid Lock:

1. Voltage:

   • 12VDC: The lock is powered by a 12V direct current (DC) power supply. This is a common voltage for small electronics and is widely used in automotive, security, and home automation systems.

2. Solenoid Mechanism:

   • Solenoid Lock: A solenoid lock uses an electromagnetic solenoid to control the locking and unlocking mechanism. When power is applied (12V DC), the solenoid generates a magnetic field that moves a plunger or bolt, either engaging or disengaging the lock.

3. Locking/Unlocking Action:

   • Locking: When the solenoid is energized, the internal mechanism (typically a pin or bolt) is either pulled or pushed into place, locking the door or mechanism.
   • Unlocking: When the current is removed, the solenoid de-energizes, causing the pin or bolt to return to its original position, unlocking the system.
   • This action can either be a fail-safe (unlocks when power is removed) or fail-secure (remains locked when power is lost).

4. Applications:

   • Access Control: Commonly used in electronic door locks, gate locks, and cabinet locks for secure access. Often integrated with keypads, RFID systems, or even remote control systems.
   • Security Systems: For locking gates, doors, or drawers in a variety of environments, including home automation, offices, safe boxes, or storage rooms.
   • Vehicles: Can be used for car doors or compartment locks in vehicles, especially in automated entry systems.
   • Safety and Privacy: Often used in applications where privacy or restricted access is needed, like in server rooms or confidential areas.

5. Control:

   • The solenoid lock can be controlled by a simple switch, relay, or microcontroller (e.g., Arduino, Raspberry Pi) to apply the 12VDC signal to the solenoid when needed.
   • If used in a security system, it can also be triggered by a keypad, RFID, biometric scanner, or remote control.

6. Size and Design:

   • Compact Size: Small solenoid locks are generally compact and easy to integrate into small enclosures or systems, which makes them ideal for restricted spaces such as cabinets or small doors.
   • Metal or Plastic Housing: Depending on the application, the solenoid lock may be housed in a metallic or plastic enclosure for protection.

How It Works:

1. When the lock is powered (12V DC), the solenoid inside the lock is activated. The solenoid’s coil generates a magnetic field that moves a plunger (metallic pin or rod) either into the locking position or pulls it out to unlock.
2. When power is removed, the lock’s internal mechanism (often a spring or gravity) will return the plunger to its original position, unlocking the system.
3. The lock typically has two states:
   • Locked: The plunger is engaged in the lock position when the solenoid is powered.
   • Unlocked: The plunger retracts to allow the locking mechanism to open once power is removed.

Common Types of Solenoid Locks:

1. Push-Type Solenoid Locks: The solenoid’s action pushes a pin into or out of a locking hole. These are common for sliding doors or drawers.
2. Pull-Type Solenoid Locks: The solenoid pulls a pin or bolt to engage or disengage the lock. These are typically used in automated doors or gate locks.

Advantages of a Small Solenoid Lock 12VDC:

1. Simple Design: Solenoid locks have a relatively simple design and are easy to operate with low-voltage DC signals.
2. Low Power Consumption: Solenoid locks consume minimal power when activated, making them energy efficient, especially when used with a 12VDC system.
3. Reliability: These locks are very reliable when used for frequent locking/unlocking cycles, as they don't rely on mechanical keys or complex mechanisms.
4. Security: Providing an electronic access point, these locks can be integrated into larger access control systems (keypad entry, RFID access, etc.) for enhanced security.

Example Applications for a 12VDC Solenoid Lock:

• Home Security Systems: To lock and unlock doors remotely.
• Gates & Fences: For controlling access to restricted areas.
• Cabinets & Drawers: For securing private documents or sensitive equipment.
• Automated Systems: Used in vending machines, kiosks, or lockers.
• Vehicles: Electric locking systems for trunks, compartments, or gates.

Example Wiring Diagram for Control:

• Power Supply: A 12V DC power supply connected to the solenoid lock.
• Control Switch: A simple push-button switch or relay can be used to apply 12V to the solenoid to lock/unlock.
• Microcontroller (optional): A microcontroller (such as Arduino) can be used to control the lock, triggering it based on a sensor or remote input.

Conclusion:

A 12VDC small solenoid lock is a versatile and reliable device for electronically securing doors, cabinets, gates, or other access points. With its low power consumption and ease of control, it’s commonly used in security systems, automated locks, and access control applications. If you’re planning to integrate this into a project, ensure your 12VDC power source and control method (switch, relay, or microcontroller) are correctly configured.
