A 9V battery connector is used to interface a 9V battery with electronic circuits or devices. These connectors come in various types and configurations depending on your specific needs. Here's a guide to understanding, selecting, and using 9V battery connectors:

Types of 9V Battery Connectors:

1. Snap Connector (Battery Clip):

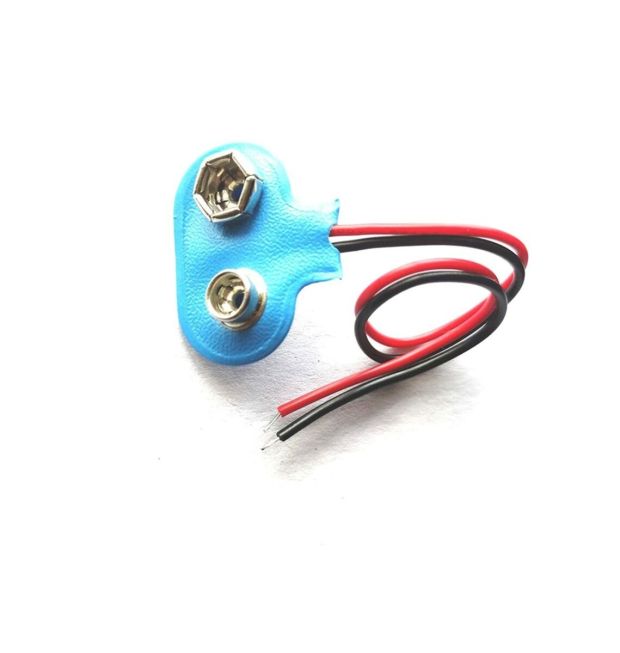

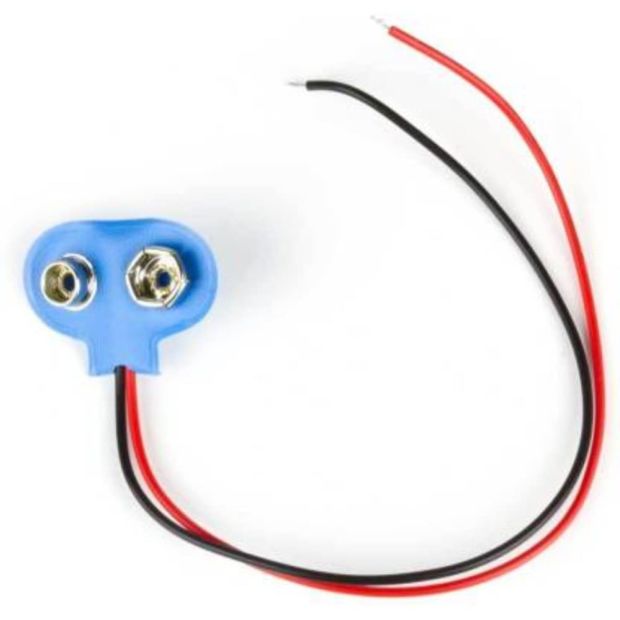

   • Description: The most common type, consisting of two metal clips attached to a plastic or insulated wire. It snaps onto the terminals of the 9V battery.
   • Usage: Ideal for straightforward connections, where you can quickly connect and disconnect the battery.

2. Barrel Jack Connector:

   • Description: A connector that can be used to plug into a barrel jack, often found in many electronics projects.
   • Usage: Provides a secure connection for devices that have a barrel jack input.

3. Terminal Block Connector:

   • Description: A connector with screw terminals that can be used to connect the wires from a 9V battery directly to your circuit.
   • Usage: Useful for a more permanent and secure connection, allowing for easy wiring and modifications.

4. Battery Holder with Wires:

   • Description: A holder that fits the 9V battery and provides wires with connectors attached. Some holders have built-in connectors.
   • Usage: Useful for mounting the battery in a project and providing a stable connection with pre-attached wires.

Selecting the Right Connector:

1. Connector Type:

   • Snap Connector: Choose this for general use and easy battery changes.
   • Barrel Jack Connector: Select this if your project uses a barrel jack input.
   • Terminal Block: Opt for this for secure and customizable wiring.
   • Battery Holder: Ideal if you need to mount the battery and connect it to your circuit securely.

2. Wire Gauge:

   • Consider the Current: Ensure the wires used in the connector are of an appropriate gauge for the current your circuit will draw. For most low-power applications, standard gauge wires (22-18 AWG) are sufficient.

3. Connector Compatibility:

   • Ensure Compatibility: Make sure the connector matches the battery terminals or the device’s input requirements.

How to Use:

1. Connecting a Snap Connector:

   • Snap Onto Battery: Attach the metal clips of the snap connector to the terminals of the 9V battery. The clips should fit securely onto the battery terminals.
   • Wire Connection: Connect the other end of the snap connector to your circuit or device.

2. Using a Barrel Jack Connector:

   • Insert Barrel Plug: Plug the barrel jack connector into the corresponding input jack on your device.
   • Connect Wires: Attach the other end of the connector to the battery or power source.

3. Terminal Block Connector:

   • Wire Attachment: Strip the ends of the wires, insert them into the terminal block, and secure them using the screws on the block.
   • Connect to Circuit: Connect the terminal block to your circuit or device.

4. Using a Battery Holder:

   • Insert Battery: Place the 9V battery into the holder.
   • Connect Wires: Connect the wires from the holder to your circuit or device.

Example Wiring Diagram for a Snap Connector:

Maintenance and Safety Tips:

1. Avoid Short Circuits: Ensure that the connector and wiring are properly insulated to avoid short circuits.
2. Check Connections: Regularly inspect connections for signs of wear or damage.
3. Secure Mounting: If using a battery holder, ensure it is securely mounted to prevent movement and potential disconnection.

Purchasing:

• Retailers: Available from electronics suppliers, hobby stores, online retailers like Amazon, eBay, and specialty electronics shops.
• Specifications: Check the product description to ensure compatibility with your battery and device.

By selecting the appropriate 9V battery connector and using it correctly, you can effectively power your electronic projects and devices while ensuring reliable and safe connections.
