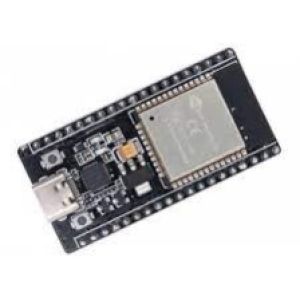

The ESP32-WROOM-32 is a popular module from Espressif that features the ESP32 chip. It’s widely used in various projects due to its powerful features and flexibility. Here’s a brief overview of the 30-pin variant:

Pinout Overview

1. Power Pins:

   • 3V3 (3.3V): Power supply for the module.
   • GND: Ground pins.

2. Digital I/O Pins:

   • GPIO0 - GPIO39: General-purpose I/O pins. Some pins are also used for specific functions like UART, SPI, I2C, PWM, etc.

3. Analog Pins:

   • ADC1/ADC2: Analog-to-digital converters for reading analog signals.

4. Communication Interfaces:

   • UART: Used for serial communication. Default pins are usually GPIO1 (TX) and GPIO3 (RX).
   • SPI: For interfacing with SPI devices. Common pins are GPIO23 (MOSI), GPIO19 (MISO), GPIO18 (SCK), and GPIO5 (CS).
   • I2C: Used for I2C communication. Default pins are GPIO21 (SDA) and GPIO22 (SCL).

5. Flash and Boot Pins:

   • MTDI, MTCK, MTMS, MTDO: These are used for debugging and programming.

6. Special Function Pins:

   • EN: Chip enable pin (active high). Connect to 3.3V to enable the module.
   • IO0: Used to boot the ESP32 into different modes (bootloader or normal). Typically pulled to ground to enter flash mode.

Key Features:

• Dual-core Processor: With a powerful 32-bit Xtensa LX6 microprocessor.
• Wi-Fi and Bluetooth: Built-in Wi-Fi and Bluetooth capabilities.
• Wide Range of I/O: Numerous GPIOs, ADCs, DACs, and communication interfaces.
• Integrated Flash: Typically comes with 4MB of flash memory, though this can vary.

Applications:

• IoT Projects: For building smart devices and sensors.
• Home Automation: Controlling and monitoring home appliances.
• Wearables: Designing smart wearables with Bluetooth functionality.
• Prototyping: Developing and testing new electronic devices.

When working with the ESP32-WROOM-32, make sure to consult the official datasheet and reference materials for detailed pin configurations and specifications to ensure proper usage and connectivity.
