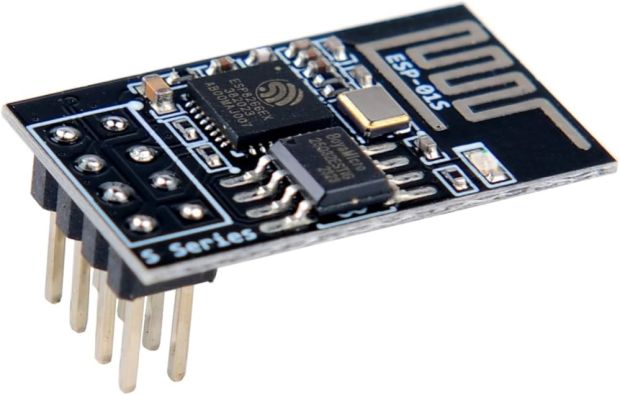

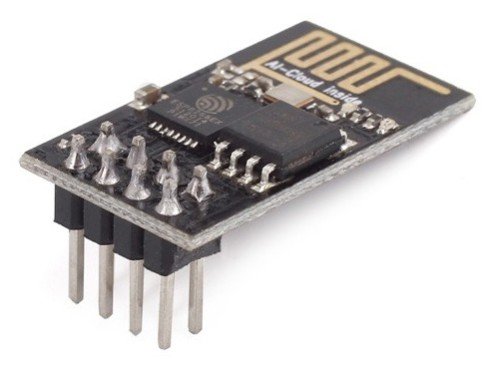

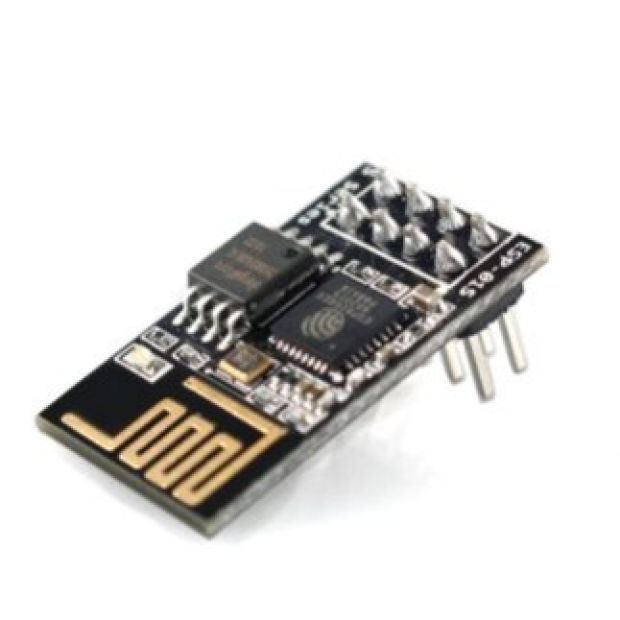

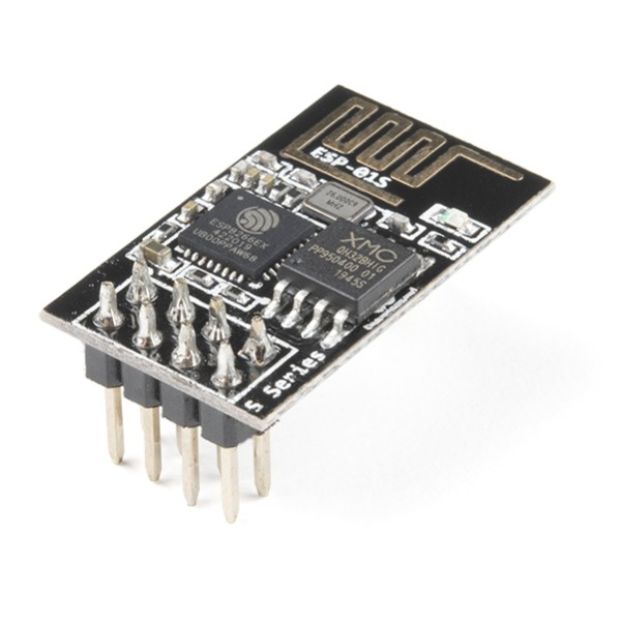

Connecting an ESP-01 module to an Arduino Uno allows you to add WiFi capability to your Arduino projects. Here’s a step-by-step guide on how to do it:

Components Needed:

1. Arduino Uno
2. ESP-01 module
3. USB to TTL serial adapter (or FTDI programmer)
4. Breadboard and jumper wires

Steps to Connect ESP-01 with Arduino Uno:

1. Power Supply:

• ESP-01: The ESP-01 module operates on 3.3V. It's crucial to supply it with a stable 3.3V power source. The Arduino Uno's 3.3V pin can supply power, but it's limited to around 50mA, which might not be sufficient, especially during WiFi transmissions. It's safer to use a separate 3.3V regulated power supply or a voltage regulator module.

2. Serial Communication:

• ESP-01: It communicates via serial (UART). It has two pins for serial communication:

  • RX (Receive)
  • TX (Transmit)

• Arduino Uno: The Arduino Uno also communicates via UART using pins:

  • RX (Receive) - pin 0
  • TX (Transmit) - pin 1

3. Connections:

• ESP-01 to Arduino Uno:

  • ESP-01 RX (GPIO0) to Arduino TX (pin 1) through a voltage divider (3.3V to 5V level shifter):
    • Use a voltage divider (two resistors) to step down the Arduino Uno's 5V TX signal to 3.3V suitable for the ESP-01 RX pin. Connect a 1kΩ resistor between the Arduino TX (pin 1) and the ESP-01 RX, then connect a 2kΩ resistor between the ESP-01 RX and ground.
  • ESP-01 TX (GPIO2) to Arduino RX (pin 0) directly. The Arduino Uno can tolerate 3.3V on its RX pin.
  • ESP-01 VCC to 3.3V power supply
  • ESP-01 GND to GND

• USB to TTL Serial Adapter (or FTDI Programmer):

  • Connect the USB to TTL Serial Adapter to your computer via USB.
  • Adapter TX to Arduino RX (pin 0)
  • Adapter RX to Arduino TX (pin 1)
  • Adapter GND to Arduino GND

Programming the ESP-01:

1. Flashing Firmware:

   • Use the USB to TTL Serial Adapter to upload firmware to the ESP-01. This step requires:
     • Downloading and setting up the appropriate ESP8266 board in the Arduino IDE.
     • Connecting GPIO0 to GND and resetting the ESP-01 to enter flashing mode.

2. Arduino IDE Configuration:

   • Install the ESP8266 board in the Arduino IDE via the Board Manager.
   • Write and upload sketches to the ESP-01 module using the Arduino IDE
