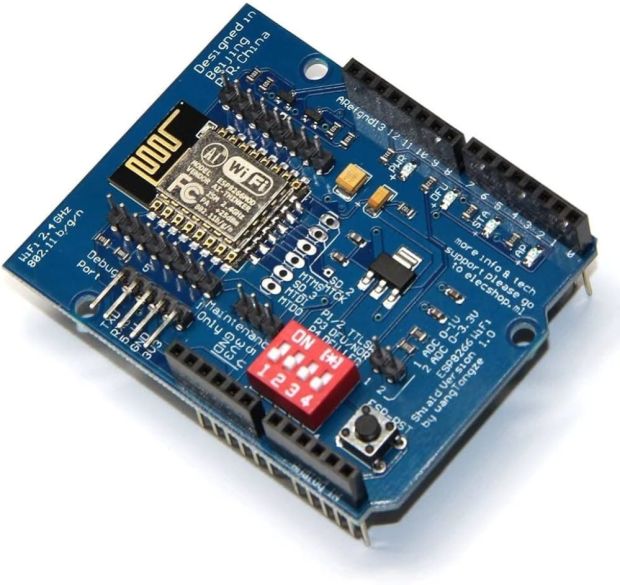

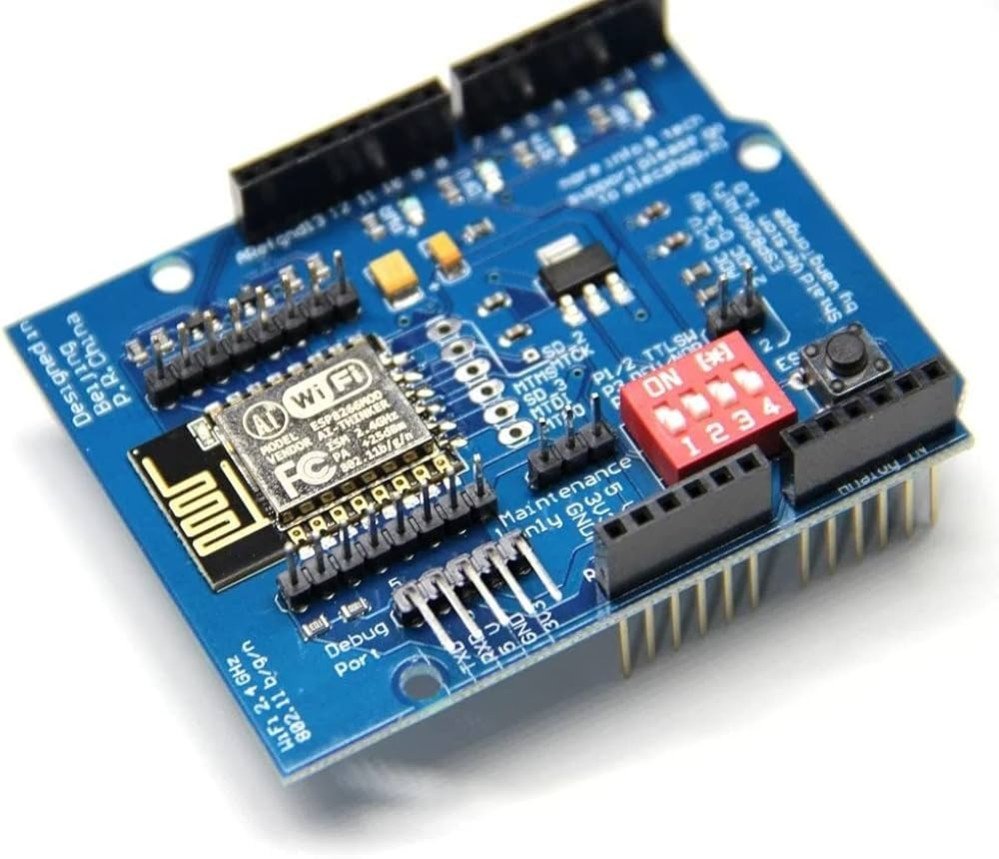

The ESP13 Shield Board ESP8266 Web Server Serial Wi-Fi Expansion Board is an accessory that adds Wi-Fi connectivity to Arduino-based projects by incorporating the ESP8266 Wi-Fi module. The ESP8266 is a low-cost, low-power, and highly versatile Wi-Fi chip that can be used to create web servers, IoT devices, or enable wireless communication for your Arduino projects.

Key Features of the ESP13 Shield Board (ESP8266):

1. ESP8266 Wi-Fi Module:

   • The shield is built around the ESP8266 Wi-Fi chip, which allows your Arduino to connect to Wi-Fi networks and communicate over the internet.
   • The ESP8266 is a self-contained SOC (System on Chip), meaning it integrates both the microcontroller and Wi-Fi radio, making it ideal for IoT applications.

2. Web Server Capability:

   • The shield allows you to create a web server using the ESP8266, which means you can control devices, read sensor data, or serve content through a web browser over a Wi-Fi connection.
   • The ESP8266 can host simple web pages and respond to requests, making it perfect for IoT devices that need a user interface accessible through a smartphone, tablet, or computer.

3. Serial Communication:

   • The shield typically connects to your Arduino via serial communication (usually UART), with the ESP8266 communicating with the Arduino through its TX (transmit) and RX (receive) pins.
   • This setup allows the ESP8266 to handle Wi-Fi communication and the Arduino to manage sensors, actuators, and other tasks, creating a seamless wireless connection for the project.

4. Microcontroller Interface:

   • In some cases, the ESP13 shield is designed to interface with the Arduino’s UART pins (TX, RX), simplifying the connection between the two devices and allowing the Arduino to send and receive data via the ESP8266.

5. Power Supply:

   • The shield often includes onboard voltage regulators and capacitors to ensure the ESP8266 receives a stable 3.3V supply (as the ESP8266 operates at 3.3V, while Arduino typically operates at 5V).
   • The board also provides a way to supply 5V power to the Arduino while regulating the power to the ESP8266, ensuring smooth operation.

6. GPIO Access:

   • The ESP8266 has several General Purpose Input/Output (GPIO) pins that can be used to interface with sensors, actuators, and other devices. Some ESP13 shields expose these GPIO pins for direct control, expanding the number of devices you can interact with via Wi-Fi.

7. Wi-Fi Setup and Security:

   • You can use the shield to connect to a local Wi-Fi network by configuring the SSID (network name) and password. The ESP8266 supports WPA2 security for secure connections to the Wi-Fi network.
   • You can program the ESP8266 to act as either a station (client) or access point (AP), depending on whether you want it to connect to an existing network or create a network for other devices to connect to.

8. I/O Expansion:

   • Many shields come with extra GPIO pins or sensors, allowing you to interface the ESP8266 with a wide variety of devices. This makes the shield a good choice for both simple and complex IoT applications.

9. Software Libraries and Example Code:

   • Libraries for using the ESP8266 in Arduino IDE (such as the ESP8266WiFi library) are available, which makes it easy to get started with Wi-Fi communication and web server setup.
   • Example code is often included, allowing you to create a web server, control devices remotely, or send sensor data over the internet.

Applications of the ESP13 Shield Board (ESP8266):

1. IoT Projects:

   • You can use the ESP13 shield to connect Arduino-based sensors to the cloud or create remote monitoring systems, enabling you to track data (e.g., temperature, humidity) via a web interface.

2. Home Automation:

   • The ESP13 shield can be used to control home appliances, lighting, security systems, or smart devices remotely over the internet. By building a web interface, users can turn devices on/off, set timers, or adjust parameters.

3. Wireless Communication for Arduino:

   • The ESP8266 provides Wi-Fi connectivity, making it easier to build projects that require wireless communication, such as remote control systems, data transmission, and sensor networks.

4. Web Servers:

   • Use the ESP8266 to build web servers that can serve content such as sensor data or configuration settings. This can be useful for creating dashboards, data visualization, or interactive controls through a browser interface.

5. Control and Monitoring:

   • The ESP8266 is often used for remote control and monitoring applications, such as controlling devices over a network or collecting data from sensors remotely and displaying it on a web page.

Example Use Case: Web Server for Controlling an LED

Here’s an example of how to use the ESP13 Shield to create a basic web server that allows you to control an LED from a web browser.

Components:

• Arduino UNO or Arduino Nano
• ESP13 Shield (ESP8266)
• LED and resistor
•

Code for Arduino (using ESP8266 to create a web server):

#include
#include

// Define the pin for LED
const int ledPin = 13;

// Set Wi-Fi credentials
const char *ssid = "your-SSID";          // Replace with your Wi-Fi network name
const char *password = "your-password";  // Replace with your Wi-Fi password

// Create a software serial for communication between Arduino and ESP8266
SoftwareSerial espSerial(2, 3);  // RX, TX pins
WiFiServer server(80);  // Web server on port 80

void setup() {
  // Initialize serial communication
  Serial.begin(9600);
  espSerial.begin(9600);  // ESP8266 baud rate

  // Connect to Wi-Fi
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
    delay(1000);
    Serial.println("Connecting to WiFi...");
  }
  Serial.println("Connected to WiFi");

  // Start the web server
  server.begin();
  pinMode(ledPin, OUTPUT);  // Set LED pin as output
}

void loop() {
  // Check for incoming client connections
  WiFiClient client = server.available();
  if (client) {
    String currentLine = "";  // String to hold the HTTP request

    // Read the HTTP request from the client
    while (client.connected()) {
      if (client.available()) {
        char c = client.read();
        Serial.write(c);
        currentLine += c;

        // If the end of the request is reached (blank line), send a response
        if (c == '
' && currentLine.length() == 0) {
          // Send HTTP headers
          client.println("HTTP/1.1 200 OK");
          client.println("Content-Type: text/html");
          client.println("Connection: close");
          client.println();

          // Send the web page content
          client.println("");
          client.println("

LED Control

");
          client.println("

Turn LED ON

");
          client.println("

Turn LED OFF

");
          client.println("");

          // Check the request for controlling the LED
          if (currentLine.indexOf("GET /ON") >= 0) {
            digitalWrite(ledPin, HIGH);  // Turn LED ON
          } else if (currentLine.indexOf("GET /OFF") >= 0) {
            digitalWrite(ledPin, LOW);  // Turn LED OFF
          }

          break;
        } else {
          currentLine = "";
        }
      }
    }
    client.stop();  // Close the connection
  }
}

Explanation:

• This example creates a simple web server using the ESP8266 to control an LED.
• The Arduino acts as a bridge, controlling the LED based on requests sent through a web browser.
• When a user accesses the web page, they can turn the LED on or off by clicking the corresponding buttons.

Conclusion:

The ESP13 Shield Board (ESP8266 Web Server Serial Wi-Fi Expansion Board) is a powerful tool for adding Wi-Fi connectivity to Arduino projects. It enables the creation of web servers, IoT applications, and remote control systems, all through the convenient Wi-Fi capabilities of the ESP8266 module. Whether you're building home automation systems, remote monitoring devices, or wireless communication solutions, the ESP8266 and this shield are versatile and cost-effective components for your projects.
