ESP 32 12E CP2102 8266
This module is an Amica variant of NodeMCU which is narrower than the LoLin variant, suitable to be directly used on breadboard. Amica variant of NodeMCU uses CP2102 serial interface chip, while LoLin variant uses CH340G serial interface chip. Both perform very reliably.
₹ 231 ₹299
299
| Made In : | India |
The CP2102 is a USB-to-UART bridge controller from Silicon Labs, commonly used to provide USB connectivity to devices with serial interfaces, such as microcontrollers. When it comes to the NodeMCU, it’s a popular development board based on the ESP8266 Wi-Fi module, and it often uses a CP2102 chip for USB-to-serial communication.
Here's a brief overview of how the CP2102 relates to the NodeMCU:
-
Functionality: The CP2102 converts USB signals to UART (serial) signals, allowing the NodeMCU to be connected to a computer for programming and serial communication.
-
Driver Installation: To use the CP2102 with your NodeMCU, you’ll need to install the appropriate drivers for your operating system. Silicon Labs provides drivers for Windows, macOS, and Linux on their website.
-
Connecting the NodeMCU: When you connect the NodeMCU to your computer via a USB cable, the CP2102 chip handles the communication between the ESP8266 module on the NodeMCU and your computer.
-
Programming and Debugging: The CP2102 chip facilitates uploading code to the NodeMCU and allows for serial debugging. You can use tools like the Arduino IDE or PlatformIO to upload code and monitor serial output.
-

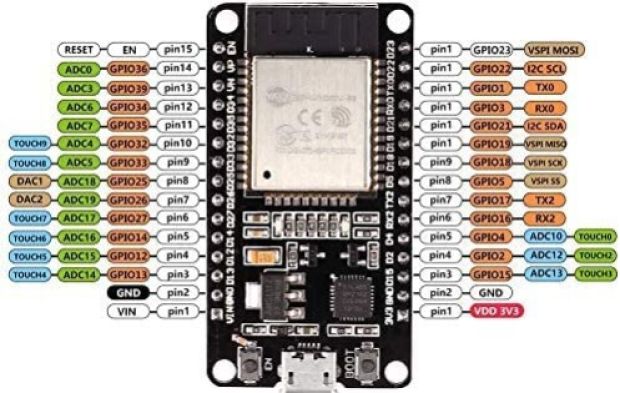

Pinout: On the NodeMCU board, the CP2102 is integrated into the design, so you don’t need to worry about its specific pins. The board itself provides access to UART pins and USB connectivity.
If you’re having issues with your NodeMCU and the CP2102, it might involve driver problems, USB cable issues, or incorrect board settings in your development environment. Ensuring that you have the latest drivers and checking connections and settings can often resolve these problems.
int ledPin = 2; // Pin where the LED is connected
int buttonPin = 0; // Pin where the button is connected
int buttonState = 0; // Variable to store button state
void setup() {
pinMode(ledPin, OUTPUT); // Initialize LED pin as output
pinMode(buttonPin, INPUT); // Initialize button pin as input
}
void loop() {
buttonState = digitalRead(buttonPin); // Read the state of the button
if (buttonState == HIGH) { // If the button is pressed
digitalWrite(ledPin, HIGH); // Turn the LED on
} else { // If the button is not pressed
digitalWrite(ledPin, LOW); // Turn the LED off
}
}
