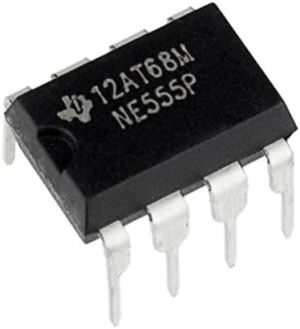

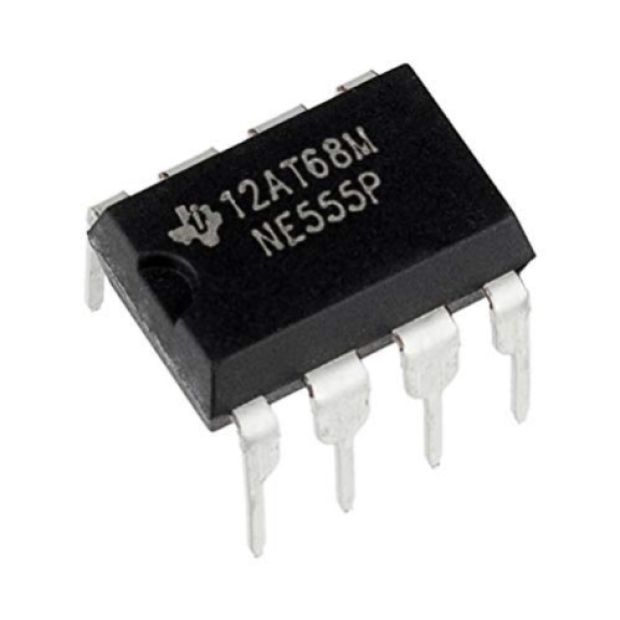

The NE555 is a highly popular timing IC (Integrated Circuit) used in a wide range of applications for generating precise time delays, oscillations, and pulse generation. It is commonly referred to as the 555 timer and is found in both analog and digital circuits due to its versatility, ease of use, and low cost.

Key Features of the NE555 Timer IC:

1. Mode of Operation:

   • It can operate in different modes, including monostable mode (one-shot pulse) and astable mode (oscillator for square wave generation).
   • In monostable mode, the 555 timer generates a single output pulse of a specific duration when triggered.
   • In astable mode, it continuously generates a square wave signal with a specified frequency and duty cycle.

2. Power Supply: The NE555 operates on a 5V to 15V supply voltage, making it suitable for use in a wide range of applications.

3. Output Current: The output current capability is around 200mA, making it suitable for driving low-power loads such as LEDs or triggering transistors.

4. Precision: The NE555 provides a high degree of timing precision due to external resistors and capacitors, with a wide range of timing intervals (from microseconds to hours).

5. Low Cost: It is widely available and inexpensive, which contributes to its popularity in educational and hobbyist projects.

6. Temperature Stability: It is relatively stable and works well in a range of temperatures, though precision may degrade slightly outside of typical operating conditions (0°C to 70°C).

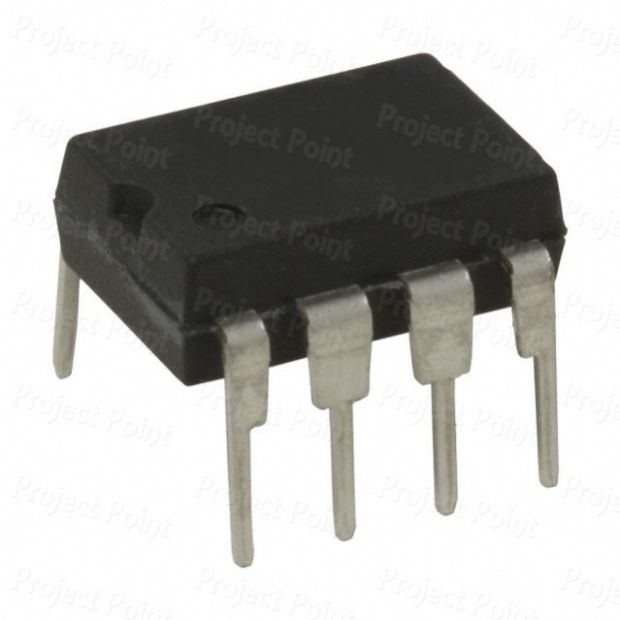

Pin Configuration (8-Pin Package):

1. Pin 1 (Ground): This pin is connected to the negative terminal of the power supply.
2. Pin 2 (Trigger): A voltage applied to this pin triggers the output to change state (in monostable mode, it triggers the pulse).
3. Pin 3 (Output): This is the output pin that produces the waveform (pulse or square wave).
4. Pin 4 (Reset): This pin is used to reset the timer. It is active low, meaning it resets the output when it is pulled low. If not used, it is typically tied high (to the positive voltage).
5. Pin 5 (Control Voltage): This pin allows you to control the threshold voltage, but it is typically left unconnected (or connected to a capacitor for noise reduction).
6. Pin 6 (Threshold): When the voltage at this pin exceeds 2/3 of the supply voltage, it resets the flip-flop and changes the output state.
7. Pin 7 (Discharge): This pin discharges the timing capacitor in astable mode and helps control timing behavior.
8. Pin 8 (VCC): This pin is connected to the positive terminal of the power supply.

Operating Modes of the NE555:

1. Monostable Mode (One-Shot Pulse):

In this mode, the 555 timer generates a single output pulse when triggered. The pulse duration (how long the output stays high) is determined by an external resistor and capacitor.

• Triggering: The output is triggered by applying a low voltage (below 1/3 of the supply voltage) to the Trigger pin (Pin 2).
• Pulse Duration: The duration of the output pulse is determined by the equation: t=1.1×R×Ct = 1.1 imes R imes C where R is the external resistor and C is the external capacitor. The pulse duration can be controlled by adjusting the values of R and C.

2. Astable Mode (Oscillator Mode):

In astable mode, the 555 timer continuously generates a square wave at its output. It does not require an external trigger to oscillate.

• Frequency and Duty Cycle: The frequency and duty cycle of the square wave are determined by two external resistors and one capacitor. The equation for the frequency is:

  f=1.44(R1+2×R2)×Cf = rac{1.44}{(R1 + 2 imes R2) imes C}

  where R1, R2, and C are external components.

  • Duty Cycle: The duty cycle, which defines the percentage of time the output is high, can be calculated as:
  Duty Cycle=R1+R2R1+2×R2Duty Cycle = rac{R1 + R2}{R1 + 2 imes R2}

  In many cases, the duty cycle is not exactly 50% unless R1 = R2.

Applications of the NE555 Timer:

1. Pulse Generation:

   • Generating single pulses (monostable mode) or continuous pulses (astable mode) for controlling various devices.

2. PWM (Pulse Width Modulation):

   • Used to control the brightness of LEDs, speed of motors, or power to various loads through the generation of PWM signals.

3. Oscillator Circuits:

   • Used in audio signal generators, clock generation for digital circuits, and as a basic waveform generator.

4. Delay Circuits:

   • Used in circuits requiring precise time delays (e.g., triggering a relay after a delay, or time delay circuits in alarms or timers).

5. Tone Generation:

   • In audio applications, the NE555 can generate tones for alarms, sirens, or sound effects.

6. Frequency Dividers:

   • In conjunction with other components, the NE555 can be used to divide frequencies or generate low-frequency square waves.

7. Pulse Width Modulation (PWM):

   • It is also used for controlling the width of pulses in power control applications like motor control.

Advantages of the NE555 Timer:

• Versatile: Can be used in a wide range of applications for timing, pulse generation, oscillation, and frequency control.
• Stable: Provides stable and predictable timing intervals with minimal drift.
• Low Power Consumption: Operates with low power, making it ideal for battery-powered applications.
• Easy to Use: Simple to interface with other components, and configuration requires just a few passive components (resistors and capacitors).

Conclusion:

The NE555 timer IC is one of the most widely used and versatile ICs in electronics. It can function as a timer, pulse generator, or oscillator, and its flexibility allows it to be used in countless applications, from basic timing tasks to complex waveform generation. It is simple to use and can be easily integrated into both analog and digital circuits. Whether for generating a precise time delay, producing a PWM signal, or creating an oscillator, the NE555 offers a highly reliable solution for many electronic designs.
