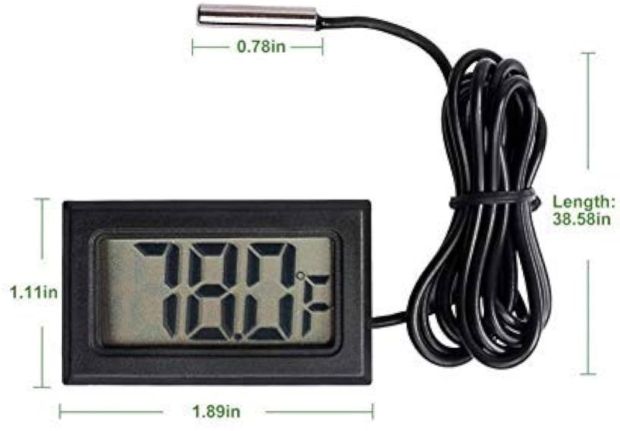

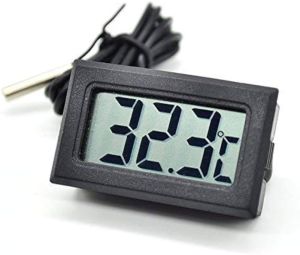

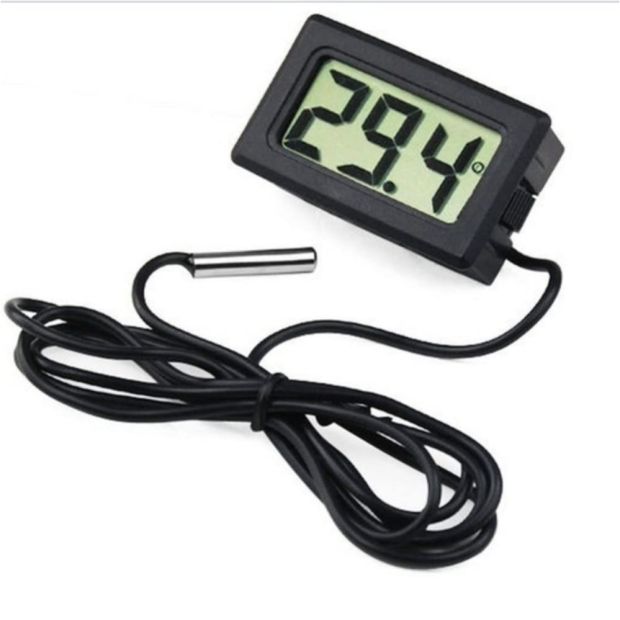

A mini LCD digital thermometer sensor is a compact device used for measuring temperature, often featuring a digital display for easy reading. Here’s an overview of its features, specifications, and applications:

Key Features

• Digital Display: Typically includes an LCD screen that shows the temperature in Celsius or Fahrenheit.
• Sensor Type: May use thermistors, thermocouples, or digital temperature sensors like the DS18B20 or LM35.
• Compact Design: Easy to integrate into various projects due to its small size.
• Low Power Consumption: Suitable for battery-operated applications.

Common Specifications

• Temperature Range: Usually from -50°C to +150°C or similar, depending on the sensor.
• Accuracy: Typically ±1°C or better, depending on the sensor used.
• Power Supply: Often powered by batteries or a small DC voltage (like 5V).

Wiring and Connections

If you are working with a typical digital thermometer module, the wiring might look like this (example using a common temperature sensor):

1. Power Connections:

   • VCC: Connect to a power source (usually 3.3V or 5V).
   • GND: Connect to ground.

2. Data Output:

   • Connect the data output pin to a digital input pin on your microcontroller (if applicable)
